How Is Aluminum Made? From Bauxite and Alumina to Sheet, Plate and Industrial Products

How Is Aluminum Made? From Bauxite and Alumina to Sheet, Plate and Industrial Products

Aluminum production starts with bauxite ore and ends with a wide range of industrial products. The main stages are bauxite refining, alumina production, electrolytic smelting, casting, alloying and downstream processing.

Bauxite is first refined into alumina, or aluminum oxide. Alumina is then converted into metallic aluminum through the Hall-Héroult electrolytic process. The molten metal is cast into slabs, billets or ingots and later processed into sheet, plate, bar, pipe, tube, coil, profiles and forged parts.

For industrial buyers, the final product is defined not only by the aluminum alloy. Temper, product form, dimensions, tolerance, surface condition and inspection requirements are also important.

Aluminum Production Flow

Stage	Input	Output	Industrial Purpose
Mining	Bauxite ore	Prepared bauxite	Provides the aluminum-bearing raw material
Refining	Bauxite	Alumina, Al₂O₃	Creates feedstock for aluminum smelting
Smelting	Alumina	Primary aluminum	Produces metallic aluminum
Casting	Molten aluminum	Slab, billet or ingot	Prepares metal for downstream processing
Rolling	Slab	Sheet, plate and coil	Produces flat-rolled aluminum products
Extrusion	Billet	Profiles, bars and certain tube products	Produces long products with controlled cross-sections
Forging / Machining	Billet, bar or forging stock	Engineering components	Produces higher-load or precision parts

1. Bauxite Is Refined into Alumina

Bauxite contains aluminum-bearing minerals together with iron oxides, silica and other constituents. Before metallic aluminum can be produced, the aluminum-bearing portion must first be separated from these impurities.

The Bayer process is the main industrial refining route. Bauxite is crushed and treated with hot sodium hydroxide solution. Aluminum-bearing compounds dissolve, while many insoluble impurities remain as solid residue.

The residue is removed from the aluminum-rich solution. Aluminum hydroxide is then precipitated and calcined to produce alumina, Al₂O₃.

This stage is important enough to deserve its own detailed explanation. For the full refining process, read our How Is Alumina Produced? Bayer Process Guide.

2. Alumina Is Converted into Primary Aluminum

Alumina is not metallic aluminum. It must undergo electrolytic reduction before the metal can be produced.

In the Hall-Héroult process, alumina is dissolved in a molten fluoride-based electrolyte. Electric current passes through the electrolytic cell, and molten aluminum forms at the cathode.

Carbon anodes are used in the cell. Oxygen released from the alumina reacts with the carbon anodes, so the process mainly produces carbon dioxide rather than collecting free oxygen gas.

The molten aluminum collects at the bottom of the cell and is removed for casting. At this point, the material is primary aluminum, but it has not yet been converted into the specific alloy and product form ordered by industrial buyers.

3. Molten Aluminum Is Alloyed and Cast

Primary aluminum can be used at high purity, but most engineering applications require aluminum alloys with controlled strength, corrosion resistance, formability or machining performance.

Elements such as magnesium, silicon, manganese, copper and zinc can be added in controlled amounts. The resulting chemistry determines the alloy series and plays an important role in the final material properties.

The molten metal is then cast into forms suited to the next production stage.

Cast Form	Typical Next Process	Typical Final Products
Slab	Rolling	Sheet, plate and coil
Billet	Extrusion or further processing	Profiles, bars and tubular products
Ingot / Forging Stock	Remelting, forging or machining	Forged and engineered components

4. Aluminum Alloy Series Are Created for Different Applications

Commercial aluminum is not one single material. Different alloy families are produced for different combinations of strength, corrosion resistance and fabrication performance.

Alloy Series	General Alloy Direction	Typical Product Use
1xxx	High aluminum content	Sheet, foil and conductivity-related applications
2xxx	Aluminum-copper alloys with higher strength	Plate, bar and aerospace-related parts
3xxx	Aluminum-manganese alloys with good formability	Sheet and coil
5xxx	Aluminum-magnesium alloys with good corrosion resistance	Marine sheet, plate and fabricated structures
6xxx	Aluminum-magnesium-silicon alloys	Sheet, plate, bars, profiles and structural products
7xxx	High-strength aluminum-zinc alloys	High-strength plate, bar and engineering components

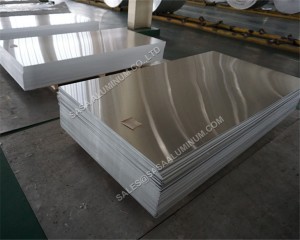

5. Rolling Produces Aluminum Sheet, Plate and Coil

Large aluminum slabs are reheated and passed through rolling mills to reduce thickness. Hot rolling performs the main reduction, while cold rolling can provide tighter dimensional control, thinner gauges and different surface conditions.

The final product can be supplied as sheet, plate or coil depending on thickness, width, temper and customer requirements. Heat treatment or strain hardening may be used to create the required temper after or between rolling stages.

This production route is why industrial buyers should specify more than the alloy number. A 5052-H32 sheet and a 6061-T6 plate have different production routes, mechanical properties and intended uses.

6. Extrusion Produces Profiles and Other Long Products

Extrusion starts with a cylindrical aluminum billet. The heated billet is pushed through a die to create a continuous profile with a controlled cross-section.

This process is widely used for 6xxx-series alloys because they provide a useful combination of extrusion performance, strength, corrosion resistance and surface quality.

After extrusion, products may be stretched, cut, heat treated, machined or surface finished. The final condition depends on the alloy, temper and customer specification.

7. Forging and Machining Produce Engineering Components

Some industrial components need higher mechanical performance or tighter dimensional control than standard rolled or extruded products can provide.

Forging shapes the aluminum under compressive force and can be used for load-bearing engineering parts. Bar, billet and forged stock can then be machined to the final dimensions required by the drawing.

For these orders, buyers should specify the alloy, temper or heat-treatment condition, machining allowance, dimensional tolerance and inspection requirements before production.

Primary Aluminum and Recycled Aluminum

Aluminum scrap can be sorted, remelted and returned to the production cycle. This secondary production route reduces the need for new primary aluminum, but chemistry control remains important.

For specified alloy products, recycled metal cannot simply be mixed without control. The final melt must still meet the required chemical composition and product standard.

For industrial buyers, the key issue is therefore material compliance rather than whether a simple product description says “primary” or “recycled.” The required alloy chemistry, temper, mechanical properties and certificate requirements should be clearly defined.

What Industrial Buyers Should Specify

The aluminum production process creates many possible alloys and product forms. A clear RFQ helps the supplier identify the correct production route and quote a bulk order more accurately.

• Aluminum alloy

• Temper

• Product form: sheet, plate, bar, pipe, tube, coil, profile or forging

• Thickness, diameter or section dimensions

• Width and length where applicable

• Total quantity or project weight

• ASTM, EN, AMS or project standard

• Dimensional tolerance

• Surface condition or treatment

• Inspection and certificate requirements

FAQ

How is aluminum made from bauxite?

Bauxite is first refined into alumina through the Bayer process. Alumina is then converted into metallic aluminum through Hall-Héroult electrolysis. The molten aluminum is cast and processed into commercial products.

What is the difference between alumina and aluminum?

Alumina is aluminum oxide, Al₂O₃. Aluminum is the metallic element Al. Alumina is an intermediate raw material that must be reduced electrolytically before metallic aluminum is produced.

What is the Hall-Héroult process?

The Hall-Héroult process is the main industrial method used to convert alumina into primary aluminum. Alumina is dissolved in a molten electrolyte and reduced by electric current.

How is aluminum sheet made?

Aluminum sheet is generally produced from cast slabs through hot rolling and, where required, cold rolling. Further heat treatment, strain hardening and finishing create the required temper and surface condition.

How is aluminum bar or profile made?

Many aluminum bars and profiles are produced from billets through extrusion. Other bars may use rolling, drawing, forging or machining routes depending on the alloy and product specification.

Conclusion

Aluminum production is a multi-stage process. Bauxite is refined into alumina, alumina is reduced into metallic aluminum, and the molten metal is cast into forms suitable for downstream manufacturing.

Rolling, extrusion, forging and machining then convert the metal into commercial products such as sheet, plate, bar, pipe, profiles and engineered components. Alloying and temper control determine the final material properties.

For bulk industrial purchasing, the most important step is to define the final product accurately. Alloy, temper, product form, dimensions, standard, total quantity and inspection requirements should be confirmed together.
