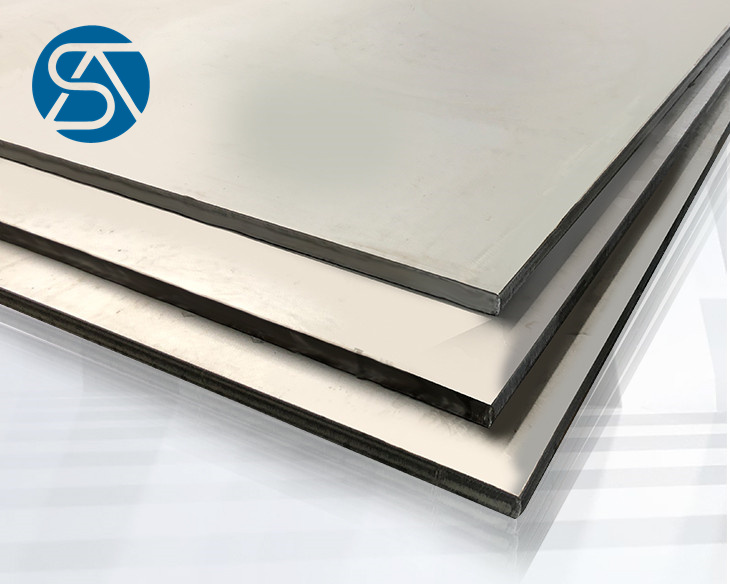

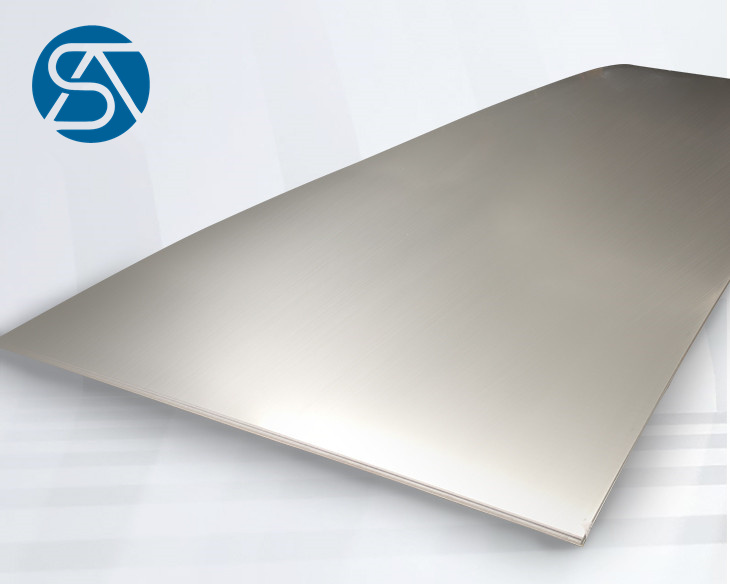

5A06 Aluminum Sheet
| Specifications of 5A06 Aluminum Plate: |
| Alloy | 5A05,5A06,5A03,5A02,etc. |
| Temper | F, O, H12, H16, H19, H28, H32, H34, H36, H38, H111, H112, H114, H116, H321 |
| Thickness | 3.0mm-200mm |
| Width | 500-2600mm |
| Length | to clients’ requirement |
| Certificate of Classification | Classification Society (CCS), American Classification Society (ABS), French Classification Society (BV), British Classification Society (LR) Classification society certification. |
| Finish | PVDF, POLYESTER(PE) |
| Surface | Bright, polished, hair line, brush, sand blast, checkered, embossed, etching, etc. |
5A06 aluminum sheet is a high-strength, corrosion-resistant aluminum-magnesium alloy known for its excellent weldability and durability. As a marine-grade alloy, 5A06 offers superior resistance to seawater corrosion, making it an ideal choice for shipbuilding, offshore structures, and pressure vessels. It also performs exceptionally well in low-temperature environments and is commonly used in aerospace, transportation, and military applications.This alloy provides a perfect combination of strength, ductility, and impact resistance, especially suitable for structural parts that require high reliability and long service life.
| 5A06 Aluminum Plate Chemical Composition: |
| Al | Mg | Mn | Cr | Fe | Si | Cu | Zn | Ti |
| Bal | 5.8-6.8 | 0.5-0.8 | 0.05-0.25 | 0.4 | 0.4 | 0.1 | 0.2 | 0.02-0.1 |
| 5A06 Aluminum Plate Mechanical Properties: |
| Tensile Strength | Yield Strength | Elongation | Hardress |
| 315 MPa | 155 MPa | 16% | 85HB |
| Features of 5A06 aluminum sheet : |
1.High strength aluminum-magnesium alloy with excellent mechanical properties
2.Superior corrosion resistance, especially in marine and industrial environments
3.Excellent weldability and machinability
4.High fatigue resistance and impact toughness
5.Good performance under low temperatures
6.Smooth surface, good flatness, and easy to form or bend
7.Available in various tempers: O, H112, H32, H34
| Applications of 5A06 Aluminum Plate : |
• Marine industry: hulls, decks, and ship superstructures
• Aerospace: fuel tanks, internal structural components
• Rail and transportation: floor panels, structural frames
• Pressure vessels: tanks, pipelines, chemical containers
• Military: armored components and high-strength structural parts
• Welding fabrication: parts requiring strong welded joints with corrosion resistance
| Quality Assurance (including both Destructive and Non-Destructive) : |
1. Visual Dimension Test
2. Mechanical examining like tensile, Elongation and reduction of area.
3. Ultrasonic test
4. Chemical examination analysis
5. Hardness test
6. Pitting protection test
7. Penetrant Test
8. Intergranular Corrosion Testing
9. Impact analysis
10. Metallography Experimental Test
| Why Choose Us ? |
1. You can get the perfect material according to your requirement at the least possible price.
2. We also offer Reworks, FOB, CFR, CIF, and door to door delivery prices. We suggest you to do deal for shipping which will be quite economical.
3. The materials we provide are completely verifiable, right from raw material test certificate to the final dimensional statement.(Reports will show on requirement)
4. We guarantee to give a response within 24hours(usually in the same hour)
5. Provide SGS TUV report.
6. We are fully dedicated to our customers. If it will not possible to meet your requirements after examining all options, we will not mislead you by making false promises which will create good customer relations.
7.Provide one-stop service.
| Aluminum Sheet Manufacturers Packing: |
1. Packing is quite important especially in a case of international shipments in which consignment pass through various channels to reach the ultimate destination, so we put special concern regarding packaging.
2. Sasa aluminum’s pack our goods in numerous ways based on the products. We pack our products in multiple ways, such as
