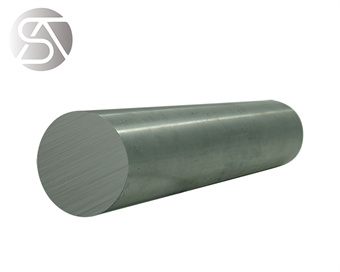

6061 T6 Aluminium Round Bar

Short Description:


  • Standard: ASTM B221, GB/T3191-2010 GB/T6892-2006
  • Diameter: 3mm to 700mm
  • Temper: T6
  • Grade: 2024, 2A12,6061, 7075
  • Product Detail

    FAQ

    Product Tags

    6061 Aluminum Round Bar is an extruded aluminum bar product that is very versatile and has a wide range of applications. 6061 Aluminum bar is made from one of the most widely used heat treatable aluminum alloys. Aluminum 6061 T6 Round Bar has excellent corrosion resistance, good workability and good machinability. 6061 aluminum round bar applications include a wide variety of products from medical assemblies, aircraft construction to structural components.All rounds are extruded 6061 T6 produced to ASTM B 221.

    6061 t6511 aluminum rod has a high strength to weight ratio making it ideal for any application where parts need to be light. 6061-T6511 Extruded Aluminum Round Rod is frequently found in aircraft construction.

    You may intrested in:

    • 6061 T6 Aluminium Round Bar
    • 6061 T6 Aluminium Cast Round Bar
    • 6061 T6 Aluminium Retangular Bar
    • 6061 T6 Aluminium Square Bar
    • 6061 T6 Aluminium Hex Bar
    • 6061 T6 Aluminium Rod
    • 6061 T6 Aluminium Billets
    • 6061 T6 Aluminium Half Oval Bars



    6061 T6 Aluminium Square Bar Suppliers in China, 6061 T6 Aluminium Black Bars Supplier Singapore, Dealer & Distributor of All 6061 T6 Aluminium Alloy Polish Bar Grades, Stockholder of 6061 T6 Aluminium Welding Rods offer Best Price in China & China, Manufacturer of Aluminium 6061 T6 Round Bar

    AMS Aluminium Alloy Type Aluminium Form UNS No. Specification
    4113 Aluminium Alloy 6061 T6 Roundbar, Rods, Hot rolled, or Cold drawn A96061 SAE -QQ-A-200/16 T6
    4117 Aluminium Alloy 6061 T6 Roundbar, Rods, Hot rolled, or Cold drawn A96061 SAE -QQ-A-225/8 T6 T651
    4127 Aluminium Alloy 6061 T6 Roundbar, Rods, Hot rolled, or Cold drawn A96061 FED-QQ-A-367H T6
    4129 Aluminium Alloy 6061 T651 Roundbar, Rods, Hot rolled, or Cold drawn ./. ./.
    4150 Aluminium Alloy 6061 T6 Roundbar, Rods, Hot rolled, or Cold drawn A96061 SAE QQ-A-200/8 T6
    4173 Aluminium Alloy 6061 T6511 Roundbar, Rods, Hot rolled, or Cold drawn A96061 SAE -QQ-A-200/8 T6511



    Specifications of 6061 T6 Aluminium Round Bar:
    Aluminium Alloy ASTM B221 6061 T6
    Specifications ASTM B211, AMS 4115, 4116, 4117, 4128, AMS-QQ-A-225/8 & ASTM B221, AMS4150, 4160, 4161, AMS-QQ-A-200/8
    6061 Round Bar Tensile strength range 20 to 42 KSI. Conforms to AMS QQ-A- 250/8
    Standard  ASTM, ASME, AMS, ASTM B221M, GB/T 3191, JIS H4040, ASTM B221, AMS QQ-A-200/9
    Aluminium 6061 T6 Round Bar Temper O, H12, H14, H16, H18, H22, H24, H26, H32, H112
    Aluminium 6061 T6 Bar Form 6061 T6 Aluminium Square, Round, Hex, Flat, Half Round, Oval, Angle, Rectangular, Wire in Black & Bright Finish
    Aluminium 6061 T6 Round Bar Diameter:0.1-600mm,etc
    Aluminium 6061 T6 Hexagonal Bar Diameter:0.1-600mm,etc
    Aluminium 6061 T6 Angle Bar Size:0.5mm*40mm*40mm-20mm*400mm*400mm
    Aluminium 6061 T6 Flat Bar Thickness:0.1-600mm,etc
    Width:1-2500mm,etc
    Aluminium 6061 T6 Square Bar Size:1mm*1mm-800mm*800mm, etc
    Aluminium 6061 T6 Round Bar Length 1-12m, Random, Fix & Cut Length or as per clients’ requirement
    Aluminium 6061 T6 Bar Bright, Polish & Black
    Aluminium 6061 T6 Bars Surface Anodized, Polished, hair line, brush,
    Mill finished, Bright finish, paper interleaved
    Aluminium 6061 T6 Solid Round Bar Delivery Time 10-30 days after receiving the prepayment
    Aluminium 6061 T6 Round Bar Packaging Details Export standard package: bundled wooden box, suit for all kinds of transport or be required.
    ASTM B221 Alloy 6061 T6 Round Bar Outer packing Export standard, wooden pallet
    We Export Aluminium 6061 T6 Round Bar to Singapore, Indonesia, Ukraine, Korea, Thailand, Vietnam, Saudi Arabia, Brazil, Spain, Canada, USA, Egypt, Iran, China, Kuwait, Dubai, Oman, Kuwait, Peru, Mexico, Iraq, Russia, Malaysia, etc.



    Types of 6061 T6 Aluminium Round Bar Manufacturer in China:

    6061 Aluminium bar     6061 T6 Aluminium Bar

    6061 T6 Aluminium Threaded Rods stockholder in China, 6061 T6 Aluminium Forged Round Bars wholesaler in China, Aluminium EN AW 6061 T6 Cold Finish Round Bar importers in China, 6061 T6 Aluminium Hexagonal Rods Cut To Size At Best Price, ASME SB 211 AA6061-T651 Threaded Rod

    Standard Dimensions of 6061 T6 Aluminium Round Bar

    Standard dimensions

    • 6 mm 6061 T6 Aluminum Round Bar
    • 8 mm 6061 T6 Aluminum Round Bar
    • 9 mm 6061 T6 Aluminum Round Bar
    • 10 mm 6061 T6 Aluminum Round Bar
    • 12 mm 6061 T6 Aluminum Round Bar
    • 12.7 mm 6061 T6 Aluminum Round Bar
    • 14 mm 6061 T6 Aluminum Round Bar
    • 16 mm 6061 T6 Aluminum Round Bar
    • 18 mm 6061 T6 Aluminum Round Bar
    • 19.05 mm 6061 T6 Aluminum Round Bar
    • 20 mm 6061 T6 Aluminum Round Bar
    • 22 mm 6061 T6 Aluminum Round Bar
    • 24 mm 6061 T6 Aluminum Round Bar
    • 25.4 mm 6061 T6 Aluminum Round Bar
    • 27 mm 6061 T6 Aluminum Round Bar
    • 30 mm 6061 T6 Aluminum Round Bar
    • 31.75 mm 6061 T6 Aluminum Round Bar
    • 33 mm 6061 T6 Aluminum Round Bar
    • 36 mm 6061 T6 Aluminum Round Bar
    • 38.1 mm 6061 T6 Aluminum Round Bar
    • 39 mm 6061 T6 Aluminum Round Bar
    • 42 mm 6061 T6 Aluminum Round Bar
    • 45 mm 6061 T6 Aluminum Round Bar
    • 50 mm 6061 T6 Aluminum Round Bar
    • 55 mm 6061 T6 Aluminum Round Bar
    • 60 mm 6061 T6 Aluminum Round Bar
    • 65 mm 6061 T6 Aluminum Round Bar
    • 70 mm 6061 T6 Aluminum Round Bar
    • 75 mm 6061 T6 Aluminum Round Bar
    • 80 mm 6061 T6 Aluminum Round Bar
    • 90 mm 6061 T6 Aluminum Round Bar
    • 100 mm 6061 T6 Aluminum Round Bar
    • 110 mm 6061 T6 Aluminum Round Bar
    • 120 mm 6061 T6 Aluminum Round Bar
    • 130 mm 6061 T6 Aluminum Round Bar
    • 140 mm 6061 T6 Aluminum Round Bar
    • 150 mm 6061 T6 Aluminum Round Bar
    • 160 mm 6061 T6 Aluminum Round Bar
    • 165 mm 6061 T6 Aluminum Round Bar
    • 180 mm 6061 T6 Aluminum Round Bar
    • 190.5 mm 6061 T6 Aluminum Round Bar
    • 210 mm 6061 T6 Aluminum Round Bar
    • 228 mm 6061 T6 Aluminum Round Bar
    • 250 mm 6061 T6 Aluminum Round Bar
    • 305 mm 6061 T6 Aluminum Round Bar

    Aluminium 6061 T6 Round Bar Manufacturers, Cold Drawn 6061 T6 Aluminium Bar, Cold Forming 6061 T6 Aluminium Material Rod, Cold Rolled 6061 T6 Aluminium Round Rod, 6061 T6 Aluminum Alloy Hollow Bar, UNS A96082 Round Bar Manufacturer in China, EN 485-2 6061 T6 Aluminium Bars & Rods stockist, 6061 T6 Aluminium Round Bar Price in China



    Standard Specification of 6061 T6 Aluminium Round Bar

    Standards and specifications by country:
    Specification Alloy Temper Company
    Europe
    EN 2694/EN 3341 6061 T6(T62)/T4(T42)
    AIR 9048.210/.220/.230/.240 6061 O, H111(T42)/T4/ O, H111(T62)/T6
    W.-Nr. 3.3214 6061 O(T62), T6
    AMS 4025/4026/4027 6061 O, F, T4, T42, T45, T6, T62, T651



    European Standard BS (OLD) USA (AA) GERMANY (DIN) ISO IS Canadian
    EN AW-6061 HE20 6061 AlMgSiCu AlMg1SiCu 65032 65S



    6061 T6 Aluminium Round Bar Equivalent Grades:
    China
    U.S.A.
    BRITAIN
    CANADA GERMANY
    RUSSIA
    I.S.O.
    FRENCH
    New IS Old IS (A.A.)
    (B.S.)
      (DIN)
    65032 H20 6061 H20 65S Al-Mg-Si Cu Al-Mg-Si



    AMS Specifications
    SPEC Description UNS Number Alloy
    AMS 4025 Aluminum Round Bar A96061 6061-0
    AMS 4027 Aluminum Round Bar A96061 6061-T6 6061-T651

    Specialized in:

    6061-T6 Aluminum Half Oval Bar: AMS-QQ-A-225/8, ASTM-B-211, AMS-4117*
    6061-T651 Aluminum Half Oval Bar: AMS-QQ-A-225/8, ASTM-B-211, AMS-4117*
    6061-T6511 Aluminum Half Oval Bar: AMS-QQ-A-225/8, ASTM-B-211, AMS-4117*
    6061-T6 Aluminum Half Round Bar: AMS-QQ-A-225/8, ASTM-B-211, AMS-4117*
    6061-T651 Aluminum Half Round Bar: AMS-QQ-A-225/8, ASTM-B-211, AMS-4117*
    6061-T6511 Aluminum Half Round Bar: AMS-QQ-A-225/8, ASTM-B-211, AMS-4117*
    6061-T6 Aluminum Hex Bar: AMS-QQ-A-225/8, ASTM-B-211, AMS-4117
    6061-T651 Aluminum Hex Bar: AMS-QQ-A-225/8, ASTM-B-211, AMS-4117
    6061-T6511 Aluminum Hex Bar: AMS-QQ-A-225/8, ASTM-B-211, AMS-4117
    6061-T6 Aluminum Flat Bar: AMS-QQ-A-225/8, ASTM-B-211, AMS-4117 **
    6061-T651 Aluminum Flat Bar: AMS-QQ-A-225/8, ASTM-B-211, AMS-4117 **
    6061-T6511 Aluminum Flat Bar: AMS-QQ-A-225/8, ASTM-B-211, AMS-4117
    6061-T6511 Aluminum Flat Bar, Manifold Quality: AMS-QQ-A-200/8, ASTM-B-221
    6061-T6 Aluminum Round Bar: AMS-QQ-A-225/8, ASTM-B-211, AMS-4117
    6061-T651 Aluminum Round Bar: AMS-QQ-A-225/8, ASTM-B-211, AMS-4117
    6061-T6511 Aluminum Round Bar: AMS-QQ-A-225/8, ASTM-B-211, AMS-4117
    6061-T6 Aluminum Square Bar: AMS-QQ-A-225/8, ASTM-B-211, AMS-4117 **
    6061-T651 Aluminum Square Bar: AMS-QQ-A-225/8, ASTM-B-211, AMS-4117 **
    6061-T6511 Aluminum Square Bar: AMS-QQ-A-225/8, ASTM-B-211, AMS-4117
    6061-T6511 Aluminum Square Bar, Manifold Quality: AMS-QQ-A-200/8, ASTM-B-211

    6061 T6 Aluminium Round Bar Weight Chart:
    Product Diameter Weight
    6061 T6 Aluminium Round Bar 6 mm 0,076 Kg/m
    6061 T6 Aluminium Round Bar 7 mm 0,104 Kg/m
    6061 T6 Aluminium Round Bar 8 mm 0,136 Kg/m
    6061 T6 Aluminium Round Bar 9 mm 0,172 Kg/m
    6061 T6 Aluminium Round Bar 9,5 mm 0,191 Kg/m
    6061 T6 Aluminium Round Bar 10 mm 0,212 Kg/m
    6061 T6 Aluminium Round Bar 11 mm 0,257 Kg/m
    6061 T6 Aluminium Round Bar 12 mm 0,305 Kg/m
    6061 T6 Aluminium Round Bar 12,5 mm 0,331 Kg/m
    6061 T6 Aluminium Round Bar 13 mm 0,358 Kg/m
    6061 T6 Aluminium Round Bar 14 mm 0,416 Kg/m
    6061 T6 Aluminium Round Bar 16 mm 0,543 Kg/m
    6061 T6 Aluminium Round Bar 16,5 mm 0,577 Kg/m
    6061 T6 Aluminium Round Bar 18 mm 0,687 Kg/m
    6061 T6 Aluminium Round Bar 19 mm 0,766 Kg/m
    6061 T6 Aluminium Round Bar 20 mm 0,848 Kg/m
    6061 T6 Aluminium Round Bar 22 mm 1,026 Kg/m
    6061 T6 Aluminium Round Bar 25 mm 1,325 Kg/m
    6061 T6 Aluminium Round Bar 28 mm 1,663 Kg/m
    6061 T6 Aluminium Round Bar 30 mm 1,909 Kg/m
    6061 T6 Aluminium Round Bar 31 mm 2,038 Kg/m
    6061 T6 Aluminium Round Bar 32 mm 2,171 Kg/m
    6061 T6 Aluminium Round Bar 35 mm 2,598 Kg/m
    6061 T6 Aluminium Round Bar 38 mm 3,062 Kg/m
    6061 T6 Aluminium Round Bar 40 mm 3,393 Kg/m
    6061 T6 Aluminium Round Bar 45 mm 4,294 Kg/m
    6061 T6 Aluminium Round Bar 50 mm 5,301 Kg/m
    6061 T6 Aluminium Round Bar 55 mm 6,415 Kg/m
    6061 T6 Aluminium Round Bar 60 mm 7,634 Kg/m
    6061 T6 Aluminium Round Bar 65 mm 8,959 Kg/m
    6061 T6 Aluminium Round Bar 70 mm 10,391 Kg/m
    6061 T6 Aluminium Round Bar 75 mm 11,928 Kg/m
    6061 T6 Aluminium Round Bar 80 mm 13,572 Kg/m
    6061 T6 Aluminium Round Bar 90 mm 17,177 Kg/m
    6061 T6 Aluminium Round Bar 100 mm 21,206 Kg/m
    6061 T6 Aluminium Round Bar 105 mm 23,379 Kg/m
    6061 T6 Aluminium Round Bar 110 mm 25,659 Kg/m
    6061 T6 Aluminium Round Bar 120 mm 30,536 Kg/m
    6061 T6 Aluminium Round Bar 127 mm 34,203 Kg/m
    6061 T6 Aluminium Round Bar 130 mm 35,838 Kg/m
    6061 T6 Aluminium Round Bar 140 mm 41,563 Kg/m
    6061 T6 Aluminium Round Bar 150 mm 47,713 Kg/m
    6061 T6 Aluminium Round Bar 180 mm 68,707 Kg/m
    6061 T6 Aluminium Round Bar 200 mm 84,823 Kg/m

    Theorical Weights Table
    The values presented on this table are theorical and they should be confirmed if you make an order.

    6061 T6 Aluminium Square Bar Weight Chart:

    dsadasdas

    Product Side Weight
    Aluminium Square Bar 10 mm 0,270 Kg/m
    Aluminium Square Bar 15 mm 0,608 Kg/m
    Aluminium Square Bar 16 mm 0,691 Kg/m
    Aluminium Square Bar 20 mm 1,080 Kg/m
    Aluminium Square Bar 25 mm 1,688 Kg/m
    Aluminium Square Bar 35 mm 3,308 Kg/m
    Aluminium Square Bar 45 mm 5,468 Kg/m
    Aluminium Square Bar 60 mm 9,720 Kg/m
    Aluminium Square Bar 100 mm 27,000 Kg/m



    6061 T6 Aluminium Rectangular Bar Weight Chart:

    dsadasdas

    Product Width   Thickness Weight
    6061 T6 Aluminium Rectangular Bar 20 mm x 2 mm 0,108 Kg/m
    6061 T6 Aluminium Rectangular Bar 15 mm x 3 mm 0,122 Kg/m
    6061 T6 Aluminium Rectangular Bar 20 mm x 3 mm 0,162 Kg/m
    6061 T6 Aluminium Rectangular Bar 25 mm x 3 mm 0,203 Kg/m
    6061 T6 Aluminium Rectangular Bar 30 mm x 3 mm 0,243 Kg/m
    6061 T6 Aluminium Rectangular Bar 40 mm x 3 mm 0,324 Kg/m
    6061 T6 Aluminium Rectangular Bar 15 mm x 4 mm 0,162 Kg/m
    6061 T6 Aluminium Rectangular Bar 20 mm x 4 mm 0,216 Kg/m
    6061 T6 Aluminium Rectangular Bar 25 mm x 4 mm 0,270 Kg/m
    6061 T6 Aluminium Rectangular Bar 30 mm x 4 mm 0,324 Kg/m
    6061 T6 Aluminium Rectangular Bar 15 mm x 5 mm 0,203 Kg/m
    6061 T6 Aluminium Rectangular Bar 20 mm x 5 mm 0,270 Kg/m
    6061 T6 Aluminium Rectangular Bar 25 mm x 5 mm 0,338 Kg/m
    6061 T6 Aluminium Rectangular Bar 30 mm x 5 mm 0,405 Kg/m
    6061 T6 Aluminium Rectangular Bar 40 mm x 5 mm 0,540 Kg/m
    6061 T6 Aluminium Rectangular Bar 50 mm x 5 mm 0,675 Kg/m
    6061 T6 Aluminium Rectangular Bar 30 mm x 6 mm 0,486 Kg/m
    6061 T6 Aluminium Rectangular Bar 40 mm x 6 mm 0,648 Kg/m
    6061 T6 Aluminium Rectangular Bar 60 mm x 6 mm 0,972 Kg/m
    6061 T6 Aluminium Rectangular Bar 20 mm x 8 mm 0,432 Kg/m
    6061 T6 Aluminium Rectangular Bar 25 mm x 8 mm 0,540 Kg/m
    6061 T6 Aluminium Rectangular Bar 30 mm x 8 mm 0,648 Kg/m
    6061 T6 Aluminium Rectangular Bar 40 mm x 8 mm 0,864 Kg/m
    6061 T6 Aluminium Rectangular Bar 50 mm x 8 mm 1,080 Kg/m
    6061 T6 Aluminium Rectangular Bar 55 mm x 8 mm 1,188 Kg/m
    6061 T6 Aluminium Rectangular Bar 60 mm x 8 mm 1,296 Kg/m
    6061 T6 Aluminium Rectangular Bar 80 mm x 8 mm 1,728 Kg/m
    6061 T6 Aluminium Rectangular Bar 100 mm x 8 mm 2,160 Kg/m
    6061 T6 Aluminium Rectangular Bar 20 mm x 10 mm 0,540 Kg/m
    6061 T6 Aluminium Rectangular Bar 25 mm x 10 mm 0,675 Kg/m
    6061 T6 Aluminium Rectangular Bar 30 mm x 10 mm 0,810 Kg/m
    6061 T6 Aluminium Rectangular Bar 40 mm x 10 mm 1,080 Kg/m
    6061 T6 Aluminium Rectangular Bar 50 mm x 10 mm 1,350 Kg/m
    6061 T6 Aluminium Rectangular Bar 60 mm x 10 mm 1,620 Kg/m
    6061 T6 Aluminium Rectangular Bar 80 mm x 10 mm 2,160 Kg/m
    6061 T6 Aluminium Rectangular Bar 100 mm x 10 mm 2,700 Kg/m
    6061 T6 Aluminium Rectangular Bar 200 mm x 20 mm 10,800 Kg/m



    6061 T6 Aluminium Round Bar Chemical Composition:
    Alloy (ISS) Equivalent alloy (A.A) Copper Magnesium Silicon Iron Managanese Others* (Total) Remarks
    Old New U.S.A Min. Max. Min. Max. Min. Max. Min. Max. Max Max. Aluminum 99.0% Min.
    H 20 65032 6061 0.15 0.4 0.7 1.2 0.4 0.8 0.7 0.2 0.8 0.4 Chromium up to 0.10



    Aluminium 6061 T6 Round Bar Mechanical Properties:
    State
    Specified thickness (mm)
    Rm (MPa)
    Rp0,2 (MPa)
    A % mini
    Bending radius
    Hardness HBS
    More than
    until
    mini
    maxi
    mini
    maxi
    A 50
    A
    180°
    90°
    6061 O
    >0,41,53,06,012,5 1,53,06,012,525,0
    150150150150150
    8585858585 14161916     16 1,0 e1,0 e    0,5 e1,0 e1,0 e2,0 e  4040404040
    T46061 T 451 > 0,41,53,06,0 1,53,06,012,5 205205205205
    110110110110
    12141618 1,5 e2,0 e   1,0 e1,5 e3,0 e4,0 e  58585858
    6061 T451
    12,540,0 40,080,0 205205
    110110
    15.14
    5858
    6061 T42
    >0,41,53,06,012,540,0 1,53,06,012,540,080,0

    205

    205

    205

    205

    205

    205

    95

    95

    95

    95

    95

    95

    12141618      1514   1,0 e1,5 e3,0 e4,0 e   575757575757
    6061 T66061 T6516061 T62 > 0,41,53,06,0 1,53,06,012,5 290290290290
    240240240240
    67109   2,5 e3,5 e4,0 e5,0 e 88888888

    6061 T651

    6061 T62

    12,540,080,0100,0150,0 40,080,0100,0150,0175,0

    290

    290

    290

    275

    265

    240

    240

    240

    240

    230

    86554   8888888481



    Alloy Designation UK
    Specifications
    US
    Specifications
    US Federal
    Specifications
    European
    Specifications
    Other
    6061
    A96061
    A86061
    BS L117 Alloy 6061 T6
    BS L118 Alloy 6061 T6
    H20
    HE20 6061 Extrusions
    HP20 6061
    HS20 6061
    AMS 4009 6061-0
    AMS 4021 6061-0
    AMS 4022 6061
    AMS 4023 6061
    AMS 4025 6061-0
    AMS 4026 6061-T4 T451
    AMS 4027 6061-T6 and T651
    AMS 4053 6061
    AMS 4079 6061-0
    AMS 4080 6061-0
    AMS 4081 6081-T4
    AMS 4082 6061-T6
    AMS 4083 6061-T6
    AMS 4091 Superseded by AMS 4081
    AMS 4092 Superseded by AMS 4082
    AMS 4093 Superseded by AMS 4083
    AMS 4113 6061-T6 Extruded shapes
    AMS 4115 6061-0 Cold finished bars, rod, wire
    AMS 4116 6061-T4 Cold finished bars, rod, wire
    AMS 4117 6061-T6/T651 Cold finished bars, rod, wire
    AMS 4127 6061-T6 Forgings Rolled or Forged
    AMS 4128 6061-T451 Bars Rolled or Forged
    AMS 4129 6061-T651 Superseded by 4117
    AMS 4146 6061-T4 Forgings
    AMS 4150 6061-T6 Extrusions and Rings
    AMS 4160 6061-0 Extrusion
    AMS 4161 6061-T4 Extrusion
    AMS 4172 6061-T4511 Extrusion
    AMS 4173 6061-T6511 Extrusion
    QQ-A-200/8 6061-T6/T6511 Extruded bar
    QQ-A-200/16 6061-T6 extruded stuctural shapes
    QQ-A-225/8 6061-T6 / T651 Cold finished bar
    QQ-A-250/11 6061
    WW-T-700/6 6061-T6
    MIL-T-7081 6061-T6
    QQ-A-367 6061 Forgings
    WS 3.3211
    WS 3.3214
    EN 2392 6061-T6
    EN 2694 6061-T6
    EN 3341 6061-T4
    EN 3342 6061-T4 Extruded bar
    EN 3557
    EN 4213 6061-T651
    AWCO-22
    Birmetal-016
    BA22
    Duricilium-Q
    Hiduminium-43
    LA 380
    ABM 2-3023
    ABM 2-3025
    ABM 2-3026
    ABS 5144
    ABS 5151
    BACM 123
    BACM 171 6061-0
    A-GSUC
    L-3453
    ASN-A-3277
    NCT 15-238-01
    AIR 9048.210 6061-0
    AIR 9048.220 6061-T4
    AIR 9048.230 6061-0
    AIR 9048.240 6061-T6
    AIR 9049

    Aluminum Alloy Heat Treatment Temper Designations for Round Bars

    Basic Aluminum Heat Treatment Designations

    • F As Fabricated
    • O Annealed
    • H Strain Hardened
    • W Solution Heat Treated
    • T Solution Heat Treated

    Heat Treating T Temper Codes for Aluminium 6061 T6 Round Rods

    • T1 – Cooled from an elevated temperature shaping process and naturally aged to a substantially stable condition.
    • T2 – Cooled from an elevated temperature shaping process, cold worked, and naturally aged to a substantially stable condition.
    • T3 – Solution heat treated, cold worked, and naturally aged to a substantially stable condition.
    • T4 – Solution heat treated, and naturally aged to a substantially stable condition.
    • T5 – Cooled from an elevated temperature shaping process then artificially aged.
    • T6 – Solution heat treated then artificially aged.
    • T7 – Solution heat treated then overaged/stabilized.
    • T8 – Solution heat treated, cold worked, then artificially aged.
    • T9 – Solution heat treated, artificially aged, then cold worked.
    • T10 – Cooled from an elevated temperature shaping process, cold worked, then artificially aged.

    Additional digits may be used after the first T temper digit to indicate subsequent stress relieving by processes such as stretching, compressing, or a combination.

    H Temper Strain Hardening Codes for Aluminium 6061 T6 Bars

    • H1 – Strain hardened only
    • H2 – Strain hardened and partially annealed
    • H3 – Strain hardened and stabilized
    • H4 – Strain hardened and lacquered or painted. This assumes that thermal affects from the coating process affect the strain hardening; seldom encountered.

    Application of 6061 T6 Aluminium Rod/ Round Bar

    6061 T6 Aluminium Round Bar is the most widely used form of Industrial Aluminium. 6061 T6 Aluminium Rods find applications in various industries such as manufacturing cans and packages, transportation, home appliances, building and construction.

    dsadasdas


  • Previous:
  • Next:

  • Related Products
