Aluminum 7475 T761/T7351 Sheet – High Strength Aerospace

Short Description:

Aluminum 7475 sheet is a high-strength aerospace-grade aluminum alloy primarily composed of aluminum, zinc, magnesium, and copper. As a modified version of 7075, it offers enhanced fracture toughness and better fatigue resistance, making it ideal for critical structural components.

Grade: 7475

Temper: T61, T761, T7651, T651, T7351

Thickness: 0.5mm-150mm

Width: 500-2000mm

Send email to us Download as PDF

Product Detail

FAQ

Product Tags

Specifications of 7475 Aluminum Plate:

Alloy	7475
Temper	T61, T761, T7651, T651, T7351
Standard	7475-T61 Sheet AMS 4084 7475-T61 Sheet Alclad AMS 4207 7475-T651 Plate AMS 4090 7475-T761 Alclad Sheet AMS 4100 AMS4100 DMS2234 LN9073 7475-T761 Sheet AMS 4085 AMS4085 7475-T7651 Plate AMS 4089 7475-T7351 Plate AMS 4202 7475 O Clad DMS2234
Thickness	3.0mm-200mm
Width	500-2600mm
Length	to clients’ requirement
Certificate of Classification	Classification Society (CCS), American Classification Society (ABS), French Classification Society (BV), British Classification Society (LR) Classification society certification.
Finish	PVDF, POLYESTER(PE)
Surface	Bright, polished, hair line, brush, sand blast, checkered, embossed, etching, etc.

Chemical Composition of 7475 alloy Plate:

Si	Fe	Cu	Mn	Mg	Cr	Zn	Ti	Al
0.10	0.12	1.2-1.9	0.06	1.9-2.6	0.18-0.25	5.2-6.2	0.06	Rem

Mechanical property of 7475 aluminum sheet:

Type	Temper	Thickness mm	Direction	Rm	Rp0.01	Rp0.2	R0.7	R0.85	A/%
Type	Temper	Thickness mm	Direction	MPa					A/%
7475 aluminum sheet	O	2.0	L	203		102			18
	O		LT	204		87			17
	T6		L	548	337	487	492	478	14
	T6		LT	546	345	476	484	465	15.3
7475 aluminum sheet	T76	2.0	L	791	293	428	430	419	11.4
7475 aluminum sheet	T76	2.0	LT	485	319	418	421	410	10.6
7475 aluminum plate	T651	38	L	560	423	499	503	497	13.4
	T651		LT	570	386	492	500	478	14.2
	T7651		L	522	370	453	455	448	14.1
	T7651		LT	526	363	452	457	442	12.9
	T7351		L	517	349	443	448	432	14.0
	T7351		LT	510	353	439	442	435	14.6

7475 aluminum sheet application:

Aluminum 7475 sheet is mainly used in aerospace and defense industries due to its high strength, excellent fracture toughness, and fatigue resistance. Typical applications include:

Aircraft fuselage panels and wing skins
Helicopter rotor components
Missile structures and UAV frames
Precision tooling plates and structural brackets
Aerospace-grade machine parts

Not recommended for welding; best used in mechanically fastened or bonded assemblies.

Why Choose us

1. You can get the perfect material according to your requirement at the least possible price.
2. We also offer Reworks, FOB, CFR, CIF, and door to door delivery prices. We suggest you to do deal for shipping which will be quite economical.
3. The materials we provide are completely verifiable, right from raw material test certificate to the final dimensional statement.(Reports will show on requirement)
4. We guarantee to give a response within 24hours(usually in the same hour)
5. Provide SGS TUV report.
6. We are fully dedicated to our customers. If it will not possible to meet your requirements after examining all options, we will not mislead you by making false promises which will create good customer relations.
7.Provide one-stop service.

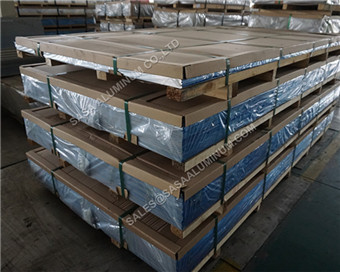

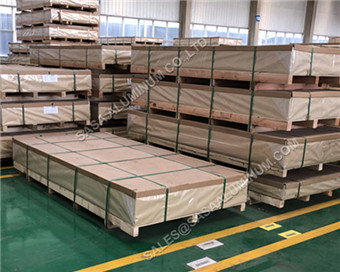

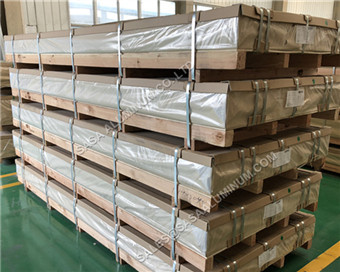

Aluminum Sheet Manufacturers Packing

1. Packing is quite important especially in a case of international shipments in which consignment pass through various channels to reach the ultimate destination, so we put special concern regarding packaging.
2. Sasa aluminum’s pack our goods in numerous ways based on the products. We pack our products in multiple ways, such as
