6060 Aluminum Pipe | Lightweight Corrosion-Resistant Alloy Tube
6060 Aluminum Pipe is a medium-strength, heat-treatable aluminum alloy known for its excellent corrosion resistance, smooth surface finish, and superior extrudability. It is widely used in structural and architectural applications such as window frames, curtain walls, railings, furniture tubing, and decorative profiles. With good weldability and anodizing properties, 6060 aluminum pipe is a reliable choice for both indoor and outdoor projects.
Available in a variety of outer diameters and wall thicknesses, 6060 aluminum tubing from sasaaluminum is produced to meet international standards such as EN AW-6060, ASTM B221, and GB/T 5237. It is offered in T5 or T6 tempers for added mechanical strength and dimensional stability. Whether for construction, transportation, or engineering use, sasaaluminum ensures high precision and consistent quality in every aluminum pipe we supply.
| Specifications of 6060 Aluminum Tubing |
| Grade | 3003 H14 ,5652, 5086, 5056, 5754, 6061, 6062, 6063,6060, etc. |
| Standard | ASTM B221 |
| Sizes | 1/8″ – 16″ (3mm – 2500mm) OD .020″ – 2″ (.2mm – 150mm) wall (1m-12m) Length |
| Technology |
Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |
| Form | seamless, drawn and coiled Tubing |
| Temper | T4 T5 T6 T64 T66 H112 |
| Surface | Anodized, Oxidation, electrophoresis coating, fluorine carbon spraying |
| TYPE OF EN AW 6060 Aluminum Pipe: |
 6060 cold drawn aluminum tube |
 6060 Aluminum Seamless Pipe |
 6060 aluminum tube |
 6060 Aluminium Tubing |
 6060 Aluminium square Tube |
 6060 aluminum welded tube |
| CHEMICAL COMPOSITION OF 6060 aluminum tube |
| Grade | Al | Mg | Si | Fe | Cu | Zn | Ti | Mn | Cr |
| 6060 | 97.9-99.3 | 0.35-0.6 | 0.30-0.60 | 0.1-0.3 | 0.1 |
0.15 |
0.1 |
0.1 |
0.05 |
| 6060 Alloy Aluminum Pipe Mechanical Properties |
| Temper | T4 | T5 | T6 | T64 | T66 | H112 |
| Elongation at Break | 16% | 9% | 11% | 13% | 9.1% | - |
| Fatigue Strength (MPa) | 37 | 56 | 70 | 61 | 67 | - |
| Shear Strength (MPa) | 86 | 93 | 130 | 120 | 130 | - |
| Tensile Strength: Ultimate (MPa) | 140 | 160 | 220 | 200 | 220 | 215 |
| Tensile Strength: Yield (MPa) | 71 | 110 | 170 | 140 | 170 | 160 |

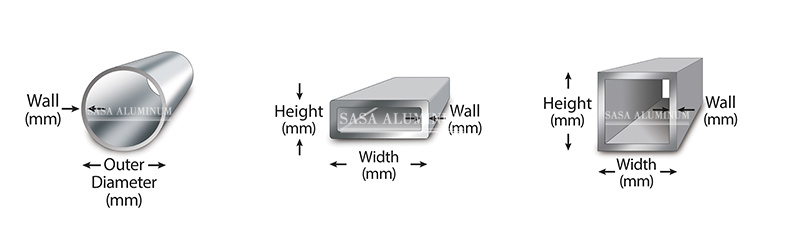

| 6060 round,rectangular and square tube pipe size: |
6060 round pipe size
| Outer diameter | Wall thickness | Length |
| 6 | 0.5 | 1000-6000 |
| 8 | 1 | 1000-6000 |
| 10 | 1 | 1000-6000 |
| 12 | 1 | 1000-6000 |
| 15 | 1 | 1000-6000 |
| 20 | 1 | 1000-6000 |
| 25 | 1.5 | 1000-6000 |
| 30 | 2 | 1000-6000 |
| 35 | 2 | 1000-6000 |
| 40 | 2 | 1000-6000 |
| 45 | 2.5 | 1000-6000 |
| 50 | 2.5 | 1000-6000 |
| 55 | 3 | 1000-6000 |
| 60 | 3 | 1000-6000 |
| 65 | 3 | 1000-6000 |
| 70 | 3 | 1000-6000 |
| 80 | 2 | 1000-6000 |
| 120 | 5 | 1000-6000 |
| 140 | 5 | 1000-6000 |
6060 rectangular pipe size
| Height | 20, 25, 30, 34, 35, 40, 45, 50, 60, 70, 80, 100, 120, 140, 150, etc. | |
| Width | 10, 15, 18, 20, 25, 30, 34, 40, 50, 60, 80, 100, etc. | |
| Thickness | 1.5, 2, 2.5, 3, 4, 5, etc. | |
| Length | 3000, 6000, etc. | |
| Width, depth, or flatness tolerance | Size | Tolerance |
| ≤10mm | ±.30mm | |
| > 10 mm-25 mm | ±.40mm | |
| > 25 mm-50 mm | ±.60mm | |
| > 50 mm-100 mm | ±.90mm | |
| > 100mm-150mm | ±1.1mm | |
6060 square pipe size
| Available size | 25x25x2 mm | 40x40x3 mm |
| 25x25x3 mm | 45x45x2 mm | |
| 25x25x2.5 mm | 45x45x2.5 mm | |
| 30x30x3 mm | 50x50x2 mm | |
| 35x35x2 mm | 50x50x2.5 mm | |
| 35x35x3 mm | 50x50x3 mm | |
| 40x40x2 mm | 60x60x2 mm | |
| 40x40x2.5 mm | 60x60x3 mm | |
| Width, depth, or flatness tolerance | Size | Tolerance (≤100mm) |
| ≤10mm | ±.25mm | |
| > 10 mm-25 mm | ±.30mm | |
| > 25 mm- 50 mm | ±.50mm | |
| > 50 mm-100 mm | ±.70mm |
| EN AW 6060 Aluminum Pipe Application: |
Architecture and Construction
-
Curtain walls, window and door frames
-
Railings, handrails, sunshade brackets
-
Interior partitions and decorative framing
-
Structural components for exhibition systems
Transportation
-
Interior framing for buses, trains, and subways
-
Lightweight vehicle frames and footboard structures
-
Aluminum components in jet bridges and boarding systems
Furniture Manufacturing
-
Tubular frames for desks, chairs, and modular office partitions
-
Custom aluminum profiles for display shelves and stands
General Engineering and Industrial Use
-
Light-duty structural frames and extruded supports
-
Enclosures and framing for automation equipment
-
Ductwork and ventilation systems
Decorative and Advertising Structures
-
Anodized aluminum tubes for clean visual designs
-
Framing for signage, LED lighting, and advertising displays
| Why choose us: |
1. You can get the perfect material according to your requirement at the least possible price.
2. We also offer Reworks, FOB, CFR, CIF, and door to door delivery prices. We suggest you to do deal for shipping which will be quite economical.
3. The materials we provide are completely verifiable, right from raw material test certificate to the final dimensional statement.(Reports will show on requirement)
4. e guarantee to give a response within 24hours(usually in the same hour)
5. You can get stock alternatives, mill deliveries with minimizing manufacturing time.
6. We are fully dedicated to our customers. If it will not possible to meet your requirements after examining all options, we will not mislead you by making false promises which will create good customer relations.

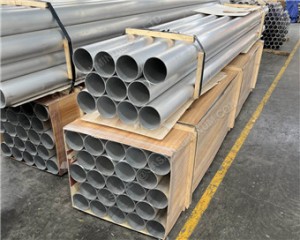

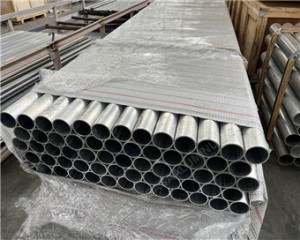

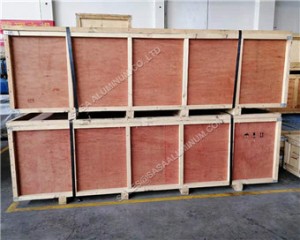

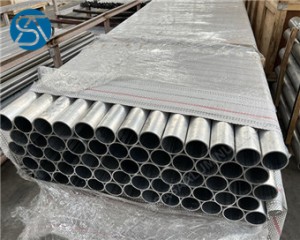

| Aluminum pipe packing: |
1. Packing is quite important especially in a case of international shipments in which consignment pass through various channels to reach the ultimate destination, so we put special concern regarding packaging.
2. Sasa aluminum’s pack our goods in numerous ways based on the products. We pack our products in multiple ways, such as
