Aluminum Small Five-Bar Tread Plate
Aluminum Small Five-Bar Tread Plate Overview

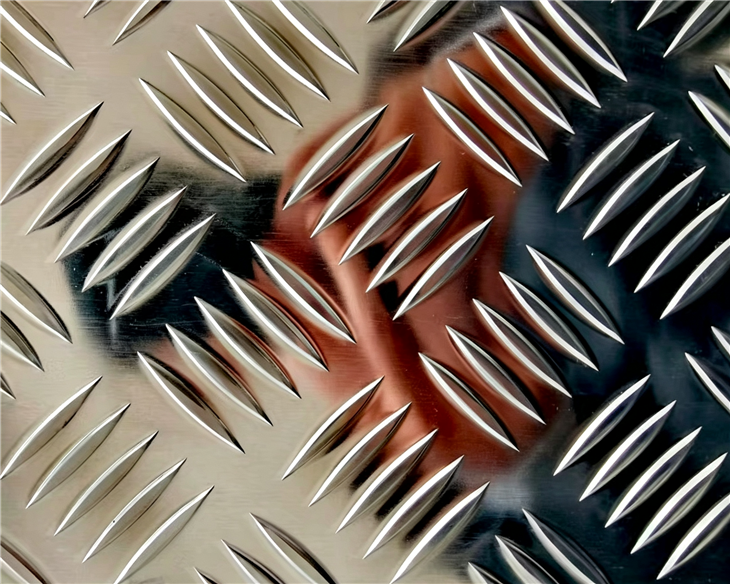

Aluminum Small Five-Bar Tread Plate is an aluminum sheet with a raised five-bar pattern designed to improve surface grip while retaining the lightweight and corrosion-resistant characteristics of aluminum.
Compared with large five-bar tread plate, the small five-bar pattern uses a more compact raised-bar arrangement, making it suitable for flooring, steps, walkways, vehicle panels and other applications where anti-slip performance and a neat surface appearance are required.
SASA ALUMINUM supplies aluminum tread plate according to customer requirements for alloy, temper, thickness, width, length, surface condition and pattern specification.
Small Five-Bar Tread Plate Quick Information
Product: Aluminum Small Five-Bar Tread Plate
Pattern: Small Five-Bar Raised Pattern
Standard: ASTM B632 or Agreed Specification
Temper: O / H14 / H24 / Other Required Temper
Thickness: Customized According to Requirement
Width: Customized According to Requirement
Length: Up to 6000mm or Customized
Surface: Mill Finish / Polished / Brushed as Required
Aluminum Small Five-Bar Tread Plate Specifications
| Item | Specification |
|---|---|
| Product Type | Aluminum Tread / Checker Plate |
| Pattern | Small Five-Bar Raised Pattern |
| Standard | ASTM B632 or Customer Specification |
| Alloy | Selected According to Strength, Corrosion Resistance and Application Requirements |
| Temper | O / H14 / H24 / Other Required Temper |
| Thickness | Customized According to Order Requirements |
| Width | Customized According to Order Requirements |
| Length | Up to 6000mm or Customized |
| Surface | Mill Finish / Polished / Brushed / Customized |
| Supply Form | Sheet / Plate / Cut-to-Size |
| Documentation | MTC and Inspection Documents Available as Required |
Small Five-Bar Pattern Characteristics
| Feature | Benefit |
|---|---|
| Raised Five-Bar Pattern | Provides a textured walking and contact surface for improved grip. |
| Compact Pattern | Smaller bar arrangement provides a more compact visual appearance than large five-bar tread plate. |
| Lightweight Aluminum | Reduces component weight compared with many steel floor plate alternatives. |
| Corrosion Resistance | Suitable for many indoor and outdoor applications when the correct aluminum alloy is selected. |
| Easy Fabrication | Can be cut, formed and fabricated according to project dimensions and installation requirements. |

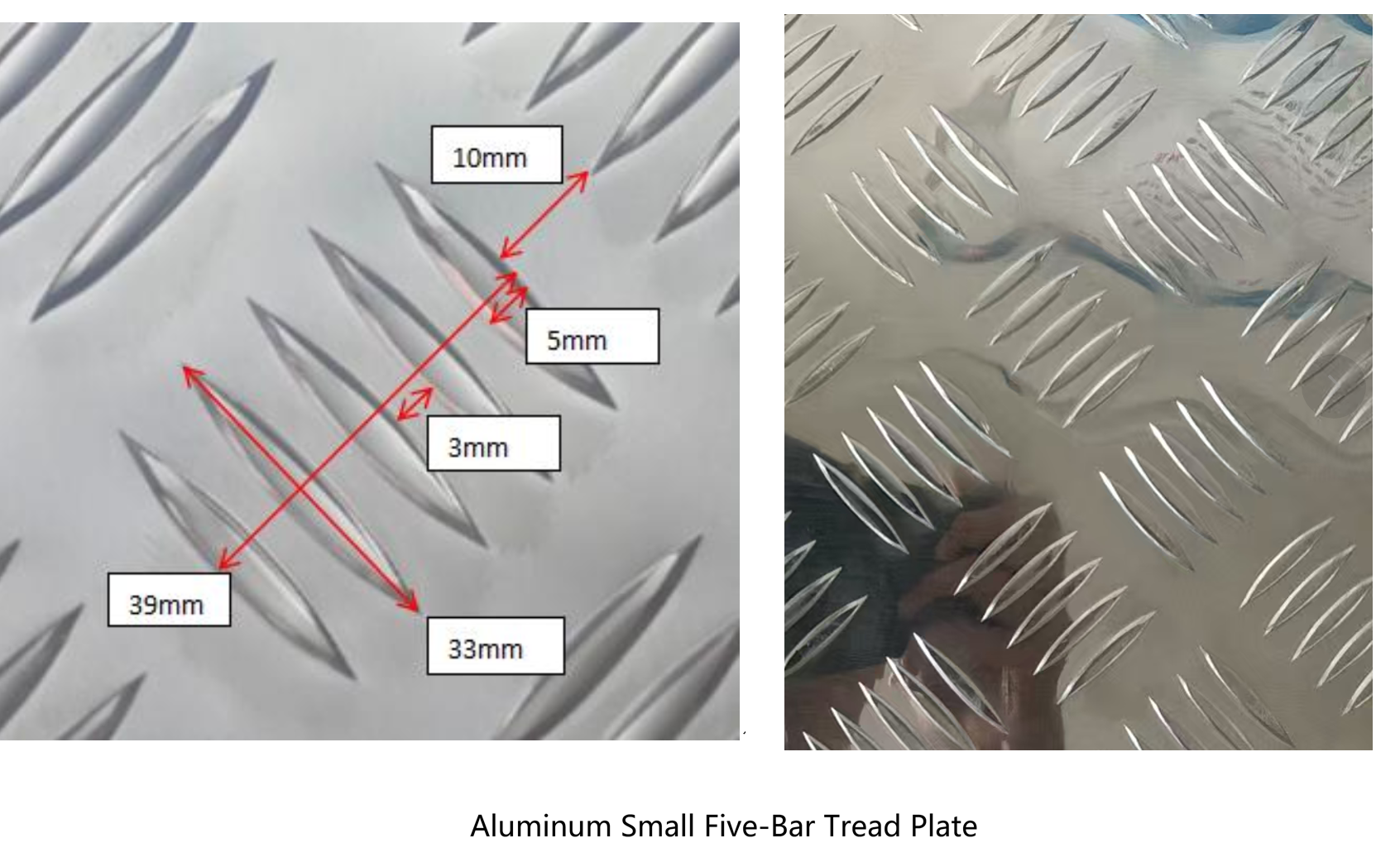

Small Five-Bar vs Large Five-Bar Aluminum Tread Plate
Both products use a raised five-bar tread pattern, but the pattern dimensions and visual effect are different. Selection usually depends on appearance, application, required grip and project specification.
| Type | Pattern Character | Typical Selection |
|---|---|---|
| Small Five-Bar | Compact raised pattern with a finer visual appearance | Steps, vehicle panels, walkways and general anti-slip surfaces |
| Large Five-Bar | Larger and more prominent five-bar pattern | Industrial flooring, ramps, platforms and larger surface areas |
Recommended Aluminum Alloys
The appropriate alloy should be selected according to required strength, corrosion resistance, forming requirements, service environment and project budget.
| Alloy | Main Characteristic | Typical Selection |
|---|---|---|
| 3003 | Good formability and general corrosion resistance with economical material cost | Indoor flooring, steps, decorative panels and general anti-slip applications |
| 5052 | Higher strength and improved corrosion resistance compared with common 3xxx-series alloys | Vehicles, marine components, industrial walkways and more demanding outdoor applications |
Quality Inspection
Inspection requirements can be arranged according to the ordered alloy, dimensions, pattern specification and customer requirements.
| Inspection Item | Purpose |
|---|---|
| Material Verification | Confirm aluminum alloy and material traceability |
| Thickness Inspection | Verify base plate thickness according to order requirements |
| Width & Length | Confirm finished plate dimensions and tolerance |
| Pattern Inspection | Check raised five-bar pattern consistency and surface appearance |
| Surface Inspection | Check visible scratches, dents and other surface defects |
| Documentation | MTC and agreed inspection documents can be supplied as required |
Applications of Small Five-Bar Aluminum Tread Plate
The small five-bar pattern is commonly selected for surfaces requiring a combination of grip, lightweight construction and corrosion resistance.
| Industrial Flooring Anti-slip floor panels and work areas | Stairs Steps and stair tread surfaces | Walkways Access platforms and passage areas |
| Vehicles Truck, trailer and vehicle floor panels | Marine Deck and access-area applications | Architecture Decorative and functional floor panels |

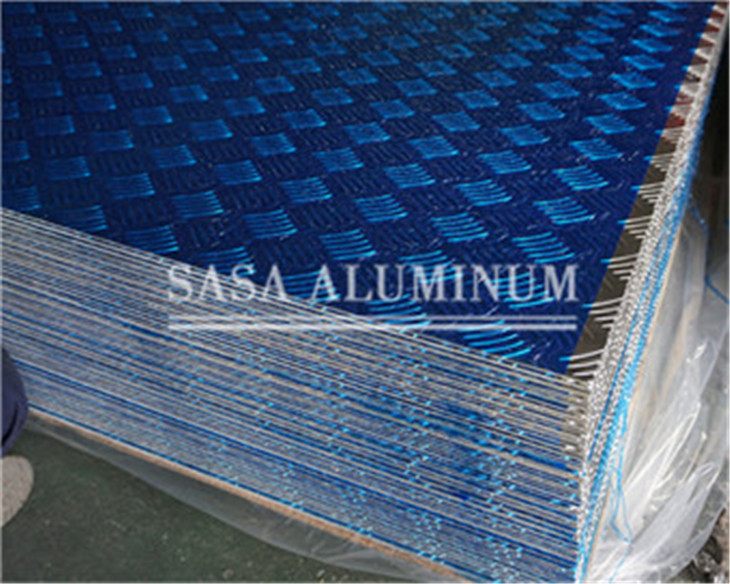

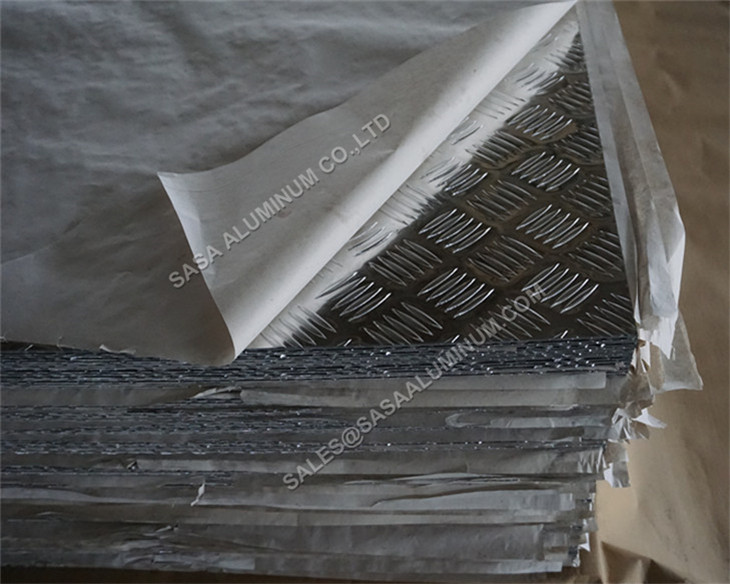

Packaging
Small five-bar aluminum tread plates are packed according to plate dimensions, surface condition and transportation requirements. Export packaging helps protect the raised pattern, plate edges and finished surface during handling and international shipment.
Frequently Asked Questions
What is a small five-bar aluminum tread plate?
It is an aluminum sheet or plate with a compact raised five-bar surface pattern designed to provide additional grip and a distinctive tread appearance.
What is the difference between small and large five-bar tread plate?
The main difference is the size and spacing of the raised five-bar pattern. Small five-bar plate has a finer and more compact appearance, while large five-bar plate uses a more prominent pattern.
Which alloy should I choose, 3003 or 5052?
3003 is commonly selected for economical general applications with good formability, while 5052 is preferred when higher strength and improved corrosion resistance are required.
Can the tread plate be cut to custom sizes?
Yes. Width, length and cut-to-size requirements can be reviewed according to customer drawings and production feasibility.
Can protective film be supplied?
Yes. Protective film can be supplied when required to reduce scratching during handling, fabrication and transportation.
Request an Aluminum Small Five-Bar Tread Plate Quote
Send your alloy, temper, thickness, width, length, quantity, surface and destination. SASA ALUMINUM will review the specification before confirming the offer.
