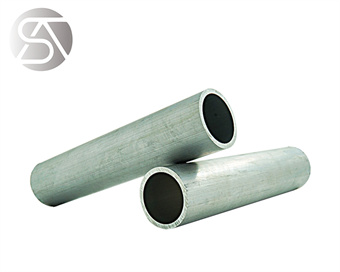

5083 Aluminium Tube

Short Description:

Specifications: ASTM B210

Temper: O, H12, H14

Size: 1/8″ – 16″ (3mm – 2500mm) OD

Surface: Bright finish, paper interleaved

Send email to us Download as PDF

Product Detail

FAQ

Product Tags

5083 Aluminium Tube is primarily used in the marine industry due to its excellent corrosion resistance, especially to seawater. In addition to good corrosion resistance, 5083 Aluminium Drawn Tube also has good weld ability characteristics for fabricating vessels.

Sasa alloy Incorporation is the leading manufacturer and exporter of 5083 Aluminium Tube, Oval Aluminium 5083 Tube, and 5083 Aluminium Square Extruded Tube that are utilized in divers industries such as aerospace, medical, electronics, firearms and industrial. Supplier of ASTM B210 5083 Drawn Seamless Aluminum Alloy Tube in Tempers manufactured in accordance with international standards ASTM B210, ASME SB210, ASTM B221/ B235 /B241 B313 /B317 /B345 B404 /B429 /B483 /B491 /B547, check 5083 Aluminium Drawn Seamless Tube. Wholesale Trader of 5083 Extruded Aluminum Tube offered by Sasa alloy , China.

Stockist of ASTM B234 5083 Drawn Seamless Condenser Tube, Condenser 5083 Aluminum Tube for Heat Exchangers, ASTM B235 5083 Aluminium Extruded Tube, ASTM B241 5083 Aluminium Seamless Extruded Tube, 5083 Mill Finish Round Welded Tube, ASTM B313 5083 Aluminium Welded Tube, ASTM B317 5083 Aluminium Tube, ASTM B345 Seamless Extruded Tube, Aluminum ASTM B404 Seamless Heat Exchanger Tube, Aluminum ASTM B429 Extruded Structural Tube, ASTM B483 Drawn Aluminum Tube, ASTM B547 Aluminum Alloy Welded Tube, / Aluminium Tube in China.

Specifications of 5083 Aluminium Tube:

Aluminium Alloy	ASTM B210, ASTM B234, ASTM B241, ASTM B483; GB/T 6893-2000, GB/T 4437-2000: JIS H4080-2006
5083 Aluminium Tube American Specifications:	ASTM B210 drawn, ASTM B241 extruded, AMS 4173, AMS 4080, AMS 4082, AMS4083, WW-T-700/6
5083 Aluminium Tube British Specifications	H20, HE 20
Material	1060, 1200, 1100, 2024, 2124, 3003, 3004, 5050, 5083, 5154, 5454, 5652, 5086, 5056, 5754, 6061, 6062, 6063, 7075, etc.
5083 Aluminium Tube Standard	ASTM, ASME, AMS, ASTM B210M, GB/T 3191, JIS H4040, ASTM B210, AMS QQ-A-200/9
Aluminium 5083 Tube Temper	O, H12, H14, H16, H18, H22, H24, H26, H32, H112
Aluminium 5083 Tube Form	5083 Aluminium extruded, seamless, drawn and coiled Tube in Black & Bright Finish
Aluminium 5083 Tube Sizes	1/8″ – 16″ (3mm – 2500mm) OD .020″ – 2″ (.2mm – 150mm) wall (1m-12m) Length
Machinability	Fair
Weldability	Good
Corrosion Resistance	Good
Aluminium 5083 Tube	Bright, Polish & Black
Aluminium 5083 Tube Surface	Anodized, Oxidation, electrophoresis coating, fluorine carbon spraying, powder coating, wood grain transfer printing, mechanical drawing, mechanical polishing, sand blasting, Polished, hair line, brush, Mill finished, Bright finish, paper interleaved
Surface treatment	Nature, Black painting, Transparent oil, rust-proof black oil or hot-dip galvanized
Aluminium 5083 Tube Delivery Time	10-30 days after receiving the prepayment
Aluminium 5083 Tube Packaging Details	Export standard package: bundled wooden box, suit for all kinds of transport or be required.
ASTM B210 Alloy 5083 Tube Outer packing	Export standard, wooden pallet
Here are 6 different types of finishes for extruded 5083 aluminum Tube:	Anodizing Powder Coating Liquid Coatings Chemical Finishes Mechanical Finishes Pretreatment
Applications	Bicycle Parts, aircraft ducting, wheelchair frames, telescopes, machined bushes, air cylinders
We Export Aluminium 5083 Tube to	Singapore, Indonesia, Ukraine, Korea, Thailand, Vietnam, Saudi Arabia, Brazil, Spain, Canada, USA, Egypt, Iran, China, Kuwait, Dubai, Oman, Kuwait, Peru, Mexico, Iraq, Russia, Malaysia, etc.

Aluminum Tube Features:
1.Materials	7001-T6/T9, 7075-T9 alloy
2.High strengh	660Mpa
3.Light weight	Aluminum alloy is lighter weight
4.Tightness tolerance	a) Inner diameter:±0.02mm b) Outer diameter:±0.02mm
5.Weight	±0.5%
6.Straightened to 0.12mm

Aluminum Alloy Tube ASTM Specification
ASTM B210 Drawn Seamless Aluminum Alloy Tube ASTM B221 Extruded Aluminum Alloy Tube ASTM B234 Drawn Seamless Aluminum Alloy Tube for Condensers & Heat Exchangers ASTM B234 Heat Exchanger Tube ASTM B234 Condenser Tube ASTM B235 Aluminum Alloy Extruded Tube ASTM B241 Seamless Extruded Aluminum Alloy Tube ASTM B313 Aluminum Alloy Round Welded Tube ASTM B317 Extruded Aluminum Alloy Tube	ASTM B345 Seamless Extruded Aluminum Alloy Tube ASTM B404 Seamless Aluminum Alloy Condenser & Heat Exchanger Tube with Integral Fins ASTM B404 Seamless Condenser Tube ASTM B404 Seamless Heat Exchanger Tube ASTM B429 Extruded Aluminum Alloy Structural Tube ASTM B483 Drawn Aluminum Alloy Tube ASTM B491 Extruded Round Coiled Aluminum Alloy Tube ASTM B547 Aluminum Alloy Formed and Arc Welded Round Tube

Aluminum Alloy Tube ASTM Specification

ASTM B210 Drawn Seamless Aluminum Alloy Tube
ASTM B221 Extruded Aluminum Alloy Tube
ASTM B234 Drawn Seamless Aluminum Alloy Tube for Condensers & Heat Exchangers
ASTM B234 Heat Exchanger Tube
ASTM B234 Condenser Tube
ASTM B235 Aluminum Alloy Extruded Tube
ASTM B241 Seamless Extruded Aluminum Alloy Tube
ASTM B313 Aluminum Alloy Round Welded Tube
ASTM B317 Extruded Aluminum Alloy Tube

ASTM B345 Seamless Extruded Aluminum Alloy Tube
ASTM B404 Seamless Aluminum Alloy Condenser & Heat Exchanger Tube with Integral Fins
ASTM B404 Seamless Condenser Tube
ASTM B404 Seamless Heat Exchanger Tube
ASTM B429 Extruded Aluminum Alloy Structural Tube
ASTM B483 Drawn Aluminum Alloy Tube
ASTM B491 Extruded Round Coiled Aluminum Alloy Tube
ASTM B547 Aluminum Alloy Formed and Arc Welded Round Tube

Types of 5083 Aluminium Tube:

5083 Aluminium Tube Inventory

Aluminium Seamless Tube
Aluminium Oval Tube
Aluminium Welded Tube
Aluminium Drawn Tube
ASTM B210 Tube
Aluminium Tube Manufacturer
Aluminium round Tube Manufacturers
Cold Drawn Seamless Tube Manufacturers China
Drawn Aluminium Tube
Aluminium Tube Malaysia
Seamless Aluminium Tube
Aluminium Alloy Tube
Aluminium Alloy Tube Manufacturers
Aluminium Square Tube
ISO 6430 Standard Square Type Aluminum Alloy Cylinder Barrel /Tube
Aluminum Alloy Cylinder Tube
Aluminum Alloy Barrel Tube
Aluminium Scaffold Tube
OEM ODM Custom seamless aluminum profile Tube
Aluminum Tube for Water heating system 6061
Aluminum Tube 5083 marine grade for shipbuilding 6061
Aluminum Tube for Fridge
Anodized Aluminum Round Tubes for Pneumatic Cylinders
Hot Sale Thick Wall Aluminium Tube
Aluminum Tube for aircraft seat material 6061
Aluminum Tube O H14/24 H18 H12/22 H26 6061

Thin wall 12mm pure aluminum Tube 1060
Thick Wall Large Diameter Aluminium Tube
aluminium Tubes 80mm long
1″ 12″ 16″ Diameter Aluminium Tube
Grey color aluminum Tube for roller blind
Hot rolled aluminium Tube
Cold rolled aluminium Tube
Cold drawn aluminium Tube
Elliptical aluminium Tube
Flat oval aluminium Tube
Flat sided oval aluminium Tube
Vector oval aluminium Tube
Bending aluminium Tube
25mm aluminium Tube
300mm diameter aluminium Tube
Refrigerator Aluminium Coil Tube
Aluminium Coil Tube
Precision aluminium Tube
small diameter extruded aluminum Tube
SCH40 B241 6061 T6
SCH80 B241 6061 T6
Schedule 40 anodized aluminum Tube
Schedule 80 anodized aluminum Tube
Schedule 40 aluminum Tube
Schedule 80 aluminum Tube

Standard Dimensions of 5083 Aluminium Tube

Standard dimensions

6 mm 5083 Aluminum Tube
8 mm 5083 Aluminum Tube
9 mm 5083 Aluminum Tube
10 mm 5083 Aluminum Tube
12 mm 5083 Aluminum Tube
12.7 mm 5083 Aluminum Tube
14 mm 5083 Aluminum Tube
16 mm 5083 Aluminum Tube
18 mm 5083 Aluminum Tube
19.05 mm 5083 Aluminum Tube
20 mm 5083 Aluminum Tube
22 mm 5083 Aluminum Tube
24 mm 5083 Aluminum Tube
25.4 mm 5083 Aluminum Tube
27 mm 5083 Aluminum Tube
30 mm 5083 Aluminum Tube
31.75 mm 5083 Aluminum Tube
33 mm 5083 Aluminum Tube
36 mm 5083 Aluminum Tube
38.1 mm 5083 Aluminum Tube
39 mm 5083 Aluminum Tube
42 mm 5083 Aluminum Tube
45 mm 5083 Aluminum Tube

50 mm 5083 Aluminum Tube
55 mm 5083 Aluminum Tube
60 mm 5083 Aluminum Tube
65 mm 5083 Aluminum Tube
70 mm 5083 Aluminum Tube
75 mm 5083 Aluminum Tube
80 mm 5083 Aluminum Tube
90 mm 5083 Aluminum Tube
100 mm 5083 Aluminum Tube
110 mm 5083 Aluminum Tube
120 mm 5083 Aluminum Tube
130 mm 5083 Aluminum Tube
140 mm 5083 Aluminum Tube
150 mm 5083 Aluminum Tube
160 mm 5083 Aluminum Tube
165 mm 5083 Aluminum Tube
180 mm 5083 Aluminum Tube
190.5 mm 5083 Aluminum Tube
210 mm 5083 Aluminum Tube
228 mm 5083 Aluminum Tube
250 mm 5083 Aluminum Tube
305 mm 5083 Aluminum Tube

5083 Aluminium Round Tube Weight Chart:

dsadasdas

Product	Diameter			Thickness	Weight
5083 Aluminium Round Tube		10 mm	x	0,7 mm	0,055 Kg/m
5083 Aluminium Round Tube		6 mm	x	0,8 mm	0,035 Kg/m
5083 Aluminium Round Tube		8 mm	x	0,8 mm	0,049 Kg/m
5083 Aluminium Round Tube		10 mm	x	0,8 mm	0,062 Kg/m
5083 Aluminium Round Tube	1/2″	12,7 mm	x	0,8 mm	0,081 Kg/m
5083 Aluminium Round Tube		19 mm	x	0,9 mm	0,138 Kg/m
5083 Aluminium Round Tube		6 mm	x	1 mm	0,042 Kg/m
5083 Aluminium Round Tube		8 mm	x	1 mm	0,059 Kg/m
5083 Aluminium Round Tube	3/8″	9,5 mm	x	1 mm	0,072 Kg/m
5083 Aluminium Round Tube		11 mm	x	1 mm	0,085 Kg/m
5083 Aluminium Round Tube		12 mm	x	1 mm	0,093 Kg/m
5083 Aluminium Round Tube	1/2″	12,7 mm	x	1 mm	0,099 Kg/m
5083 Aluminium Round Tube		14 mm	x	1 mm	0,110 Kg/m
5083 Aluminium Round Tube		16 mm	x	1 mm	0,127 Kg/m
5083 Aluminium Round Tube		19 mm	x	1 mm	0,153 Kg/m
5083 Aluminium Round Tube		22 mm	x	1 mm	0,178 Kg/m
5083 Aluminium Round Tube		25 mm	x	1 mm	0,204 Kg/m
5083 Aluminium Round Tube		28 mm	x	1 mm	0,229 Kg/m
5083 Aluminium Round Tube		32 mm	x	1 mm	0,263 Kg/m
5083 Aluminium Round Tube		10 mm	x	1,1 mm	0,083 Kg/m
5083 Aluminium Round Tube		19 mm	x	1,1 mm	0,167 Kg/m
5083 Aluminium Round Tube		17 mm	x	1,2 mm	0,161 Kg/m
5083 Aluminium Round Tube		19 mm	x	1,2 mm	0,181 Kg/m
5083 Aluminium Round Tube		22 mm	x	1,2 mm	0,212 Kg/m
5083 Aluminium Round Tube	3/8″	9,5 mm	x	1,3 mm	0,090 Kg/m
5083 Aluminium Round Tube		11 mm	x	1,3 mm	0,107 Kg/m
5083 Aluminium Round Tube		16 mm	x	1,5 mm	0,184 Kg/m
5083 Aluminium Round Tube		19 mm	x	1,5 mm	0,223 Kg/m
5083 Aluminium Round Tube		25 mm	x	1,5 mm	0,299 Kg/m
5083 Aluminium Round Tube		28 mm	x	1,5 mm	0,337 Kg/m
5083 Aluminium Round Tube		32 mm	x	1,5 mm	0,388 Kg/m
5083 Aluminium Round Tube		35 mm	x	1,5 mm	0,426 Kg/m
5083 Aluminium Round Tube		38 mm	x	1,5 mm	0,464 Kg/m
5083 Aluminium Round Tube		45 mm	x	1,5 mm	0,553 Kg/m
5083 Aluminium Round Tube		50 mm	x	1,5 mm	0,617 Kg/m
5083 Aluminium Round Tube		60 mm	x	1,5 mm	0,744 Kg/m
5083 Aluminium Round Tube		40 mm	x	1,7 mm	0,552 Kg/m
5083 Aluminium Round Tube		20 mm	x	2 mm	0,305 Kg/m
5083 Aluminium Round Tube		25 mm	x	2 mm	0,390 Kg/m
5083 Aluminium Round Tube		30 mm	x	2 mm	0,475 Kg/m
5083 Aluminium Round Tube		40 mm	x	2 mm	0,645 Kg/m
5083 Aluminium Round Tube		50 mm	x	2 mm	0,814 Kg/m
5083 Aluminium Round Tube		50 mm	x	2 mm	0,814 Kg/m
5083 Aluminium Round Tube		70 mm	x	2 mm	1,154 Kg/m
5083 Aluminium Round Tube		90 mm	x	2 mm	1,493 Kg/m
5083 Aluminium Round Tube		114 mm	x	2 mm	1,900 Kg/m
5083 Aluminium Round Tube	4″1⁄2	114,3 mm	x	2 mm	1,905 Kg/m
5083 Aluminium Round Tube		30 mm	x	2,5 mm	0,583 Kg/m
5083 Aluminium Round Tube		60 mm	x	2,5 mm	1,219 Kg/m
5083 Aluminium Round Tube		45 mm	x	3 mm	1,069 Kg/m
5083 Aluminium Round Tube		60 mm	x	3 mm	1,450 Kg/m
5083 Aluminium Round Tube		70 mm	x	3 mm	1,705 Kg/m
5083 Aluminium Round Tube		35 mm	x	4 mm	1,052 Kg/m
5083 Aluminium Round Tube		90 mm	x	5 mm	3,605 Kg/m

5083 Aluminium Square Tube Weight Chart:

dsadasdas

Product	Side		Thickness	Weight
5083 Aluminium Square Tube	16 mm	x	0,7 mm	0,116 Kg/m
5083 Aluminium Square Tube	16 mm	x	0,9 mm	0,147 Kg/m
5083 Aluminium Square Tube	19 mm	x	0,9 mm	0,176 Kg/m
5083 Aluminium Square Tube	12,5 mm	x	1 mm	0,124 Kg/m
5083 Aluminium Square Tube	16 mm	x	1 mm	0,162 Kg/m
5083 Aluminium Square Tube	19 mm	x	1 mm	0,194 Kg/m
5083 Aluminium Square Tube	20 mm	x	1 mm	0,205 Kg/m
5083 Aluminium Square Tube	25 mm	x	1 mm	0,259 Kg/m
5083 Aluminium Square Tube	12 mm	x	1,5 mm	0,170 Kg/m
5083 Aluminium Square Tube	20 mm	x	1,5 mm	0,300 Kg/m
5083 Aluminium Square Tube	30 mm	x	1,5 mm	0,462 Kg/m
5083 Aluminium Square Tube	40 mm	x	1,5 mm	0,624 Kg/m
5083 Aluminium Square Tube	50 mm	x	1,5 mm	0,786 Kg/m
5083 Aluminium Square Tube	20 mm	x	2 mm	0,389 Kg/m
5083 Aluminium Square Tube	40 mm	x	2 mm	0,821 Kg/m
5083 Aluminium Square Tube	60 mm	x	2 mm	1,253 Kg/m
5083 Aluminium Square Tube	65 mm	x	2 mm	1,361 Kg/m
5083 Aluminium Square Tube	100 mm	x	2 mm	2,117 Kg/m

Theorical Weights Table
The values presented on this table are theorical and they should be confirmed if you make an order.
We, may alter this table without notice.
All orders based on this table will be pending until confirmation by our commercial services.

5083 Aluminium Rectangular Tube Weight Chart:

dsadasdas

Product	A		B		Thickness	Weight
5083 Aluminium Rectangular Tube	30 mm	x	15 mm	x	1,5 mm	0,340 Kg/m
5083 Aluminium Rectangular Tube	40 mm	x	20 mm	x	1,5 mm	0,462 Kg/m
5083 Aluminium Rectangular Tube	50 mm	x	25 mm	x	1,5 mm	0,583 Kg/m
5083 Aluminium Rectangular Tube	60 mm	x	40 mm	x	2 mm	1,037 Kg/m
5083 Aluminium Rectangular Tube	65 mm	x	30 mm	x	1,5 mm	0,745 Kg/m
5083 Aluminium Rectangular Tube	80 mm	x	30 mm	x	1,5 mm	0,867 Kg/m
5083 Aluminium Rectangular Tube	80 mm	x	20 mm	x	2 mm	1,037 Kg/m
5083 Aluminium Rectangular Tube	85 mm	x	30 mm	x	1,8 mm	1,083 Kg/m
5083 Aluminium Rectangular Tube	100 mm	x	50 mm	x	4 mm	3,067 Kg/m

Standard Specification of 5083 Aluminium Tube:

Type of Tube	Alloy designation				Temper	Mechanical properties			Availability (mm)
Type of Tube	According to EN	According to DIN	According to PN	Chemical	Temper	Rm (min) (MPa)	Rp0,2 (MPa)	Hardness (HB)	Availability (mm)
Cast sawed Tube (rough surface intended for machining)	ENAW 5083	3.3547	PA13	AlMg4,5Mn0,7	Soft	250	120	75	Stock 20-300
Cast sawed precision milled Tube (machined surface, protective foil on the both-sides)	ENAW 5083	3.3547	PA13	AlMg4,5Mn0,7	Soft	250	120	75	Stock 5-120
Rolled Tube (common rolled surface)	ENAW 5083	3.3547	PA13	AlMg4,5Mn0,7	Soft	250	120	75	Stock 5-100

5083 Aluminium Tube Equivalent Grades:

China		U.S.A.	BRITAIN	CANADA	GERMANY	RUSSIA	I.S.O.	FRENCH
New IS	Old IS	(A.A.)	(B.S.)		(DIN)	–	–	–
54300	N8	5083	N8	D54S	Al-Mg-4.5 Mn	–	Al-Mg.5	5356

5083 Aluminium Tube Chemical Composition:

Alloy (ISS)		Equivalent alloy (A.A)	Copper		Magnesium		Silicon		Iron		*Managanese Others (Total)**			Remarks
Old	New	U.S.A	Min.	Max.	Min.	Max.	Min.	Max.	Min.	Max.	Max		Max.		Aluminum 99.0% Min.
N 8	54300	5083	—	0.1	4.0	4.9	—	0.4	0.7	0.5	1.0	0.4			Chromium (0.15-0.35)Either Mn or Cr. shall be present.

Aluminium 5083 Tube Mechanical Properties:

State	Specified thickness		Rm (MPa)		Rp0,2 (MPa)		A %		Bending radius		Hardness HBS
State	More than	Until	mini	maxi	mini	maxi	A 50	A	180°	90°	Hardness HBS
F	>2,5	150,0	275	–	–	–	–	–	–	–	–
O/H111	0,20,51,53,06,012,550,080,0120,0	0,51,53,06,012,550,080,0120,0150,0	275275275275275275270260255	350350350350350350345	125125125125125125115110105	–	1112131516	15141212	1,0 e1,0 e1,5 e	0,5 e1,0 e1,0 e1,5 e2,5 e	757575757575737069
H112	>6,012,540,0	12,540,080,0	275275270	–	125125125	–	12	1010	–	–	757573
H116	>6,03,06,012,540,0	3,06,012,540,080,0	305305305305285	–	215215215215200	–	81012	1010	3,0 e	2,0 e2,5 e4,0 e	8989898983
H12	0,20,51,53,06,012,5	0,51,53,06,012,540,0	315315315315315315	375375375375375375	250250250250250250	–	34567	6	–	–	949494949494
H14	0,20,51,53,06,012,5	0,51,53,06,012,525,0	340340340340340340	400400400400400400	280280280280280280	23334	3	–	–	–	102102102102102102
H16	0,20,51,53,0	0,51,53,04,0	360360360360	420420420420	300300300300	–	1222	–	–	–	108108108108
H22/H32	0,20,51,53,06,012,5	0,51,53,06,012,540,0	305305305305305305	380380380380380380	215215215215215215	–	567810	9	2,0 e2,0 e3,0 e	0,5 e1,5 e2,0 e2,5 e3,5 e	898989898989
H24/H34	0,20,51,53,06,012,5	0,51,53,06,012,525,0	340340340340340340	400400400400400400	250250250250250250	–	45678	7	–	1,0 e2,0 e2,5 e3,5 e4,5 e	999999999999
H26/H36	0,20,51,53,0	0,51,53,04,0	360360360360	420420420420	280280280280	–	2333	–	–	–	106106106106

Alloy Designation	UK Specifications	US Specifications	US Federal Specifications	European Specifications	Other
5083 A95083	BS N8 Alloy 5083	AMS 4056 5083-0	QQ-A-200/4 5083 QQ-A-250/6 5083	WS 3.3547	AlMg4.5Mn A-G4.5MC

AS/NZS 1734 Aluminium and aluminium alloys – Flat sheet, coiled sheet and plate.

Temper	0.2% Proof Stress, MPa min †	Tensile Strength, MPa	Elongation % min ‡
O (annealed)	125 – 200	275 – 350	14
H112	125	275	10
H116	215	305	10
H321	215 – 295	305 – 385	10

† For information only, proof stress is not specified or measured except by prior agreement
‡ Minimum elongation, actual value depends on thickness – thicker gauges have higher elongation

Equivalent Specifications

USA: AA 5083; UK: BS 5083; Germany: DIN AlMg4.5Mn; Europe: EN AW-A 5083; Japan: 5083; JIS A5083P; France: NF A5083; ISO: Al Mg4.5Mn0.7.

The properties in this data sheet meet Australian/New Zealand Standard AS/NZS 1734:1997 Aluminium and aluminium alloys – Flat sheet, coiled sheet and plate (equivalent to BS EN 573-1).

Alloy 5083 can be supplied to meet other national standards.

Typical Mechanical Properties
Temper	Tensile Strength	Yield Strength	Elongation
	KSI	KSI	%
O (annealed)	42	21	14
H112	43	23	10
H116	46	33	10
H321	46	33	10

Aluminum Alloy Heat Treatment Temper Designations for Tubes

Basic Aluminum Heat Treatment Designations

F As Fabricated
O Annealed
H Strain Hardened
W Solution Heat Treated
T Solution Heat Treated

Heat Treating T Temper Codes for Aluminium 5083 Tube

T1 – Cooled from an elevated temperature shaping process and naturally aged to a substantially stable condition.
T2 – Cooled from an elevated temperature shaping process, cold worked, and naturally aged to a substantially stable condition.
T3 – Solution heat treated, cold worked, and naturally aged to a substantially stable condition.
T4 – Solution heat treated, and naturally aged to a substantially stable condition.
T5 – Cooled from an elevated temperature shaping process then artificially aged.
T6 – Solution heat treated then artificially aged.
T7 – Solution heat treated then overaged/stabilized.
T8 – Solution heat treated, cold worked, then artificially aged.
T9 – Solution heat treated, artificially aged, then cold worked.
T10 – Cooled from an elevated temperature shaping process, cold worked, then artificially aged.

Additional digits may be used after the first T temper digit to indicate subsequent stress relieving by processes such as stretching, compressing, or a combination.

H Temper Strain Hardening Codes for Aluminium 5083 Tube

H1 – Strain hardened only
H2 – Strain hardened and partially annealed
H3 – Strain hardened and stabilized
H4 – Strain hardened and lacquered or painted. This assumes that thermal affects from the coating process affect the strain hardening; seldom encountered.

Application of 5083 Aluminium Tube

5083 Aluminium Tube is the most widely used form of Industrial Aluminium. Aluminium 5083 Tube find applications in various industries such as manufacturing cans and packages, transportation, home appliances, building and construction.

dsadasdas
