6063 Aluminium Tube

Short Description:


  • Specifications: ASTM B210
  • Material: 1060, 1200, 1100, 2024, 2124
  • Temper: O, H12, H14, H16, H18
  • Surface: Polished, hair line, brush
  • Product Detail

    FAQ

    Product Tags

    Aluminium alloy 6063 Tube is a medium strength alloy commonly referred to as an architectural alloy. 6063 Aluminium Tube is normally used in intricate extrusions. 6063 Aluminium Tubes have a good surface finish, high corrosion resistance, is readily suited to welding and can be easily anodised.

    Sasa Aluminium is the leading manufacturer and exporter of 6063 Aluminium Tube, Oval Aluminium 6063 Tube, and 6063 Aluminium Square Extruded Tube that are utilized in divers industries such as aerospace, medical, electronics, firearms and industrial. Supplier of ASTM B210 6063 Drawn Seamless Aluminum Alloy Tube in Tempers manufactured in accordance with international standards ASTM B210, ASME SB210, ASTM B221/ B235 /B241 B313 /B317 /B345 B404 /B429 /B483 /B491 /B547, check 6063 Aluminium Drawn Seamless Tube. Wholesale Trader of 6063 Extruded Aluminum Tube offered by Sasa Aluminium , China.

    Specifications of 6063 Aluminium Tube:
    Aluminium Alloy ASTM B210, ASTM B234, ASTM B241, ASTM B483; GB/T 6893-2000, GB/T 4437-2000: JIS H4080-2006
    6063 Aluminium Tube American Specifications: ASTM B210 drawn, ASTM B241 extruded, AMS 4173, AMS 4080, AMS 4082, AMS4083, WW-T-700/6
    6063 Aluminium Tube British Specifications H20, HE 20
    Material 1060, 1200, 1100, 2024, 2124, 3003, 3004, 5050, 5083, 5154, 5454, 5652, 5086, 5056, 5754, 6061, 6062, 6063, 7075, etc.
    6063 Aluminium Tube Standard  ASTM, ASME, AMS, ASTM B210M, GB/T 3191, JIS H4040, ASTM B210, AMS QQ-A-200/9
    Aluminium 6063 Tube Temper O, H12, H14, H16, H18, H22, H24, H26, H32, H112
    Aluminium 6063 Tube Form 6063 Aluminium extruded, seamless, drawn and coiled Tube in Black & Bright Finish
    Aluminium 6063 Tube Sizes 1/8″ – 16″ (3mm – 2500mm) OD
    .020″ – 2″ (.2mm – 150mm) wall
    (1m-12m) Length
    Machinability Fair
    Weldability Good
    Corrosion Resistance Good
    Aluminium 6063 Tube Bright, Polish & Black
    Aluminium 6063 Tube Surface Anodized, Oxidation, electrophoresis coating, fluorine carbon spraying, powder coating, wood grain transfer printing, mechanical drawing, mechanical polishing, sand blasting, Polished, hair line, brush,
    Mill finished, Bright finish, paper interleaved
    Surface treatment Nature, Black painting, Transparent oil, rust-proof black oil or hot-dip galvanized
    Aluminium 6063 Tube Delivery Time 10-30 days after receiving the prepayment
    Aluminium 6063 Tube Packaging Details Export standard package: bundled wooden box, suit for all kinds of transport or be required.
    ASTM B210 Alloy 6063 Tube Outer packing Export standard, wooden pallet
    Here are 6 different types of finishes for extruded 6063 aluminum Tube:
    1. Anodizing
    2. Powder Coating
    3. Liquid Coatings
    4. Chemical Finishes
    5. Mechanical Finishes
    6. Pretreatment
    Applications Bicycle Parts, aircraft ducting, wheelchair frames, telescopes, machined bushes, air cylinders
    We Export Aluminium 6063 Tube to Singapore, Indonesia, Ukraine, Korea, Thailand, Vietnam, Saudi Arabia, Brazil, Spain, Canada, USA, Egypt, Iran, China, Kuwait, Dubai, Oman, Kuwait, Peru, Mexico, Iraq, Russia, Malaysia, etc.



    Aluminum Tube Features:
    1.Materials 7001-T6/T9, 7075-T9 alloy
    2.High strengh 660Mpa
    3.Light weight Aluminum alloy is lighter weight
    4.Tightness tolerance a) Inner diameter:±0.02mm b) Outer diameter:±0.02mm
    5.Weight ±0.5%
    6.Straightened to 0.12mm



    Aluminum Alloy Tube ASTM Specification
    • ASTM B210 Drawn Seamless Aluminum Alloy Tube
    • ASTM B221 Extruded Aluminum Alloy Tube
    • ASTM B234 Drawn Seamless Aluminum Alloy Tube for Condensers & Heat Exchangers
    • ASTM B234 Heat Exchanger Tube
    • ASTM B234 Condenser Tube
    • ASTM B235 Aluminum Alloy Extruded Tube
    • ASTM B241 Seamless Extruded Aluminum Alloy Tube
    • ASTM B313 Aluminum Alloy Round Welded Tube
    • ASTM B317 Extruded Aluminum Alloy Tube
    • ASTM B345 Seamless Extruded Aluminum Alloy Tube
    • ASTM B404 Seamless Aluminum Alloy Condenser & Heat Exchanger Tube with Integral Fins
    • ASTM B404 Seamless Condenser Tube
    • ASTM B404 Seamless Heat Exchanger Tube
    • ASTM B429 Extruded Aluminum Alloy Structural Tube
    • ASTM B483 Drawn Aluminum Alloy Tube
    • ASTM B491 Extruded Round Coiled Aluminum Alloy Tube
    • ASTM B547 Aluminum Alloy Formed and Arc Welded Round Tube

    Types of 6063 Aluminium Tube:

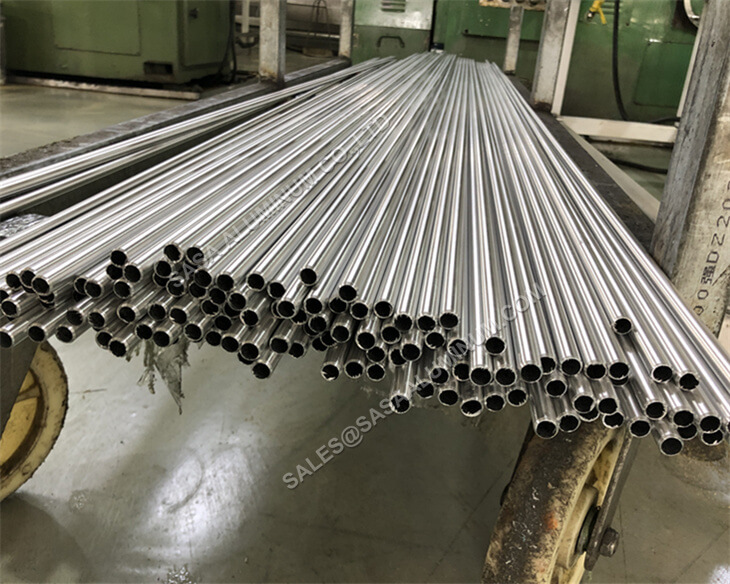

     6063 Aluminium Tube (1) 6063 Aluminium Tube (3)

    6063 Aluminium Tube Inventory

    • Aluminium Seamless Tube
    • Aluminium Oval Tube
    • Aluminium Welded Tube
    • Aluminium Drawn Tube
    • ASTM B210 Tube
    • Aluminium Tube Manufacturer
    • Aluminium round Tube Manufacturers
    • Cold Drawn Seamless Tube Manufacturers China
    • Drawn Aluminium Tube
    • Aluminium Tube Malaysia
    • Seamless Aluminium Tube
    • Aluminium Alloy Tube
    • Aluminium Alloy Tube Manufacturers
    • Aluminium Square Tube
    • ISO 6430 Standard Square Type Aluminum Alloy Cylinder Barrel /Tube
    • Aluminum Alloy Cylinder Tube
    • Aluminum Alloy Barrel Tube
    • Aluminium Scaffold Tube
    • OEM ODM Custom seamless aluminum profile Tube
    • Aluminum Tube for Water heating system 6061
    • Aluminum Tube 5083 marine grade for shipbuilding 6061
    • Aluminum Tube for Fridge
    • Anodized Aluminum Round Tubes for Pneumatic Cylinders
    • Hot Sale Thick Wall Aluminium Tube
    • Aluminum Tube for aircraft seat material 6061
    • Aluminum Tube O H14/24 H18 H12/22 H26 6061
    • Thin wall 12mm pure aluminum Tube 1060
    • Thick Wall Large Diameter Aluminium Tube
    • aluminium Tubes 80mm long
    • 1″ 12″ 16″ Diameter Aluminium Tube
    • Grey color aluminum Tube for roller blind
    • Hot rolled aluminium Tube
    • Cold rolled aluminium Tube
    • Cold drawn aluminium Tube
    • Elliptical aluminium Tube
    • Flat oval aluminium Tube
    • Flat sided oval aluminium Tube
    • Vector oval aluminium Tube
    • Bending aluminium Tube
    • 25mm aluminium Tube
    • 300mm diameter aluminium Tube
    • Refrigerator Aluminium Coil Tube
    • Aluminium Coil Tube
    • Precision aluminium Tube
    • small diameter extruded aluminum Tube
    • SCH40 B241 6061 T6
    • SCH80 B241 6061 T6
    • Schedule 40 anodized aluminum Tube
    • Schedule 80 anodized aluminum Tube
    • Schedule 40 aluminum Tube
    • Schedule 80 aluminum Tube



    Standard Dimensions of 6063 Aluminium Tube

    Standard dimensions

    • 6 mm 6063 Aluminum Tube
    • 8 mm 6063 Aluminum Tube
    • 9 mm 6063 Aluminum Tube
    • 10 mm 6063 Aluminum Tube
    • 12 mm 6063 Aluminum Tube
    • 12.7 mm 6063 Aluminum Tube
    • 14 mm 6063 Aluminum Tube
    • 16 mm 6063 Aluminum Tube
    • 18 mm 6063 Aluminum Tube
    • 19.05 mm 6063 Aluminum Tube
    • 20 mm 6063 Aluminum Tube
    • 22 mm 6063 Aluminum Tube
    • 24 mm 6063 Aluminum Tube
    • 25.4 mm 6063 Aluminum Tube
    • 27 mm 6063 Aluminum Tube
    • 30 mm 6063 Aluminum Tube
    • 31.75 mm 6063 Aluminum Tube
    • 33 mm 6063 Aluminum Tube
    • 36 mm 6063 Aluminum Tube
    • 38.1 mm 6063 Aluminum Tube
    • 39 mm 6063 Aluminum Tube
    • 42 mm 6063 Aluminum Tube
    • 45 mm 6063 Aluminum Tube
    • 50 mm 6063 Aluminum Tube
    • 55 mm 6063 Aluminum Tube
    • 60 mm 6063 Aluminum Tube
    • 65 mm 6063 Aluminum Tube
    • 70 mm 6063 Aluminum Tube
    • 75 mm 6063 Aluminum Tube
    • 80 mm 6063 Aluminum Tube
    • 90 mm 6063 Aluminum Tube
    • 100 mm 6063 Aluminum Tube
    • 110 mm 6063 Aluminum Tube
    • 120 mm 6063 Aluminum Tube
    • 130 mm 6063 Aluminum Tube
    • 140 mm 6063 Aluminum Tube
    • 150 mm 6063 Aluminum Tube
    • 160 mm 6063 Aluminum Tube
    • 165 mm 6063 Aluminum Tube
    • 180 mm 6063 Aluminum Tube
    • 190.5 mm 6063 Aluminum Tube
    • 210 mm 6063 Aluminum Tube
    • 228 mm 6063 Aluminum Tube
    • 250 mm 6063 Aluminum Tube
    • 305 mm 6063 Aluminum Tube



    6063 Aluminium Round Tube Weight Chart:

    dsadasdas

    Product Diameter   Thickness Weight
    6063 Aluminium Round Tube   10 mm x 0,7 mm 0,055 Kg/m
    6063 Aluminium Round Tube   6 mm x 0,8 mm 0,035 Kg/m
    6063 Aluminium Round Tube   8 mm x 0,8 mm 0,049 Kg/m
    6063 Aluminium Round Tube   10 mm x 0,8 mm 0,062 Kg/m
    6063 Aluminium Round Tube  1/2″ 12,7 mm x 0,8 mm 0,081 Kg/m
    6063 Aluminium Round Tube   19 mm x 0,9 mm 0,138 Kg/m
    6063 Aluminium Round Tube   6 mm x 1 mm 0,042 Kg/m
    6063 Aluminium Round Tube   8 mm x 1 mm 0,059 Kg/m
    6063 Aluminium Round Tube 3/8″ 9,5 mm x 1 mm 0,072 Kg/m
    6063 Aluminium Round Tube   11 mm x 1 mm 0,085 Kg/m
    6063 Aluminium Round Tube   12 mm x 1 mm 0,093 Kg/m
    6063 Aluminium Round Tube  1/2″ 12,7 mm x 1 mm 0,099 Kg/m
    6063 Aluminium Round Tube   14 mm x 1 mm 0,110 Kg/m
    6063 Aluminium Round Tube   16 mm x 1 mm 0,127 Kg/m
    6063 Aluminium Round Tube   19 mm x 1 mm 0,153 Kg/m
    6063 Aluminium Round Tube   22 mm x 1 mm 0,178 Kg/m
    6063 Aluminium Round Tube   25 mm x 1 mm 0,204 Kg/m
    6063 Aluminium Round Tube   28 mm x 1 mm 0,229 Kg/m
    6063 Aluminium Round Tube   32 mm x 1 mm 0,263 Kg/m
    6063 Aluminium Round Tube   10 mm x 1,1 mm 0,083 Kg/m
    6063 Aluminium Round Tube   19 mm x 1,1 mm 0,167 Kg/m
    6063 Aluminium Round Tube   17 mm x 1,2 mm 0,161 Kg/m
    6063 Aluminium Round Tube   19 mm x 1,2 mm 0,181 Kg/m
    6063 Aluminium Round Tube   22 mm x 1,2 mm 0,212 Kg/m
    6063 Aluminium Round Tube 3/8″ 9,5 mm x 1,3 mm 0,090 Kg/m
    6063 Aluminium Round Tube   11 mm x 1,3 mm 0,107 Kg/m
    6063 Aluminium Round Tube   16 mm x 1,5 mm 0,184 Kg/m
    6063 Aluminium Round Tube   19 mm x 1,5 mm 0,223 Kg/m
    6063 Aluminium Round Tube   25 mm x 1,5 mm 0,299 Kg/m
    6063 Aluminium Round Tube   28 mm x 1,5 mm 0,337 Kg/m
    6063 Aluminium Round Tube   32 mm x 1,5 mm 0,388 Kg/m
    6063 Aluminium Round Tube   35 mm x 1,5 mm 0,426 Kg/m
    6063 Aluminium Round Tube   38 mm x 1,5 mm 0,464 Kg/m
    6063 Aluminium Round Tube   45 mm x 1,5 mm 0,553 Kg/m
    6063 Aluminium Round Tube   50 mm x 1,5 mm 0,617 Kg/m
    6063 Aluminium Round Tube   60 mm x 1,5 mm 0,744 Kg/m
    6063 Aluminium Round Tube   40 mm x 1,7 mm 0,552 Kg/m
    6063 Aluminium Round Tube   20 mm x 2 mm 0,305 Kg/m
    6063 Aluminium Round Tube   25 mm x 2 mm 0,390 Kg/m
    6063 Aluminium Round Tube   30 mm x 2 mm 0,475 Kg/m
    6063 Aluminium Round Tube   40 mm x 2 mm 0,645 Kg/m
    6063 Aluminium Round Tube   50 mm x 2 mm 0,814 Kg/m
    6063 Aluminium Round Tube   50 mm x 2 mm 0,814 Kg/m
    6063 Aluminium Round Tube   70 mm x 2 mm 1,154 Kg/m
    6063 Aluminium Round Tube   90 mm x 2 mm 1,493 Kg/m
    6063 Aluminium Round Tube   114 mm x 2 mm 1,900 Kg/m
    6063 Aluminium Round Tube 4″1⁄2 114,3 mm x 2 mm 1,905 Kg/m
    6063 Aluminium Round Tube   30 mm x 2,5 mm 0,583 Kg/m
    6063 Aluminium Round Tube   60 mm x 2,5 mm 1,219 Kg/m
    6063 Aluminium Round Tube   45 mm x 3 mm 1,069 Kg/m
    6063 Aluminium Round Tube   60 mm x 3 mm 1,450 Kg/m
    6063 Aluminium Round Tube   70 mm x 3 mm 1,705 Kg/m
    6063 Aluminium Round Tube   35 mm x 4 mm 1,052 Kg/m
    6063 Aluminium Round Tube   90 mm x 5 mm 3,605 Kg/m



    6063 Aluminium Square Tube Weight Chart:

    dsadasdas

    Product Side   Thickness Weight
    6063 Aluminium Square Tube 16 mm x 0,7 mm 0,116 Kg/m
    6063 Aluminium Square Tube 16 mm x 0,9 mm 0,147 Kg/m
    6063 Aluminium Square Tube 19 mm x 0,9 mm 0,176 Kg/m
    6063 Aluminium Square Tube 12,5 mm x 1 mm 0,124 Kg/m
    6063 Aluminium Square Tube 16 mm x 1 mm 0,162 Kg/m
    6063 Aluminium Square Tube 19 mm x 1 mm 0,194 Kg/m
    6063 Aluminium Square Tube 20 mm x 1 mm 0,205 Kg/m
    6063 Aluminium Square Tube 25 mm x 1 mm 0,259 Kg/m
    6063 Aluminium Square Tube 12 mm x 1,5 mm 0,170 Kg/m
    6063 Aluminium Square Tube 20 mm x 1,5 mm 0,300 Kg/m
    6063 Aluminium Square Tube 30 mm x 1,5 mm 0,462 Kg/m
    6063 Aluminium Square Tube 40 mm x 1,5 mm 0,624 Kg/m
    6063 Aluminium Square Tube 50 mm x 1,5 mm 0,786 Kg/m
    6063 Aluminium Square Tube 20 mm x 2 mm 0,389 Kg/m
    6063 Aluminium Square Tube 40 mm x 2 mm 0,821 Kg/m
    6063 Aluminium Square Tube 60 mm x 2 mm 1,253 Kg/m
    6063 Aluminium Square Tube 65 mm x 2 mm 1,361 Kg/m
    6063 Aluminium Square Tube 100 mm x 2 mm 2,117 Kg/m

    Theorical Weights Table
    The values presented on this table are theorical and they should be confirmed if you make an order.
    We, may alter this table without notice.
    All orders based on this table will be pending until confirmation by our commercial services.

    6063 Aluminium Rectangular Tube Weight Chart:

    dsadasdas

    Product A   B   Thickness Weight
    6063 Aluminium Rectangular Tube 30 mm x 15 mm x 1,5 mm 0,340 Kg/m
    6063 Aluminium Rectangular Tube 40 mm x 20 mm x 1,5 mm 0,462 Kg/m
    6063 Aluminium Rectangular Tube 50 mm x 25 mm x 1,5 mm 0,583 Kg/m
    6063 Aluminium Rectangular Tube 60 mm x 40 mm x 2 mm 1,037 Kg/m
    6063 Aluminium Rectangular Tube 65 mm x 30 mm x 1,5 mm 0,745 Kg/m
    6063 Aluminium Rectangular Tube 80 mm x 30 mm x 1,5 mm 0,867 Kg/m
    6063 Aluminium Rectangular Tube 80 mm x 20 mm x 2 mm 1,037 Kg/m
    6063 Aluminium Rectangular Tube 85 mm x 30 mm x 1,8 mm 1,083 Kg/m
    6063 Aluminium Rectangular Tube 100 mm x 50 mm x 4 mm 3,067 Kg/m



    Standard Specification of 6063 Aluminium Tube:
    European Standard BS (OLD) USA (AA) GERMANY (DIN) ISO IS Canadian
    EN AW-6063 HE9 6063 AlMgSi0.5 AlMg0.7Si 63400 50S



    6063 Aluminium Tube Equivalent Grades:
    China
    U.S.A.
    BRITAIN
    CANADA GERMANY
    RUSSIA
    I.S.O.
    FRENCH
    New IS Old IS (A.A.)
    (B.S.)
      (DIN)
    63400 H9 6063 H9 50S Al-Mg-Si 0.5 Al-Si-1 Mg 6081



    6063 Aluminium Tube Chemical Composition:
    Alloy (ISS) Equivalent alloy (A.A) Copper Magnesium Silicon Iron Managanese Others* (Total) Remarks
    Old New U.S.A Min. Max. Min. Max. Min. Max. Min. Max. Max Max. Aluminum 99.0% Min.
    H 9 63400 6063 0.1 0.4 0.9 0.3 0.7 0.6 0.3 0.4



    Aluminium 6063 Tube Mechanical Properties:
    Mechanical Properties
    Hardness, Brinell 73 73  AA; Typical; 500 g load; 10 mm ball
    Hardness, Knoop 96 96  Converted from Brinell Hardness Value
    Hardness, Vickers 83 83  Converted from Brinell Hardness Value
    Ultimate Tensile Strength 241 MPa 35000 psi  AA; Typical
    Tensile Yield Strength 214 MPa 31000 psi  AA; Typical
    Elongation at Break 12 % 12 %  AA; Typical; 1/16 in. (1.6 mm) Thickness
    Modulus of Elasticity 68.9 GPa 10000 ksi  AA; Typical; Average of tension and compression. Compression modulus is about 2% greater than tensile modulus.
    Ultimate Bearing Strength 434 MPa 62900 psi  Edge distance/pin diameter = 2.0
    Bearing Yield Strength 276 MPa 40000 psi  Edge distance/pin diameter = 2.0
    Poisson’s Ratio 0.33 0.33
    Fatigue Strength 68.9 MPa 10000 psi  AA; 500,000,000 cycles completely reversed stress; RR Moore machine/specimen
    Machinability 50 % 50 %  0-100 Scale of Aluminum Alloys
    Shear Modulus 25.8 GPa 3740 ksi
    Shear Strength 152 MPa 22000 psi  AA; Typical



    Alloy Designation UK
    Specifications
    US
    Specifications
    US Federal
    Specifications
    European
    Specifications
    Other
    6063 BS H9 Alloy 6063
    DTD 372B 6063
    AMS 4156 6063-T6 Extrusions QQ-A-200/9 6063
    MIL-P-25995
    ASTM B210
    ASTM B221
    ASTM B241
    ASTM B345
    ASTM B429
    ASTM B483
    ASTM B491


    Aluminum Alloy Heat Treatment Temper Designations for Tubes

    Basic Aluminum Heat Treatment Designations

    • F As Fabricated
    • O Annealed
    • H Strain Hardened
    • W Solution Heat Treated
    • T Solution Heat Treated

    Heat Treating T Temper Codes for Aluminium 6063 Tube

    • T1 – Cooled from an elevated temperature shaping process and naturally aged to a substantially stable condition.
    • T2 – Cooled from an elevated temperature shaping process, cold worked, and naturally aged to a substantially stable condition.
    • T3 – Solution heat treated, cold worked, and naturally aged to a substantially stable condition.
    • T4 – Solution heat treated, and naturally aged to a substantially stable condition.
    • T5 – Cooled from an elevated temperature shaping process then artificially aged.
    • T6 – Solution heat treated then artificially aged.
    • T7 – Solution heat treated then overaged/stabilized.
    • T8 – Solution heat treated, cold worked, then artificially aged.
    • T9 – Solution heat treated, artificially aged, then cold worked.
    • T10 – Cooled from an elevated temperature shaping process, cold worked, then artificially aged.

    Additional digits may be used after the first T temper digit to indicate subsequent stress relieving by processes such as stretching, compressing, or a combination.

    H Temper Strain Hardening Codes for Aluminium 6063 Tube

    • H1 – Strain hardened only
    • H2 – Strain hardened and partially annealed
    • H3 – Strain hardened and stabilized
    • H4 – Strain hardened and lacquered or painted. This assumes that thermal affects from the coating process affect the strain hardening; seldom encountered.

    6063 Aluminium Tube Marking & Packaging

    Packing Details: Standard export seaworthy package.
    Delivery Details: About 7~10 days after receive the advance payment.

    Application of 6063 Aluminium Tube

    6063 Aluminium Tube is the most widely used form of Industrial Aluminium. Aluminium 6063 Tube find applications in various industries such as manufacturing cans and packages, transportation, home appliances, building and construction.

    dsadasdas


  • Previous:
  • Next:

  • Related Products
