6063 Aluminium Pipe

Short Description:


Product Detail

FAQ

Product Tags

6063 aluminum pipe is made from a popular heat treatable magnesium/silicon alloy. 6063 aluminium alloy pipe has excellent corrosion resistance and weld- ability. Due to its finer grain structure, this is an excellent alloy choice for anodizing. 6063 seamless aluminum pipe has the same excellent corrosion resistance, strength, workability and weldability properties as 6061 aluminum pipe.

There are 2 types of 6063 Aluminium Pipe:

1) 6063 Aluminium Extruded Pipe: Aluminium 6063 Extruded Pipe, formed by hot extruding through a die, is available as a seamless or structural grade product.
2) 6063 Aluminium Drawn Pipe: Aluminium 6063 Drawn Pipe is a IS 63400 seamless extruded Pipe is brought to final size by drawing through a die.

6063 Aluminium Pipe ASTM B210/ B221/ B235 /B241 B313 /B317 /B345 B404 /B429 /B483 /B491 /B547 international standards

Sasa Aluminium Incorporation is the leading manufacturer and exporter of 6063 Aluminium Pipe, Oval Aluminium 6063 Pipe, and 6063 Aluminium Square Extruded Pipe that are utilized in divers industries such as aerospace, medical, electronics, firearms and industrial. Supplier of ASTM B210 6063 Drawn Seamless Aluminum Alloy Pipe in Tempers manufactured in accordance with international standards ASTM B210, ASME SB210, ASTM B221/ B235 /B241 B313 /B317 /B345 B404 /B429 /B483 /B491 /B547, check 6063 Aluminium Drawn Seamless Pipe. Wholesale Trader of 6063 Extruded Aluminum Pipe offered by Sasa Aluminium , China.

Stockist of ASTM B234 6063 Drawn Seamless Condenser Pipe, Condenser 6063 Aluminum Pipe for Heat Exchangers, ASTM B235 6063 Aluminium Extruded Pipe, ASTM B241 6063 Aluminium Seamless Extruded Pipe, 6063 Mill Finish Round Welded Pipe, ASTM B313 6063 Aluminium Welded Pipe, ASTM B317 6063 Aluminium Pipe, ASTM B345 Seamless Extruded Pipe, Aluminum ASTM B404 Seamless Heat Exchanger Pipe, Aluminum ASTM B429 Extruded Structural Pipe, ASTM B483 Drawn Aluminum Pipe, ASTM B547 Aluminum Alloy Welded Pipe, / Aluminium Pipe in China.

Aluminium 6063 Pipe Manufacturer, 6063 Aluminium Cold Drawn Seamless Pipe Suppliers in UNS A96063 Drawn Aluminium Pipe dealers in China, 6063 Seamless Aluminium Pipe Suppliers in Best Price of EN AW 6063 Aluminium Alloy Pipe

6063 Aluminium Square Pipe Suppliers in China, 6063 Aluminium Barrel Pipe Supplier Singapore, Dealer & Distributor of All 6063 Aluminium Alloy Scaffold Pipe Grades, Stockholder of 6063 Anodized Aluminum Round Pipe offer Best Price in China & China, Manufacturer of Thick Wall 6063 Aluminium Pipe

Aluminium Alloy ASTM B210, ASTM B234, ASTM B241, ASTM B483; GB/T 6893-2000, GB/T 4437-2000: JIS H4080-2006
6063 Aluminium Pipe American Specifications: ASTM B210 drawn, ASTM B241 extruded, AMS 4173, AMS 4080, AMS 4082, AMS4083, WW-T-700/6
6063 Aluminium Pipe British Specifications H20, HE 20
Material 1060, 1200, 1100, 2024, 2124, 3003, 3004, 5050, 5083, 5154, 5454, 5652, 5086, 5056, 5754, 6061, 6062, 6063, 7075, etc.
6063 Aluminium Pipe Standard  ASTM, ASME, AMS, ASTM B210M, GB/T 3191, JIS H4040, ASTM B210, AMS QQ-A-200/9
Aluminium 6063 Pipe Temper O, H12, H14, H16, H18, H22, H24, H26, H32, H112
Aluminium 6063 Pipe Form 6063 Aluminium extruded, seamless, drawn and coiled Pipe in Black & Bright Finish
Aluminium 6063 Pipe Sizes 1/8″ – 16″ (3mm – 2500mm) OD
.020″ – 2″ (.2mm – 150mm) wall
(1m-12m) Length
Machinability Fair
Weldability Good
Corrosion Resistance Good
Aluminium 6063 Pipe Bright, Polish & Black
Aluminium 6063 Pipe Surface Anodized, Oxidation, electrophoresis coating, fluorine carbon spraying, powder coating, wood grain transfer printing, mechanical drawing, mechanical polishing, sand blasting, Polished, hair line, brush,
Mill finished, Bright finish, paper interleaved
Surface treatment Nature, Black painting, Transparent oil, rust-proof black oil or hot-dip galvanized
Aluminium 6063 Pipe Delivery Time 10-30 days after receiving the prepayment
Aluminium 6063 Pipe Packaging Details Export standard package: bundled wooden box, suit for all kinds of transport or be required.
ASTM B210 Alloy 6063 Pipe Outer packing Export standard, wooden pallet
Here are 6 different types of finishes for extruded 6063 aluminum Pipe:
  1. Anodizing
  2. Powder Coating
  3. Liquid Coatings
  4. Chemical Finishes
  5. Mechanical Finishes
  6. Pretreatment
Applications Bicycle Parts, aircraft ducting, wheelchair frames, telescopes, machined bushes, air cylinders
We Export Aluminium 6063 Pipe to Singapore, Indonesia, Ukraine, Korea, Thailand, Vietnam, Saudi Arabia, Brazil, Spain, Canada, USA, Egypt, Iran, China, Kuwait, Dubai, Oman, Kuwait, Peru, Mexico, Iraq, Russia, Malaysia, etc.
Aluminum Pipe Features:
1.Materials 7001-T6/T9, 7075-T9 alloy
2.High strengh 660Mpa
3.Light weight Aluminum alloy is lighter weight
4.Tightness tolerance a) Inner diameter:±0.02mm b) Outer diameter:±0.02mm
5.Weight ±0.5%
6.Straightened to 0.12mm
Aluminum Alloy Pipe ASTM Specification
  • ASTM B210 Drawn Seamless Aluminum Alloy Pipe
  • ASTM B221 Extruded Aluminum Alloy Pipe
  • ASTM B234 Drawn Seamless Aluminum Alloy Pipe for Condensers & Heat Exchangers
  • ASTM B234 Heat Exchanger Pipe
  • ASTM B234 Condenser Pipe
  • ASTM B235 Aluminum Alloy Extruded Pipe
  • ASTM B241 Seamless Extruded Aluminum Alloy Pipe
  • ASTM B313 Aluminum Alloy Round Welded Pipe
  • ASTM B317 Extruded Aluminum Alloy Pipe
  • ASTM B345 Seamless Extruded Aluminum Alloy Pipe
  • ASTM B404 Seamless Aluminum Alloy Condenser & Heat Exchanger Pipe with Integral Fins
  • ASTM B404 Seamless Condenser Pipe
  • ASTM B404 Seamless Heat Exchanger Pipe
  • ASTM B429 Extruded Aluminum Alloy Structural Pipe
  • ASTM B483 Drawn Aluminum Alloy Pipe
  • ASTM B491 Extruded Round Coiled Aluminum Alloy Pipe
  • ASTM B547 Aluminum Alloy Formed and Arc Welded Round Pipe

Types of 6063 Aluminium Pipe

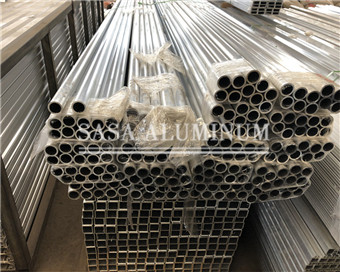

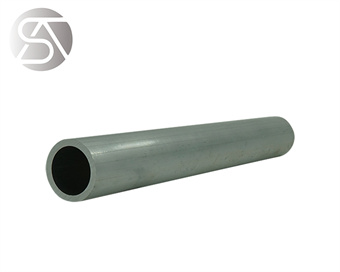

6063 Aluminium Pipe (3) 6063 Aluminium Pipe (2)

6063 Aluminium Pipe Inventory

  • Aluminium 6063 Seamless Pipe
  • 6063 Aluminium Oval Pipe
  • Aluminium 6063 Welded Pipe
  • 6063 Aluminium Drawn Pipe
  • 6063 ASTM B210 Pipe
  • 6063 Aluminium Pipe Manufacturer
  • 6063 Aluminium round Pipe Manufacturers
  • 6063 Cold Drawn Seamless Pipe Manufacturers China
  • Drawn Aluminium 6063 Pipe
  • 6063 Aluminium Pipe Malaysia
  • Seamless Aluminium 6063 Pipe
  • Aluminium Alloy 6063 Pipe
  • Aluminium Alloy 6063 Pipe Manufacturers
  • 6063 Aluminium Square Pipe
  • ISO 6430 Standard Square Type Aluminum Alloy 6063 Cylinder Barrel /Pipe
  • Aluminum Alloy 6063 Cylinder Pipe
  • Aluminum Alloy 6063 Barrel Pipe
  • Aluminium 6063 Scaffold Pipe
  • OEM ODM Custom seamless aluminum 6063 Pipe
  • 6063 Aluminum Pipe for Water heating system
  • Aluminum Pipe 6063 marine grade for shipbuilding
  • 6063 Aluminum Pipe for Fridge
  • Anodized Aluminum 6063 Round Pipes for Pneumatic Cylinders
  • Hot Sale Thick Wall 6063 Aluminium Pipe
  • Aluminum Pipe for aircraft seat material 6063
  • Aluminum Pipe O H14/24 H18 H12/22 H26 6063
  • 6063 Aluminum Alloy HE30 Pipe
  • 6063 FRP Aluminum Pipe
  • 6063 Aluminum Alloy Pipe
  • 6063 Aluminum Rectangular Pipe
  • ASTM/ ASME SB 210 6063 Pipe
  • 6063 Aluminum Round Pipes
  • Thin wall 12mm pure aluminum Pipe 6063
  • Thick Wall Large Diameter 6063 Aluminium Pipe
  • 6063 aluminium Pipes 80mm long
  • 1″ 12″ 16″ Diameter 6063 Aluminium Pipe
  • Grey color 6063 aluminum Pipe for roller blind
  • Hot rolled 6063 aluminium Pipe
  • 6063 Cold rolled aluminium Pipe
  • 6063 Cold drawn aluminium Pipe
  • Elliptical 6063 aluminium Pipe
  • Flat oval aluminium 6063 Pipe
  • Flat sided oval aluminium 6063 Pipe
  • Vector oval aluminium 6063 Pipe
  • Bending aluminium 6063 Pipe
  • 25mm aluminium 6063 Pipe
  • 300mm diameter aluminium 6063 Pipe
  • Refrigerator 6063 Aluminium Coil Pipe
  • 6063 Aluminium Coil Pipe
  • Precision aluminium 6063 Pipe
  • Small diameter extruded 6063 aluminum Pipe
  • SCH40 B241 6063 T6
  • SCH80 B241 6063 T6
  • Schedule 40 anodized 6063 aluminum Pipe
  • Schedule 80 anodized 6063 aluminum Pipe
  • Schedule 40 aluminum 6063 Pipe
  • Schedule 80 aluminum 6063 Pipe
  • 6063 Aluminum Pipe for Refrigeration
  • 6063 Aluminum Pipe For Compressed Air
  • 6063 Aluminum Marine Grade Pipes
  • 6063 Aluminum Pipe 20 MM OD
  • 6063 Aluminized Steel Pipe
  • Compressor 6063 Aluminum Pipe
  • S Bend 6063 Aluminum Pipe



Standard Dimensions of 6063 Aluminium Pipe

Standard dimensions

  • 6 mm 6063 Aluminum Pipe
  • 8 mm 6063 Aluminum Pipe
  • 9 mm 6063 Aluminum Pipe
  • 10 mm 6063 Aluminum Pipe
  • 12 mm 6063 Aluminum Pipe
  • 12.7 mm 6063 Aluminum Pipe
  • 14 mm 6063 Aluminum Pipe
  • 16 mm 6063 Aluminum Pipe
  • 18 mm 6063 Aluminum Pipe
  • 19.05 mm 6063 Aluminum Pipe
  • 20 mm 6063 Aluminum Pipe
  • 22 mm 6063 Aluminum Pipe
  • 24 mm 6063 Aluminum Pipe
  • 25.4 mm 6063 Aluminum Pipe
  • 27 mm 6063 Aluminum Pipe
  • 30 mm 6063 Aluminum Pipe
  • 31.75 mm 6063 Aluminum Pipe
  • 33 mm 6063 Aluminum Pipe
  • 36 mm 6063 Aluminum Pipe
  • 38.1 mm 6063 Aluminum Pipe
  • 39 mm 6063 Aluminum Pipe
  • 42 mm 6063 Aluminum Pipe
  • 45 mm 6063 Aluminum Pipe
  • 50 mm 6063 Aluminum Pipe
  • 55 mm 6063 Aluminum Pipe
  • 60 mm 6063 Aluminum Pipe
  • 65 mm 6063 Aluminum Pipe
  • 70 mm 6063 Aluminum Pipe
  • 75 mm 6063 Aluminum Pipe
  • 80 mm 6063 Aluminum Pipe
  • 90 mm 6063 Aluminum Pipe
  • 100 mm 6063 Aluminum Pipe
  • 110 mm 6063 Aluminum Pipe
  • 120 mm 6063 Aluminum Pipe
  • 130 mm 6063 Aluminum Pipe
  • 140 mm 6063 Aluminum Pipe
  • 150 mm 6063 Aluminum Pipe
  • 160 mm 6063 Aluminum Pipe
  • 165 mm 6063 Aluminum Pipe
  • 180 mm 6063 Aluminum Pipe
  • 190.5 mm 6063 Aluminum Pipe
  • 210 mm 6063 Aluminum Pipe
  • 228 mm 6063 Aluminum Pipe
  • 250 mm 6063 Aluminum Pipe
  • 305 mm 6063 Aluminum Pipe

Aluminium 6063 Pipe Manufacturers, SCH40 6063 Aluminium Pipe, SCH80 6063 Aluminium Pipe, Cold Rolled 6063 Aluminium Square Pipe, 6063 Aluminum Alloy Hollow Pipe, UNS A96082 Pipe Manufacturer in China, EN 485-2 6063 Aluminium Pipe stockist, 6063 Aluminium Pipe Price in China

ASTM B210 6063 Aluminum Seamless Pipe

ASTM B210 / ASME SB210 Standard Specification for Aluminum and Aluminum-Alloy Drawn Seamless Pipe

This specification covers aluminum and aluminum-alloy drawn seamless Pipe in straight lengths and coils for general purpose.

1.1 This specification covers aluminum and aluminum-alloy drawn seamless Pipe in straight lengths and coils for general purpose and pressure applications in alloys (Note 2), tempers, and thicknesses shown in Table 2. Coiled Pipe are generally available only as round Pipe with a wall thickness not exceeding 0.083 in. and only in nonheat-treatable alloys.

1.2 Alloy and temper designations are in accordance with ANSI H35.1/H35.1(M). The equivalent Unified Numbering System alloy designations are those of Table 1 preceded by A9, for example, A91100 for aluminum designation 1100 in accordance with Practice E527.

Note 1-See Specification B483/B483M for aluminum-alloy drawn Pipe for general purpose applications; Specification B234 for aluminum-alloy drawn seamless Pipe for condensers and heat exchangers; and Specification B241/B241M for aluminum-alloy seamless pipe and seamless extruded Pipe.

Note 2-Throughout this specification, use of the term alloy in the general sense includes aluminum as well as aluminum alloy.

1.3 A complete metric companion to Specification B210 has been developed Specification B210M; therefore, no metric equivalents are presented in this specification.

ASTM B234 Seamless Pipe for condensers and heat exchangers

Standard Specification for Aluminum and Aluminum-Alloy Drawn Seamless Pipe for Condensers and Heat Exchangers. This specification covers aluminum-alloy (Note 1) drawn seamless round Pipe in straight lengths.

ASTM B483 Aluminum-Alloy Drawn Pipe

Standard Specification for Aluminum and Aluminum-Alloy Drawn Pipe for General Purpose Applications

ASTM B241 Seamless Extruded Pipe

Standard Specification for Aluminum and Aluminum-Alloy Seamless Pipe and Seamless Extruded Pipe. Nonstandard alloys, tempers, and sizes of Pipe are produced as seamless extruded Pipe. Also included in this standard are seamless extruded Pipe for Oil & Gas Transmission previously covered under Specification B345/B345M.



Relevant Grades of 6063 Aluminium Pipe

Common Aluminium 6063 Pipe Grades

  • Aluminum Pipe
  • Aluminium Square Pipe
  • SCH 40 Aluminum Pipe
  • 5086 Aluminum Pipe
  • ASTM B241 6061 T6 Aluminum Pipe
  • 6061 Aluminium Pipe
  • 6063 Aluminium Pipe
  • 6351 Aluminium Pipe
  • 7039 Aluminium Pipe

Aluminum Pipe Standards:

  • ASTM B210 Drawn Seamless Aluminum Alloy Pipe for General Purpose & Pressure Applications.
  • ASTM B221 Extruded Aluminum Alloy Pipe for General Purpose Applications. ASTM B234 Drawn Seamless Aluminum Alloy Pipe for Condensers & Heat Exchangers.
  • ASTM B235 Aluminum Alloy Extruded Pipe. Superseded by ASTM B221, ASTM B241 and ASTM B429.
  • ASTM B241 Seamless Extruded Aluminum Alloy Pipe for General Purpose & Pressure Applications.
  • ASTM B313 Aluminum Alloy Round Welded Pipe, Manufactured from formed sheet and seam welded by continuous methods. .
  • ASTM B317 Extruded Aluminum Alloy Pipe for Electrical Bus Conductors.
  • ASTM B345 Seamless Extruded Aluminum Alloy Pipe for Gas & Oil Transmission and Distribution Piping Systems.
  • ASTM B404 Seamless Aluminum Alloy Condenser & Heat Exchanger Pipe with Integral Fins.
  • ASTM B429 Extruded Aluminum Alloy Structural Pipe.
  • ASTM B483 Drawn Aluminum Alloy Pipe for General Purpose Applications.
  • ASTM B491 Extruded Round Coiled Aluminum Alloy Pipe for General Purpose Applications.
  • ASTM B547 Aluminum Alloy Formed and Arc Welded Round Pipe.
  • EN 485-1 Technical conditions for inspection and delivery
  • EN 485-2 Mechanical Properties
  • EN 485-3 Tolerances for HOT Rolled Material
  • EN 485-4 Tolerances for COLD Rolled material
  • EN 515 Temper Designations
  • EN 573-1 Numerical alloy designation system
  • EN 573-2 Chemical symbol designation system
  • EN 573-3 Chemical Compositions
  • EN 573-4 Product forms in different alloys



6063 Aluminium Round Pipe Weight Chart

dsadasdas

Product Diameter   Thickness Weight
6063 Aluminium Round Pipe   10 mm x 0,7 mm 0,055 Kg/m
6063 Aluminium Round Pipe   6 mm x 0,8 mm 0,035 Kg/m
6063 Aluminium Round Pipe   8 mm x 0,8 mm 0,049 Kg/m
6063 Aluminium Round Pipe   10 mm x 0,8 mm 0,062 Kg/m
6063 Aluminium Round Pipe  1/2″ 12,7 mm x 0,8 mm 0,081 Kg/m
6063 Aluminium Round Pipe   19 mm x 0,9 mm 0,138 Kg/m
6063 Aluminium Round Pipe   6 mm x 1 mm 0,042 Kg/m
6063 Aluminium Round Pipe   8 mm x 1 mm 0,059 Kg/m
6063 Aluminium Round Pipe 3/8″ 9,5 mm x 1 mm 0,072 Kg/m
6063 Aluminium Round Pipe   11 mm x 1 mm 0,085 Kg/m
6063 Aluminium Round Pipe   12 mm x 1 mm 0,093 Kg/m
6063 Aluminium Round Pipe  1/2″ 12,7 mm x 1 mm 0,099 Kg/m
6063 Aluminium Round Pipe   14 mm x 1 mm 0,110 Kg/m
6063 Aluminium Round Pipe   16 mm x 1 mm 0,127 Kg/m
6063 Aluminium Round Pipe   19 mm x 1 mm 0,153 Kg/m
6063 Aluminium Round Pipe   22 mm x 1 mm 0,178 Kg/m
6063 Aluminium Round Pipe   25 mm x 1 mm 0,204 Kg/m
6063 Aluminium Round Pipe   28 mm x 1 mm 0,229 Kg/m
6063 Aluminium Round Pipe   32 mm x 1 mm 0,263 Kg/m
6063 Aluminium Round Pipe   10 mm x 1,1 mm 0,083 Kg/m
6063 Aluminium Round Pipe   19 mm x 1,1 mm 0,167 Kg/m
6063 Aluminium Round Pipe   17 mm x 1,2 mm 0,161 Kg/m
6063 Aluminium Round Pipe   19 mm x 1,2 mm 0,181 Kg/m
6063 Aluminium Round Pipe   22 mm x 1,2 mm 0,212 Kg/m
6063 Aluminium Round Pipe 3/8″ 9,5 mm x 1,3 mm 0,090 Kg/m
6063 Aluminium Round Pipe   11 mm x 1,3 mm 0,107 Kg/m
6063 Aluminium Round Pipe   16 mm x 1,5 mm 0,184 Kg/m
6063 Aluminium Round Pipe   19 mm x 1,5 mm 0,223 Kg/m
6063 Aluminium Round Pipe   25 mm x 1,5 mm 0,299 Kg/m
6063 Aluminium Round Pipe   28 mm x 1,5 mm 0,337 Kg/m
6063 Aluminium Round Pipe   32 mm x 1,5 mm 0,388 Kg/m
6063 Aluminium Round Pipe   35 mm x 1,5 mm 0,426 Kg/m
6063 Aluminium Round Pipe   38 mm x 1,5 mm 0,464 Kg/m
6063 Aluminium Round Pipe   45 mm x 1,5 mm 0,553 Kg/m
6063 Aluminium Round Pipe   50 mm x 1,5 mm 0,617 Kg/m
6063 Aluminium Round Pipe   60 mm x 1,5 mm 0,744 Kg/m
6063 Aluminium Round Pipe   40 mm x 1,7 mm 0,552 Kg/m
6063 Aluminium Round Pipe   20 mm x 2 mm 0,305 Kg/m
6063 Aluminium Round Pipe   25 mm x 2 mm 0,390 Kg/m
6063 Aluminium Round Pipe   30 mm x 2 mm 0,475 Kg/m
6063 Aluminium Round Pipe   40 mm x 2 mm 0,645 Kg/m
6063 Aluminium Round Pipe   50 mm x 2 mm 0,814 Kg/m
6063 Aluminium Round Pipe   50 mm x 2 mm 0,814 Kg/m
6063 Aluminium Round Pipe   70 mm x 2 mm 1,154 Kg/m
6063 Aluminium Round Pipe   90 mm x 2 mm 1,493 Kg/m
6063 Aluminium Round Pipe   114 mm x 2 mm 1,900 Kg/m
6063 Aluminium Round Pipe 4″1⁄2 114,3 mm x 2 mm 1,905 Kg/m
6063 Aluminium Round Pipe   30 mm x 2,5 mm 0,583 Kg/m
6063 Aluminium Round Pipe   60 mm x 2,5 mm 1,219 Kg/m
6063 Aluminium Round Pipe   45 mm x 3 mm 1,069 Kg/m
6063 Aluminium Round Pipe   60 mm x 3 mm 1,450 Kg/m
6063 Aluminium Round Pipe   70 mm x 3 mm 1,705 Kg/m
6063 Aluminium Round Pipe   35 mm x 4 mm 1,052 Kg/m
6063 Aluminium Round Pipe   90 mm x 5 mm 3,605 Kg/m

6063 Aluminium Square Pipe Weight Chart

dsadasdas

Product Side   Thickness Weight
6063 Aluminium Square Pipe 16 mm x 0,7 mm 0,116 Kg/m
6063 Aluminium Square Pipe 16 mm x 0,9 mm 0,147 Kg/m
6063 Aluminium Square Pipe 19 mm x 0,9 mm 0,176 Kg/m
6063 Aluminium Square Pipe 12,5 mm x 1 mm 0,124 Kg/m
6063 Aluminium Square Pipe 16 mm x 1 mm 0,162 Kg/m
6063 Aluminium Square Pipe 19 mm x 1 mm 0,194 Kg/m
6063 Aluminium Square Pipe 20 mm x 1 mm 0,205 Kg/m
6063 Aluminium Square Pipe 25 mm x 1 mm 0,259 Kg/m
6063 Aluminium Square Pipe 12 mm x 1,5 mm 0,170 Kg/m
6063 Aluminium Square Pipe 20 mm x 1,5 mm 0,300 Kg/m
6063 Aluminium Square Pipe 30 mm x 1,5 mm 0,462 Kg/m
6063 Aluminium Square Pipe 40 mm x 1,5 mm 0,624 Kg/m
6063 Aluminium Square Pipe 50 mm x 1,5 mm 0,786 Kg/m
6063 Aluminium Square Pipe 20 mm x 2 mm 0,389 Kg/m
6063 Aluminium Square Pipe 40 mm x 2 mm 0,821 Kg/m
6063 Aluminium Square Pipe 60 mm x 2 mm 1,253 Kg/m
6063 Aluminium Square Pipe 65 mm x 2 mm 1,361 Kg/m
6063 Aluminium Square Pipe 100 mm x 2 mm 2,117 Kg/m

Theorical Weights Table
The values presented on this table are theorical and they should be confirmed if you make an order.
We, may alter this table without notice.
All orders based on this table will be pending until confirmation by our commercial services.

6063 Aluminium Rectangular Pipe Weight Chart

dsadasdas

Product A   B   Thickness Weight
6063 Aluminium Rectangular Pipe 30 mm x 15 mm x 1,5 mm 0,340 Kg/m
6063 Aluminium Rectangular Pipe 40 mm x 20 mm x 1,5 mm 0,462 Kg/m
6063 Aluminium Rectangular Pipe 50 mm x 25 mm x 1,5 mm 0,583 Kg/m
6063 Aluminium Rectangular Pipe 60 mm x 40 mm x 2 mm 1,037 Kg/m
6063 Aluminium Rectangular Pipe 65 mm x 30 mm x 1,5 mm 0,745 Kg/m
6063 Aluminium Rectangular Pipe 80 mm x 30 mm x 1,5 mm 0,867 Kg/m
6063 Aluminium Rectangular Pipe 80 mm x 20 mm x 2 mm 1,037 Kg/m
6063 Aluminium Rectangular Pipe 85 mm x 30 mm x 1,8 mm 1,083 Kg/m
6063 Aluminium Rectangular Pipe 100 mm x 50 mm x 4 mm 3,067 Kg/m

Theorical Weights Table
The values presented on this table are theorical and they should be confirmed if you make an order.
We, may alter this table without notice.
All orders based on this table will be pending until confirmation by our commercial services.



Standard Specification of 6063 Aluminium Pipe

Standards and specifications by country

European Standard BS (OLD) USA (AA) GERMANY (DIN) ISO IS Canadian
EN AW-6063 HE9 6063 AlMgSi0.5 AlMg0.7Si 63400 50S



6063 Aluminium Pipe Equivalent Grades

China
U.S.A.
BRITAIN
CANADA GERMANY
RUSSIA
I.S.O.
FRENCH
New IS Old IS (A.A.)
(B.S.)
  (DIN)
IS 63400 H9 6063 H9 50S Al-Mg-Si 0.5 Al-Si-1 Mg 6081



6063 Aluminium Pipe Chemical Composition

Alloy (ISS) Equivalent alloy (A.A) Copper Magnesium Silicon Iron Managanese Others* (Total) Remarks
Old New U.S.A Min. Max. Min. Max. Min. Max. Min. Max. Max Max. Aluminum 99.0% Min.
H 9 63400 6063 0.1 0.4 0.9 0.3 0.7 0.6 0.3 0.4

Aluminium 6063 Pipe Mechanical Properties

Mechanical Properties
Hardness, Brinell 73 73  AA; Typical; 500 g load; 10 mm ball
Hardness, Knoop 96 96  Converted from Brinell Hardness Value
Hardness, Vickers 83 83  Converted from Brinell Hardness Value
Ultimate Tensile Strength 241 MPa 35000 psi  AA; Typical
Tensile Yield Strength 214 MPa 31000 psi  AA; Typical
Elongation at Break 12 % 12 %  AA; Typical; 1/16 in. (1.6 mm) Thickness
Modulus of Elasticity 68.9 GPa 10000 ksi  AA; Typical; Average of tension and compression. Compression modulus is about 2% greater than tensile modulus.
Ultimate Bearing Strength 434 MPa 62900 psi  Edge distance/pin diameter = 2.0
Bearing Yield Strength 276 MPa 40000 psi  Edge distance/pin diameter = 2.0
Poisson’s Ratio 0.33 0.33
Fatigue Strength 68.9 MPa 10000 psi  AA; 500,000,000 cycles completely reversed stress; RR Moore machine/specimen
Machinability 50 % 50 %  0-100 Scale of Aluminum Alloys
Shear Modulus 25.8 GPa 3740 ksi
Shear Strength 152 MPa 22000 psi  AA; Typical
Alloy Designation UK
Specifications
US
Specifications
US Federal
Specifications
European
Specifications
Other
6063 BS H9 Alloy 6063
DTD 372B 6063
AMS 4156 6063-T6 Extrusions QQ-A-200/9 6063
MIL-P-25995
ASTM B210
ASTM B221
ASTM B241
ASTM B345
ASTM B429
ASTM B483
ASTM B491


Aluminum Alloy Heat Treatment Temper Designations for Pipes

Basic Aluminum Heat Treatment Designations

  • F As Fabricated
  • O Annealed
  • H Strain Hardened
  • W Solution Heat Treated
  • T Solution Heat Treated

Heat Treating T Temper Codes for Aluminium 6063 Pipe

  • T1 – Cooled from an elevated temperature shaping process and naturally aged to a substantially stable condition.
  • T2 – Cooled from an elevated temperature shaping process, cold worked, and naturally aged to a substantially stable condition.
  • T3 – Solution heat treated, cold worked, and naturally aged to a substantially stable condition.
  • T4 – Solution heat treated, and naturally aged to a substantially stable condition.
  • T5 – Cooled from an elevated temperature shaping process then artificially aged.
  • T6 – Solution heat treated then artificially aged.
  • T7 – Solution heat treated then overaged/stabilized.
  • T8 – Solution heat treated, cold worked, then artificially aged.
  • T9 – Solution heat treated, artificially aged, then cold worked.
  • T10 – Cooled from an elevated temperature shaping process, cold worked, then artificially aged.

Additional digits may be used after the first T temper digit to indicate subsequent stress relieving by processes such as stretching, compressing, or a combination.

H Temper Strain Hardening Codes for Aluminium 6063 Pipe

  • H1 – Strain hardened only
  • H2 – Strain hardened and partially annealed
  • H3 – Strain hardened and stabilized
  • H4 – Strain hardened and lacquered or painted. This assumes that thermal affects from the coating process affect the strain hardening; seldom encountered.

Application of 6063 Aluminium Pipe

6063 Aluminium Pipe is the most widely used form of Industrial Aluminium. Aluminium 6063 Pipe find applications in various industries such as manufacturing cans and packages, transportation, home appliances, building and construction.

dsadasdas

6063 Aluminium Pipe Marking & Packaging

Packing Details: Standard export seaworthy package.
Delivery Details: About 7~10 days after receive the advance payment.


  • Previous:
  • Next:

  • Related Products
