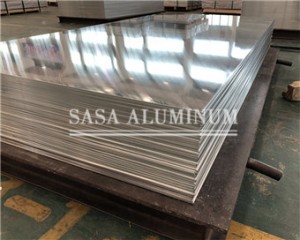

63400 Aluminium Sheet
Aluminium alloy 63400 Sheet is a medium strength alloy commonly referred to as an architectural alloy. Aluminium 63400 Sheet is normally used in intricate extrusions. 63400 Aluminium Sheet has a good surface finish, high corrosion resistance, is readily suited to welding and can be easily anodised. Most commonly available as T6 temper, in the T4 condition it has good formability.
63400 Aluminium Sheet Temper 0, H32, H34, H38 as per ASTM B209, ASTM-B-209, EN573, and EN485 international standards. UNS Number – UNS A96063 Specification – AMS-QQ-A-200/9 Aluminum Alloy 63400 Sheet O, T1, T4, T5, T6, T52
Sasa Aluminium is the leading manufacturer and exporter of 63400 Aluminium Sheet. Supplier of ASTM B209 63400 Aluminium Sheet from 0.5mm to 5mm Thick 1000mm x 1000mm to 2500mm x 1250mm Tempers manufactured in accordance with international standards ASTM B209, ASTM-B-209, EN573, and EN485, check 63400 Aluminium Sheet price. The general widths of 63400 H16 Aluminum sheets are 1000mm, 1250mm and 1500mm, while common lengths are 2000mm, 2500 mm and 3000mm respectively. Wholesale Trader of 63400 H14 Aluminium Sheet offered by Sasa Aluminium , China. Stockist of 63400 Aluminium Sheet, H32 63400 Aluminium Stucco Sheet, H38 Commercial 63400 Aluminium Sheet, ASME SB209 63400 Aluminium Patterned Sheet, 63400 Aluminium Embossed Sheet, 63400 Aluminium Extruded Sheet, 63400 Aluminium Sheet and 63400 Aluminium Sheet in China.
Standard Dimensions of 63400 Aluminium Sheet
Standard dimensions (a x b) of Aluminium 63400 Sheet
Aluminium 63400 Sheet up to 9.9 mm
2.000 x 1.000 mm
2.500 x 1.250 mm
3.000 x 1.500 mm
Oversize Aluminium 63400 Sheet
4.000 x 2.000 mm
6.000 x 2.500 mm
8.000 x 2.500 mm
Other dimensions on request
| Alloy | ASTM B209 1050, 1060, 1100, 1235, 3003, 3004, 3105, 5052, 5754, 6061, 8011 |
| Aluminium 63400 Sheet Temper | O, H12, H14, H16, H18, H22, H24, H26, H32, H112 |
| Aluminium 63400 Sheet Thickness | 0.5mm-150mm |
| Aluminium 63400 Sheet Width | 500-2000mm |
| Aluminium 63400 Sheet Length | to clients’ requirement |
| Aluminium 63400 Sheet Coating | Polyester, Fluorocarbon, polyurethane and epoxy coating |
| 63400 Aluminium Sheet Coating finish | PVDF, POLYESTER(PE) |
| Surface | Bright, polished, hair line, brush, sand blast, checkered, embossed, etching, etc. |
| Gloss | Meet the customer requirement |
| Total coating thickness | PVDF coating: More than 25 micron; Polyester coating: More than 18 micron |
| Coating hardness | (pencil hardness) more than 2H |
| Coating adhesive | No lower than1st grade |
| Impact resistance | No cracking or peeling (50kg/cm, ASTMD-2794: 1993) |
| Flexibility (T-bend) | 2T |
| MEK resistance | More than 10 |
| Available Aluminium 63400 Sheet Stock Sizes | 1ft x 1ft, 1ft x 2ft, 1ft x 4ft, 2ft x 2ft, 2ft x 4ft, 4ft x 4ft, 4ft x 8ft, 4ft x 10ft or Cut to Size or Custom Shape. |
| Aluminium 63400 Sheet Delivery Time | 30-60 days after receiving the prepayment |
| Aluminium 63400 Sheet Packaging Details | Standard export package. One pallet is about 2-3 ton.Two steel belts in width and three in width. One 20GP container can load about 18-20 tons Aluminium 63400 Sheet. One 40GP container can load about 24 tons Aluminium 63400 Sheet |
| ASTM B209 Alloy 63400 Outer packing | Export standard, wooden pallet |
| Bottom side Aluminium 63400 Sheet is coated with protective polyester material, thickness more than 6 micron | |
| Export to | Singapore, Indonesia, Ukraine, Korea, Thailand, Vietnam, Saudi Arabia, Brazil, Spain, Canada, USA, Egypt, Iran, China, Kuwait, Dubai, Oman, Kuwait, Peru, Mexico, Iraq, Russia, Malaysia, etc. |
| AUTHORIZED DISTRIBUTORS OF , NALCO, , THYSSENKRUPP, VIRGO, MANKASIA AND METENERE | |
Types of 63400 Aluminium Sheet
| 63400 Aluminium Sheets Product Range | ||||
|---|---|---|---|---|
| Alloy No. | Thickness (mm) |
Width (mm) |
Length (mm) |
Temper |
| A1050, A1060, A1070, A1100 | 0.2-5.0 | 20-2200 | 20-8000 | O, H12, H22, H14, H16, H18, H24, H26 |
| A3003, A3105, A3004 | 0.2-5.0 | 20-2200 | 20-8000 | O, H14, H18, H24 |
| A5052, A5005, A5083, A5086, A5754 | 0.2-5.0 | 20-2200 | 20-8000 | O, H18, H24, H32, H34, H111, H112 |
| A6061, A6082, A6063 | 0.2-5.0 | 20-2200 | 20-8000 | T4, T6, T651 |
| A8011 | 0.2-5.0 | 20-2200 | 20-8000 | O, H12, H22, H14, H16, H18, H24, H26 |
Aluminium 63400 Sheets:
1100-H14 Aluminum Sheet: ASTM-B-209
2024-T3 ALCLAD Aluminum Sheet: AMS-QQ-A-205/5, ASTM-B-209, AMS-4041
2024-T3 BARE Aluminum Sheet: AMS-QQ-A-205/5, ASTM-B-209, AMS-4037
2219-T6 Aluminum Sheet:
2219-O Aluminum Sheet: AMS-QQ-A-250/30
3003-H14 Aluminum Sheet: ASTM-B-209
3003-O Aluminum Sheet: ASTM-B-209
4047-F Aluminum Sheet: AMS-4185, BAlSi-4
5052-H32 Aluminum Sheet: ASTM-B-209, AMS-4016
5052-H38 Aluminum Sheet: ASTM-B-209
5052-O Aluminum Sheet: ASTM-B-209, AMS-4015
6061-O Aluminum Sheet: ASTM-B-209, AMS-4025
6061-T4 Aluminum Sheet: ASTM-B-209, AMS-4026
6061-T6 Aluminum Sheet: ASTM-B-209, AMS 4027
7075-T6 Aluminum Sheet: AMS-QQ-A-250/12, AMS-4045
7075-O ALCLAD Aluminum Sheet: ASTM-B-209
7075-O BARE Aluminum Sheet: AMS-QQ-A-250/12, AMS-4045
Aluminum Specular Lighting Sheet
Standard Specification of 63400 Aluminium Sheet
Standards and specifications by country
| Specification | Alloy | Temper | Company |
|---|---|---|---|
| Europe | |||
| EN 2089/2395 | 2014A | T6(T62)/T4(T42) | |
| EN 2087/2088 | 2014A clad | T6(T62)/T4(T42) | |
| EN 4101 | 2024 | T4 | |
| EN 2090/2091/2703/4001 | 2024 clad cmq | T3/T4/T4(T42)/T351 | |
| EN 3474/3997/3998/3999 | 2024 cmq | T81/T3/T4(T42)/T351 | |
| EN 2694/EN 3341 | 6061 | T6(T62)/T4(T42) | |
| EN 4449/4450 | 7050 | T76/F(T762) | |
| EN 2696 | 7075 | T6(T62) | |
| EN 2092 | 7075 clad | T6(T62) | |
| EN 2802/3333 | 7475 | T761/F(T762) | |
| EN 2803/3332 | 7475 clad | T761/F(T762) | |
| France | |||
| AIR 9048.010/.030/ | 2014 | F(T42)/F(T62)/T4/ | |
| .020/.040/.050 | 2014 | T6/T451 | |
| AIR 9048.060/.080/.070/.090 | 2014 clad | F(T42)/F(T62)/T4/T6 | |
| AIR 9048.100/.110/.120 | 2024 | ||
| AIR 9048.130/.140 | 2024 clad | F(T42)/T3 | |
| AIR 9048.150 | 2618A | H28(T62) | |
| AIR 9048.170 | 2618A clad | H28(T62) | |
| AIR 9048.190/.200 | 5086 | O, H111/H22, H32 | |
| AIR 9048.210/.220/.230/.240 | 6061 | O, H111(T42)/T4/ O, H111(T62)/T6 | |
| AIR 9048.260/.270 | 7075 | T6/T76 | |
| AIR 9048.280 | 7075 clad | T6 | |
| AIR 9048.290 | 7475 | T76 | Boeing |
| Germany | |||
| W.-Nr. 3.1254 | 2014A | T4, T6 | |
| W.-Nr. 3.1354 | 2024 | O(T42), T3 | |
| W.-Nr. 3.1364 | 2024 clad | O(T42), T3 | |
| W.-Nr. 3.3214 | 6061 | O(T62), T6 | |
| W.-Nr. 3.4364 | 7075 | T6 | |
| W.-Nr. 3.4374 | 7075 clad | O(T62), T6 | |
| W.-Nr. 3.4377 | 7475 clad | T76 | |
| UK | |||
| BS L16/17 | 1200 | H4/O | |
| BS L156/157/158*/159* | 2014A | ||
| 158*/159* | 2014A clad | (T42)(T62) | BAE Systems |
| BS L163/164/165 | 2014A clad | T3/F(T42), T4/T6 | |
| BS L166*/167* | 2014A clad | F(T42), T4/T6 | |
| BS L109/110 | 2024 clad | T3/F(T42) | |
| DTD5070 | 2618A clad | T6 | |
| BS L59/60/61 | 3103 | H6/H2/O | |
| BS L80/81 | 5251 | O/H6 | |
| BS L113 | 6082 | T4, T6 | |
| BS L88 | 7075 clad | T6 | |
| USA | |||
| AMS QQ-A-250/3 | 2014 clad | O, T4, T6 | |
| AMS QQ-A-250/4 | 2024 | O, T3 | |
| AMS 4037 | 2024 | T3 | |
| AMS QQ-A-250/5 | 2024 clad | O, T3 | |
| AMS 4041 | 2024 clad | T3 | |
| AMS QQ-A-250/30 | 2219 | O(T62), T31(T81), T37(T87) | |
| AMS QQ-A-250/2 | 3003 | O, H14 | |
| AMS 4347 | 6013 | T4 | |
| AMS 4216 | 6013 | T6 | |
| AMS 4025/4026/4027 | 6061 | O, F, T4, T42, T45, T6, T62, T651 | |
| AMS QQ-A-250/12 | 7075 | O, T6, T73 | |
| AMS QQ-A-250/24 | 7075 | T76 | |
| AMS QQ-A-250/13 | 7075 clad | O, T6, T73 | |
| AMS QQ-A-250/26 | 7075 clad with 7011 | T76 | |
| AMS QQ-A-250/25 | 7075 clad with 7072 | T76 | |
| European Standard | BS (OLD) | USA (AA) | GERMANY (DIN) | ISO | IS | Canadian |
|---|---|---|---|---|---|---|
| EN AW-1050 A | 1E | 1050 | Al99.5 | Al99.5 | 19500, 19501 | 1 S |
| EN AW-1070 A | – | 1070 | Al-99.7 | Al-99.7 | 19700 | – |
| EN AW-1100 | IC | 1100 | Al-99.0 | Al-99.0 | 19000 | 2 S |
| EN AW-2011 | FC1 | 2011 | AlCuBiPb | AlCu6BiPb | – | 28S |
| EN AW-2014 | HE15 | 2014 | AlCuSiMn | AlCu4SiMg | 24345 | B26S |
| EN AW-2024 | – | 2024 | AlCuMg2 | AlCu4Mg1 | – | 24 S |
| EN AW-3003 | N3 | 3003 | AlMnCu | AlMn1Cu | 31000 | 3 S |
| EN AW-3103 | – | 3103 | – | AlMn1 | – | – |
| EN AW-6101A | E91E | 6101 | E AlMgSi 0.5 | E AlMgSi(A) | 63401 | D50S |
| EN AW-6005 | – | 6005 | AlMgSi0.7 | AlSiMg | 62400 | C51S |
| EN AW-6351 | HE30 | 6351 | AlMgSi1 | AlSiMg0.5Mn | 64430 | B51S |
| EN AW-6060 | – | 6060 | AlMgSi 0.5 | AlMgSi | – | – |
| EN AW-6061 | HE20 | 6061 | AlMgSiCu | AlMg1SiCu | 65032 | 65S |
| EN AW-6063 | HE9 | 6063 | AlMgSi0.5 | AlMg0.7Si | 63400 | 50S |
| EN AW-6082 | HE30 | 6351 | AlMgSi1 | AlSi1MgMn | 64430 | B51S |
Common Aluminium 63400 Sheet Grades
- 63400 Aluminium Sheet Grade 19000
- 63400 Aluminium Sheet Grade 19500
- 63400 Aluminium Sheet Grade 24345
- 63400 Aluminium Sheet Grade 24534
- 63400 Aluminium Sheet Grade 31000
- 63400 Aluminium Sheet Grade 52000
- 63400 Aluminium Sheet Grade 53000
- 63400 Aluminium Sheet Grade 54300
- 63400 Aluminium Sheet Grade 65032
- 63400 Aluminium Sheet Grade 63400
- 63400 Aluminium Sheet Grade 64430
- 63400 Aluminium Sheet Grade 74530
- 1100 Aluminum Sheet
- 1050 Aluminum Sheet
- Aluminium 2014 T6 Sheet
- Aluminum 2024-t351 Sheet
- 3003 Aluminum Sheet
- 5052 Aluminum Sheet
- 5086 Aluminum Sheet
- 5083 Aluminum Sheet
- 5754 Aluminum Sheet
- 6061 Aluminum Sheet
- 6082 T6 Aluminum Sheet
- Aluminum Alloy 6351 T6 Sheet
- 6063 63400 Aluminium Sheet
- 6066-T6 Aircraft Aluminum Alloy Sheet
- 6005 Aluminum Sheet
- 7075 Aluminum Sheet
- 7050 Aluminum Sheet
- LM-2 Aluminum Sheet
- LM6 Aluminum Sheet
63400 Aluminium Sheet Sizes
| Sizes (mm) | Theoretical Mass KG/sheet |
|---|---|
| 2000 X 1000 X 0.5 | 2500 X 1250 X 0.5 |
| 2000 X 1000 X 0.7 | 2500 X 1250 X 0.7 |
| 2000 X 1000 X 0.9 | 2500 X 1250 X 0.9 |
| 2000 X 1000 X 1.2 | 2500 X 1250 X 1.2 |
| 3000 X 1500 X 1.2 | 2000 X 1000 X 1.6 |
| 2500 X 1250 X 1.6 | 3000 X 1500 X 1.6 |
| 2000 X 1000 X 2.0 | 2500 X 1250 X 2.0 |
| 3000 X 1500 X 2.0 | 2500 X 1250 X 2.5 |
| 2.79 | 4.36 |
| 3.91 | 6.10 |
| 5.02 | 7.85 |
| 6.74 | 10.46 |
| 15.01 | 8.93 |
| 13.95 | 20.09 |
| 11.16 | 17.44 |
| 25.11 | 21.80 |
63400 Aluminium Sheet Weight Chart
Width: 1.000 mm | Length: 2.000 mm
| Product | Thickness | Weight |
|---|---|---|
| 63400 Aluminium Sheet | 0,30 mm | 0,810 Kg/m2 |
| 63400 Aluminium Sheet | 0,40 mm | 1,080 Kg/m2 |
| 63400 Aluminium Sheet | 0,50 mm | 1,350 Kg/m2 |
| 63400 Aluminium Sheet | 0,60 mm | 1,620 Kg/m2 |
| 63400 Aluminium Sheet | 0,70 mm | 1,890 Kg/m2 |
| 63400 Aluminium Sheet | 0,80 mm | 2,160 Kg/m2 |
| 63400 Aluminium Sheet | 0,90 mm | 2,430 Kg/m2 |
| 63400 Aluminium Sheet | 1,00 mm | 2,700 Kg/m2 |
| 63400 Aluminium Sheet | 1,20 mm | 3,240 Kg/m2 |
| 63400 Aluminium Sheet | 1,40 mm | 3,780 Kg/m2 |
| 63400 Aluminium Sheet | 1,50 mm | 4,050 Kg/m2 |
| 63400 Aluminium Sheet | 1,60 mm | 4,320 Kg/m2 |
| 63400 Aluminium Sheet | 1,80 mm | 4,860 Kg/m2 |
| 63400 Aluminium Sheet | 2,00 mm | 5,400 Kg/m2 |
| 63400 Aluminium Sheet | 2,20 mm | 5,940 Kg/m2 |
| 63400 Aluminium Sheet | 2,50 mm | 6,750 Kg/m2 |
| 63400 Aluminium Sheet | 3,00 mm | 8,100 Kg/m2 |
| 63400 Aluminium Sheet | 4,00 mm | 10,800 Kg/m2 |
| 63400 Aluminium Sheet | 5,00 mm | 13,500 Kg/m2 |
| 63400 Aluminium Sheet | 6,00 mm | 16,200 Kg/m2 |
| 63400 Aluminium Sheet | 10,00 mm | 27,000 Kg/m2 |
| 63400 Aluminium Sheet | 12,00 mm | 32,400 Kg/m2 |
| 63400 Aluminium Sheet | 15,00 mm | 40,500 Kg/m2 |
| 63400 Aluminium Sheet | 20,00 mm | 54,000 Kg/m2 |
63400 Aluminium Sheet Chemical Composition
| Alloy (ISS) | Equivalent alloy (A.A) | Copper | Magnesium | Silicon | Iron | Managanese Others* (Total) | Remarks | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Old | New | U.S.A | Min. | Max. | Min. | Max. | Min. | Max. | Min. | Max. | Max | Max. | Aluminum 99.0% Min. | ||
| H 9 | 63400 | 6063 | — | 0.1 | 0.4 | 0.9 | 0.3 | 0.7 | 0.6 | — | 0.3 | 0.4 | — | ||
Aluminium 63400 Sheet Mechanical Properties
| Mechanical Properties | |||
| Hardness, Brinell | 73 | 73 | AA; Typical; 500 g load; 10 mm ball |
| Hardness, Knoop | 96 | 96 | Converted from Brinell Hardness Value |
| Hardness, Vickers | 83 | 83 | Converted from Brinell Hardness Value |
| Ultimate Tensile Strength | 241 MPa | 35000 psi | AA; Typical |
| Tensile Yield Strength | 214 MPa | 31000 psi | AA; Typical |
| Elongation at Break | 12 % | 12 % | AA; Typical; 1/16 in. (1.6 mm) Thickness |
| Modulus of Elasticity | 68.9 GPa | 10000 ksi | AA; Typical; Average of tension and compression. Compression modulus is about 2% greater than tensile modulus. |
| Ultimate Bearing Strength | 434 MPa | 62900 psi | Edge distance/pin diameter = 2.0 |
| Bearing Yield Strength | 276 MPa | 40000 psi | Edge distance/pin diameter = 2.0 |
| Poisson’s Ratio | 0.33 | 0.33 | |
| Fatigue Strength | 68.9 MPa | 10000 psi | AA; 500,000,000 cycles completely reversed stress; RR Moore machine/specimen |
| Machinability | 50 % | 50 % | 0-100 Scale of Aluminum Alloys |
| Shear Modulus | 25.8 GPa | 3740 ksi | |
| Shear Strength | 152 MPa | 22000 psi | AA; Typical |
| Alloy Designation | UK Specifications |
US Specifications |
US Federal Specifications |
European Specifications |
Other |
|---|---|---|---|---|---|
| 6063 | BS H9 Alloy 6063 DTD 372B 6063 Bars and Sections |
AMS 4156 6063-T6 Extrusions | QQ-A-200/9 6063 MIL-P-25995 ASTM B210 ASTM B221 ASTM B241 ASTM B345 ASTM B429 ASTM B483 ASTM B491 |
63400 Packing Information of Aluminum sheet :
Application of 63400 Aluminium Sheet
63400 Aluminium Sheet is the most widely used form of Industrial Aluminium. 63400 Aluminium Sheets find applications in various industries such as manufacturing cans and packages, transportation, home appliances, building and construction.
