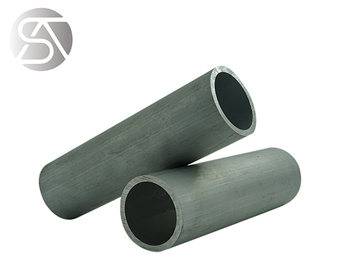

Aluminium Tubing

Short Description:

Specifications: ASTM B210

Temper: O, H12, H14

Size: 1/8″ – 16″ (3mm – 2500mm) OD

Surface: Bright finish, paper interleaved

Send email to us Download as PDF

Product Detail

FAQ

Product Tags

Aluminium Round Tubing is a very versatile product. There is the usual strength/weight ratio strong point common to all our aluminium products along with its inherent resistance to corrosion. As well as the usual engineering applications, other examples of its use are telescope making, garden products, art work and mole-catching. One of our customer in UK makes his mole catching equipment using thin 6mm tube.

Sasa Aluminium Incorporation is the leading manufacturer and exporter of Aluminium Tubing, Oval Aluminium Tubing, and Aluminium Square Extruded Tubing that are utilized in divers industries such as aerospace, medical, electronics, firearms and industrial. Supplier of ASTM B210 Drawn Seamless Aluminum Alloy Tubing in Tempers manufactured in accordance with international standards ASTM B210, ASME SB210, ASTM B221/ B235 /B241 B313 /B317 /B345 B404 /B429 /B483 /B491 /B547, check Aluminium Drawn Seamless Tubing. Wholesale Trader of Extruded Aluminum Tubing offered by Sasa Aluminium , China.

Specifications of Aluminium Tubing:

Aluminium Alloy	ASTM B210, ASTM B234, ASTM B241, ASTM B483; GB/T 6893-2000, GB/T 4437-2000: JIS H4080-2006
Aluminium Tubing American Specifications:	ASTM B210 drawn, ASTM B241 extruded, AMS 4173, AMS 4080, AMS 4082, AMS4083, WW-T-700/6
Aluminium Tubing British Specifications	H20, HE 20
Material	1060, 1200, 1100, 2024, 2124, 3003, 3004, 5050, 5083, 5154, 5454, 5652, 5086, 5056, 5754, 6061, 6062, 6063, 7075, etc.
Aluminium Tubing Standard	ASTM, ASME, AMS, ASTM B210M, GB/T 3191, JIS H4040, ASTM B210, AMS QQ-A-200/9
Aluminium Tubing Temper	O, H12, H14, H16, H18, H22, H24, H26, H32, H112
Aluminium Tubing Form	Aluminium extruded, seamless, drawn and coiled Tubing in Black & Bright Finish
Aluminium Tubing Sizes	1/8″ – 16″ (3mm – 2500mm) OD .020″ – 2″ (.2mm – 150mm) wall (1m-12m) Length
Machinability	Fair
Weldability	Good
Corrosion Resistance	Good
Aluminium Tubing	Bright, Polish & Black
Aluminium Tubing Surface	Anodized, Oxidation, electrophoresis coating, fluorine carbon spraying, powder coating, wood grain transfer printing, mechanical drawing, mechanical polishing, sand blasting, Polished, hair line, brush, Mill finished, Bright finish, paper interleaved
Surface treatment	Nature, Black painting, Transparent oil, rust-proof black oil or hot-dip galvanized
Aluminium Tubing Delivery Time	10-30 days after receiving the prepayment
Aluminium Tubing Packaging Details	Export standard package: bundled wooden box, suit for all kinds of transport or be required.
ASTM B210 Alloy Tubing Outer packing	Export standard, wooden pallet
Here are 6 different types of finishes for extruded aluminum Tubing:	Anodizing Powder Coating Liquid Coatings Chemical Finishes Mechanical Finishes Pretreatment
Applications	Bicycle Parts, aircraft ducting, wheelchair frames, telescopes, machined bushes, air cylinders
We Export Aluminium Tubing to	Singapore, Indonesia, Ukraine, Korea, Thailand, Vietnam, Saudi Arabia, Brazil, Spain, Canada, USA, Egypt, Iran, China, Kuwait, Dubai, Oman, Kuwait, Peru, Mexico, Iraq, Russia, Malaysia, etc.

Aluminum Tubing Features:
1.Materials	7001-T6/T9, 7075-T9 alloy
2.High strengh	660Mpa
3.Light weight	Aluminum alloy is lighter weight
4.Tightness tolerance	a) Inner diameter:±0.02mm b) Outer diameter:±0.02mm
5.Weight	±0.5%
6.Straightened to 0.12mm

Aluminum Alloy Tubing ASTM Specification
ASTM B210 Drawn Seamless Aluminum Alloy Tubing ASTM B221 Extruded Aluminum Alloy Tubing ASTM B234 Drawn Seamless Aluminum Alloy Tubing for Condensers & Heat Exchangers ASTM B234 Heat Exchanger Tubing ASTM B234 Condenser Tubing ASTM B235 Aluminum Alloy Extruded Tubing ASTM B241 Seamless Extruded Aluminum Alloy Tubing ASTM B313 Aluminum Alloy Round Welded Tubing ASTM B317 Extruded Aluminum Alloy Tubing	ASTM B345 Seamless Extruded Aluminum Alloy Tubing ASTM B404 Seamless Aluminum Alloy Condenser & Heat Exchanger Tubing with Integral Fins ASTM B404 Seamless Condenser Tubing ASTM B404 Seamless Heat Exchanger Tubing ASTM B429 Extruded Aluminum Alloy Structural Tubing ASTM B483 Drawn Aluminum Alloy Tubing ASTM B491 Extruded Round Coiled Aluminum Alloy Tubing ASTM B547 Aluminum Alloy Formed and Arc Welded Round Tubing

Aluminum Alloy Tubing ASTM Specification

ASTM B210 Drawn Seamless Aluminum Alloy Tubing
ASTM B221 Extruded Aluminum Alloy Tubing
ASTM B234 Drawn Seamless Aluminum Alloy Tubing for Condensers & Heat Exchangers
ASTM B234 Heat Exchanger Tubing
ASTM B234 Condenser Tubing
ASTM B235 Aluminum Alloy Extruded Tubing
ASTM B241 Seamless Extruded Aluminum Alloy Tubing
ASTM B313 Aluminum Alloy Round Welded Tubing
ASTM B317 Extruded Aluminum Alloy Tubing

ASTM B345 Seamless Extruded Aluminum Alloy Tubing
ASTM B404 Seamless Aluminum Alloy Condenser & Heat Exchanger Tubing with Integral Fins
ASTM B404 Seamless Condenser Tubing
ASTM B404 Seamless Heat Exchanger Tubing
ASTM B429 Extruded Aluminum Alloy Structural Tubing
ASTM B483 Drawn Aluminum Alloy Tubing
ASTM B491 Extruded Round Coiled Aluminum Alloy Tubing
ASTM B547 Aluminum Alloy Formed and Arc Welded Round Tubing

Types of Aluminium Tubing:

Aluminium Thin wall Tubing stockholder in China, Aluminium Thick Wall Tubing wholesaler in China, Large Diameter Aluminium Tubing importers in China, Hot rolled Aluminium Tubing Cut To Size At Best Price

Manufacturer of Cold rolled Aluminium Tubing in China, Cold drawn Aluminium Alloy Tubing Suppliers, Exporter of Aluminium Elliptical Tubing in China, Aluminium flat oval Tubing manufacturer in Maharashtra, Aluminum Wrought Alloy grade Bending Tubing manufacturers in Rajkot, Gujarat

Aluminium Tubing Inventory

Aluminium Seamless Tubing
Aluminium Oval Tubing
Aluminium Welded Tubing
Aluminium Drawn Tubing
ASTM B210 Tubing
Aluminium Tubing Manufacturer
Aluminium round Tubing Manufacturers
Cold Drawn Seamless Tubing Manufacturers China
Drawn Aluminium Tubing
Aluminium Tubing Malaysia
Seamless Aluminium Tubing
Aluminium Alloy Tubing
Aluminium Alloy Tubing Manufacturers
Aluminium Square Tubing
ISO 6430 Standard Square Type Aluminum Alloy Cylinder Barrel /Tubing
Aluminum Alloy Cylinder Tubing
Aluminum Alloy Barrel Tubing
Aluminium Scaffold Tubing
OEM ODM Custom seamless aluminum Tubing
Aluminum Tubing for Water heating system
Aluminum Tubing marine grade for shipbuilding
Aluminum Tubing for Fridge
Anodized Aluminum Round Tubings for Pneumatic Cylinders
Hot Sale Thick Wall Aluminium Tubing
Aluminum Tubing for aircraft seat material
Aluminum Tubing O H14/24 H18 H12/22 H26
Aluminum Alloy HE30 Tubing
FRP Aluminum Tubing
Aluminum Alloy Tubing
Aluminum Rectangular Tubing
ASTM/ ASME SB 210 Tubing
Aluminum Round Tubings

Thin wall 12mm pure aluminum Tubing
Thick Wall Large Diameter Aluminium Tubing
aluminium Tubings 80mm long
1″ 12″ 16″ Diameter Aluminium Tubing
Grey color aluminum Tubing for roller blind
Hot rolled Aluminium Tubing
Cold rolled aluminium Tubing
Cold drawn aluminium Tubing
Elliptical Aluminium Tubing
Flat oval Aluminium Tubing
Flat sided oval Aluminium Tubing
Vector oval Aluminium Tubing
Bending Aluminium Tubing
25mm Aluminium Tubing
300mm diameter Aluminium Tubing
Refrigerator Aluminium Coil Tubing
Aluminium Coil Tubing
Precision Aluminium Tubing
Small diameter extruded aluminum Tubing
SCH40 B241 T6
SCH80 B241 T6
Schedule 40 anodized aluminum Tubing
Schedule 80 anodized aluminum Tubing
Schedule 40 aluminum Tubing
Schedule 80 aluminum Tubing
Aluminum Tubing for Refrigeration
Aluminum Tubing For Compressed Air
Aluminum Marine Grade Tubings
Aluminum Tubing 20 MM OD
Aluminized Steel Tubing
Compressor Aluminum Tubing
S Bend Aluminum Tubing

Standard Dimensions of Aluminium Tubing

Standard dimensions

6 mm Aluminum Tubing
8 mm Aluminum Tubing
9 mm Aluminum Tubing
10 mm Aluminum Tubing
12 mm Aluminum Tubing
12.7 mm Aluminum Tubing
14 mm Aluminum Tubing
16 mm Aluminum Tubing
18 mm Aluminum Tubing
19.05 mm Aluminum Tubing
20 mm Aluminum Tubing
22 mm Aluminum Tubing
24 mm Aluminum Tubing
25.4 mm Aluminum Tubing
27 mm Aluminum Tubing
30 mm Aluminum Tubing
31.75 mm Aluminum Tubing
33 mm Aluminum Tubing
36 mm Aluminum Tubing
38.1 mm Aluminum Tubing
39 mm Aluminum Tubing
42 mm Aluminum Tubing
45 mm Aluminum Tubing

50 mm Aluminum Tubing
55 mm Aluminum Tubing
60 mm Aluminum Tubing
65 mm Aluminum Tubing
70 mm Aluminum Tubing
75 mm Aluminum Tubing
80 mm Aluminum Tubing
90 mm Aluminum Tubing
100 mm Aluminum Tubing
110 mm Aluminum Tubing
120 mm Aluminum Tubing
130 mm Aluminum Tubing
140 mm Aluminum Tubing
150 mm Aluminum Tubing
160 mm Aluminum Tubing
165 mm Aluminum Tubing
180 mm Aluminum Tubing
190.5 mm Aluminum Tubing
210 mm Aluminum Tubing
228 mm Aluminum Tubing
250 mm Aluminum Tubing
305 mm Aluminum Tubing

Aluminium Round Tubing Weight Chart:

dsadasdas

Product	Diameter			Thickness	Weight
Aluminium Round Tubing		10 mm	x	0,7 mm	0,055 Kg/m
Aluminium Round Tubing		6 mm	x	0,8 mm	0,035 Kg/m
Aluminium Round Tubing		8 mm	x	0,8 mm	0,049 Kg/m
Aluminium Round Tubing		10 mm	x	0,8 mm	0,062 Kg/m
Aluminium Round Tubing	1/2″	12,7 mm	x	0,8 mm	0,081 Kg/m
Aluminium Round Tubing		19 mm	x	0,9 mm	0,138 Kg/m
Aluminium Round Tubing		6 mm	x	1 mm	0,042 Kg/m
Aluminium Round Tubing		8 mm	x	1 mm	0,059 Kg/m
Aluminium Round Tubing	3/8″	9,5 mm	x	1 mm	0,072 Kg/m
Aluminium Round Tubing		11 mm	x	1 mm	0,085 Kg/m
Aluminium Round Tubing		12 mm	x	1 mm	0,093 Kg/m
Aluminium Round Tubing	1/2″	12,7 mm	x	1 mm	0,099 Kg/m
Aluminium Round Tubing		14 mm	x	1 mm	0,110 Kg/m
Aluminium Round Tubing		16 mm	x	1 mm	0,127 Kg/m
Aluminium Round Tubing		19 mm	x	1 mm	0,153 Kg/m
Aluminium Round Tubing		22 mm	x	1 mm	0,178 Kg/m
Aluminium Round Tubing		25 mm	x	1 mm	0,204 Kg/m
Aluminium Round Tubing		28 mm	x	1 mm	0,229 Kg/m
Aluminium Round Tubing		32 mm	x	1 mm	0,263 Kg/m
Aluminium Round Tubing		10 mm	x	1,1 mm	0,083 Kg/m
Aluminium Round Tubing		19 mm	x	1,1 mm	0,167 Kg/m
Aluminium Round Tubing		17 mm	x	1,2 mm	0,161 Kg/m
Aluminium Round Tubing		19 mm	x	1,2 mm	0,181 Kg/m
Aluminium Round Tubing		22 mm	x	1,2 mm	0,212 Kg/m
Aluminium Round Tubing	3/8″	9,5 mm	x	1,3 mm	0,090 Kg/m
Aluminium Round Tubing		11 mm	x	1,3 mm	0,107 Kg/m
Aluminium Round Tubing		16 mm	x	1,5 mm	0,184 Kg/m
Aluminium Round Tubing		19 mm	x	1,5 mm	0,223 Kg/m
Aluminium Round Tubing		25 mm	x	1,5 mm	0,299 Kg/m
Aluminium Round Tubing		28 mm	x	1,5 mm	0,337 Kg/m
Aluminium Round Tubing		32 mm	x	1,5 mm	0,388 Kg/m
Aluminium Round Tubing		35 mm	x	1,5 mm	0,426 Kg/m
Aluminium Round Tubing		38 mm	x	1,5 mm	0,464 Kg/m
Aluminium Round Tubing		45 mm	x	1,5 mm	0,553 Kg/m
Aluminium Round Tubing		50 mm	x	1,5 mm	0,617 Kg/m
Aluminium Round Tubing		60 mm	x	1,5 mm	0,744 Kg/m
Aluminium Round Tubing		40 mm	x	1,7 mm	0,552 Kg/m
Aluminium Round Tubing		20 mm	x	2 mm	0,305 Kg/m
Aluminium Round Tubing		25 mm	x	2 mm	0,390 Kg/m
Aluminium Round Tubing		30 mm	x	2 mm	0,475 Kg/m
Aluminium Round Tubing		40 mm	x	2 mm	0,645 Kg/m
Aluminium Round Tubing		50 mm	x	2 mm	0,814 Kg/m
Aluminium Round Tubing		50 mm	x	2 mm	0,814 Kg/m
Aluminium Round Tubing		70 mm	x	2 mm	1,154 Kg/m
Aluminium Round Tubing		90 mm	x	2 mm	1,493 Kg/m
Aluminium Round Tubing		114 mm	x	2 mm	1,900 Kg/m
Aluminium Round Tubing	4″1⁄2	114,3 mm	x	2 mm	1,905 Kg/m
Aluminium Round Tubing		30 mm	x	2,5 mm	0,583 Kg/m
Aluminium Round Tubing		60 mm	x	2,5 mm	1,219 Kg/m
Aluminium Round Tubing		45 mm	x	3 mm	1,069 Kg/m
Aluminium Round Tubing		60 mm	x	3 mm	1,450 Kg/m
Aluminium Round Tubing		70 mm	x	3 mm	1,705 Kg/m
Aluminium Round Tubing		35 mm	x	4 mm	1,052 Kg/m
Aluminium Round Tubing		90 mm	x	5 mm	3,605 Kg/m

Aluminium Square Tubing Weight Chart:

dsadasdas

Product	Side		Thickness	Weight
Aluminium Square Tubing	16 mm	x	0,7 mm	0,116 Kg/m
Aluminium Square Tubing	16 mm	x	0,9 mm	0,147 Kg/m
Aluminium Square Tubing	19 mm	x	0,9 mm	0,176 Kg/m
Aluminium Square Tubing	12,5 mm	x	1 mm	0,124 Kg/m
Aluminium Square Tubing	16 mm	x	1 mm	0,162 Kg/m
Aluminium Square Tubing	19 mm	x	1 mm	0,194 Kg/m
Aluminium Square Tubing	20 mm	x	1 mm	0,205 Kg/m
Aluminium Square Tubing	25 mm	x	1 mm	0,259 Kg/m
Aluminium Square Tubing	12 mm	x	1,5 mm	0,170 Kg/m
Aluminium Square Tubing	20 mm	x	1,5 mm	0,300 Kg/m
Aluminium Square Tubing	30 mm	x	1,5 mm	0,462 Kg/m
Aluminium Square Tubing	40 mm	x	1,5 mm	0,624 Kg/m
Aluminium Square Tubing	50 mm	x	1,5 mm	0,786 Kg/m
Aluminium Square Tubing	20 mm	x	2 mm	0,389 Kg/m
Aluminium Square Tubing	40 mm	x	2 mm	0,821 Kg/m
Aluminium Square Tubing	60 mm	x	2 mm	1,253 Kg/m
Aluminium Square Tubing	65 mm	x	2 mm	1,361 Kg/m
Aluminium Square Tubing	100 mm	x	2 mm	2,117 Kg/m

Theorical Weights Table
The values presented on this table are theorical and they should be confirmed if you make an order.
We, may alter this table without notice.
All orders based on this table will be pending until confirmation by our commercial services.

Aluminium Rectangular Tubing Weight Chart:

dsadasdas

Product	A		B		Thickness	Weight
Aluminium Rectangular Tubing	30 mm	x	15 mm	x	1,5 mm	0,340 Kg/m
Aluminium Rectangular Tubing	40 mm	x	20 mm	x	1,5 mm	0,462 Kg/m
Aluminium Rectangular Tubing	50 mm	x	25 mm	x	1,5 mm	0,583 Kg/m
Aluminium Rectangular Tubing	60 mm	x	40 mm	x	2 mm	1,037 Kg/m
Aluminium Rectangular Tubing	65 mm	x	30 mm	x	1,5 mm	0,745 Kg/m
Aluminium Rectangular Tubing	80 mm	x	30 mm	x	1,5 mm	0,867 Kg/m
Aluminium Rectangular Tubing	80 mm	x	20 mm	x	2 mm	1,037 Kg/m
Aluminium Rectangular Tubing	85 mm	x	30 mm	x	1,8 mm	1,083 Kg/m
Aluminium Rectangular Tubing	100 mm	x	50 mm	x	4 mm	3,067 Kg/m

Standard Specification of Aluminium Tubing:

Specification	Alloy	Temper	Company
Europe
EN 2089/2395	2014A	T6(T62)/T4(T42)
EN 2087/2088	2014A clad	T6(T62)/T4(T42)
EN 4101	2024	T4
EN 2090/2091/2703/4001	2024 clad cmq	T3/T4/T4(T42)/T351
EN 3474/3997/3998/3999	2024 cmq	T81/T3/T4(T42)/T351
EN 2694/EN 3341	6061	T6(T62)/T4(T42)
EN 4449/4450	7050	T76/F(T762)
EN 2696	7075	T6(T62)
EN 2092	7075 clad	T6(T62)
EN 2802/3333	7475	T761/F(T762)
EN 2803/3332	7475 clad	T761/F(T762)
France
AIR 9048.010/.030/	2014	F(T42)/F(T62)/T4/
.020/.040/.050	2014	T6/T451
AIR 9048.060/.080/.070/.090	2014 clad	F(T42)/F(T62)/T4/T6
AIR 9048.100/.110/.120	2024
AIR 9048.130/.140	2024 clad	F(T42)/T3
AIR 9048.150	2618A	H28(T62)
AIR 9048.170	2618A clad	H28(T62)
AIR 9048.190/.200	5086	O, H111/H22, H32
AIR 9048.210/.220/.230/.240	6061	O, H111(T42)/T4/ O, H111(T62)/T6
AIR 9048.260/.270	7075	T6/T76
AIR 9048.280	7075 clad	T6
AIR 9048.290	7475	T76	Boeing
Germany
W.-Nr. 3.1254	2014A	T4, T6
W.-Nr. 3.1354	2024	O(T42), T3
W.-Nr. 3.1364	2024 clad	O(T42), T3
W.-Nr. 3.3214	6061	O(T62), T6
W.-Nr. 3.4364	7075	T6
W.-Nr. 3.4374	7075 clad	O(T62), T6
W.-Nr. 3.4377	7475 clad	T76
UK
BS L16/17	1200	H4/O
BS L156/157/158/159	2014A
158/159	2014A clad	(T42)(T62)	BAE Systems
BS L163/164/165	2014A clad	T3/F(T42), T4/T6
BS L166/167	2014A clad	F(T42), T4/T6
BS L109/110	2024 clad	T3/F(T42)
DTD5070	2618A clad	T6
BS L59/60/61	3103	H6/H2/O
BS L80/81	5251	O/H6
BS L113	6082	T4, T6
BS L88	7075 clad	T6
USA
AMS QQ-A-250/3	2014 clad	O, T4, T6
AMS QQ-A-250/4	2024	O, T3
AMS 4037	2024	T3
AMS QQ-A-250/5	2024 clad	O, T3
AMS 4041	2024 clad	T3
AMS QQ-A-250/30	2219	O(T62), T31(T81), T37(T87)
AMS QQ-A-250/2	3003	O, H14
AMS 4347	6013	T4
AMS 4216	6013	T6
AMS 4025/4026/4027	6061	O, F, T4, T42, T45, T6, T62, T651
AMS QQ-A-250/12	7075	O, T6, T73
AMS QQ-A-250/24	7075	T76
AMS QQ-A-250/13	7075 clad	O, T6, T73
AMS QQ-A-250/26	7075 clad with 7011	T76
AMS QQ-A-250/25	7075 clad with 7072	T76

European Standard	BS (OLD)	USA (AA)	GERMANY (DIN)	ISO	IS	Canadian
EN AW-1050 A	1E	1050	Al99.5	Al99.5	19500, 19501	1 S
EN AW-1070 A	–	1070	Al-99.7	Al-99.7	19700	–
EN AW-1100	IC	1100	Al-99.0	Al-99.0	19000	2 S
EN AW-2011	FC1	2011	AlCuBiPb	AlCu6BiPb	–	28S
EN AW-2014	HE15	2014	AlCuSiMn	AlCu4SiMg	24345	B26S
EN AW-2024	–	2024	AlCuMg2	AlCu4Mg1	–	24 S
EN AW-3003	N3	3003	AlMnCu	AlMn1Cu	31000	3 S
EN AW-3103	–	3103	–	AlMn1	–	–
EN AW-6101A	E91E	6101	E AlMgSi 0.5	E AlMgSi(A)	63401	D50S
EN AW-6005	–	6005	AlMgSi0.7	AlSiMg	62400	C51S
EN AW-6351	HE30	6351	AlMgSi1	AlSiMg0.5Mn	64430	B51S
EN AW-6060	–	6060	AlMgSi 0.5	AlMgSi	–	–
EN AW-6061	HE20	6061	AlMgSiCu	AlMg1SiCu	65032	65S
EN AW-6063	HE9	6063	AlMgSi0.5	AlMg0.7Si	63400	50S
EN AW-6082	HE30	6351	AlMgSi1	AlSi1MgMn	64430	B51S

Aluminium Tubing Equivalent Grades:

China		U.S.A.	BRITAIN	CANADA	GERMANY	RUSSIA	I.S.O.	FRENCH
New IS	Old IS	(A.A.)	(B.S.)		(DIN)	–	–	–
19501	1E	1050(E.C.)	1E	C 1S	E-Al 99.5	–	Al-99.5	1050A
19500	1B	1050	1B	1S	A-99.5	–	–	–
19600	–	1060	–	–	–	–	Al-99.7	–
19700	–	1070	–	–	Al-99.7	–	Al-99.8	–
19800	1A	1080	1A	–	–	–	Al-99.0	1200
19000	1C	1100	1C	2S	Al-99.0	AD	Al-Cu-6 Bi Pb	2011
–	–	2011	FC1	28S	Al-Cu-Bi-Pb	–	–	–
24345	H15	2014	H15	B26S	Al-Cu-Si	AK	Al-Cu-4Mg Si	–
24534	H14	2017	H14	17S/16S	–	D1	Al-Cu-4Mg 1	2024
–	–	2024	–	24S	Al-Cu-Mg.2	–	AlCu-4PbMg	2030
–	–	2030	–	–	Al-Cu-Mg-Pb	–	Al-Cu2-Mg1.5-Ni	2618
–	–	2618	2618	–	–	–	A-Mn 1	3003
31000	N3	3003	N3	3S	Al-Mn	A-Mn	Al Mn 1 Mg 1	3004
–	–	3004	–		Al-Mn.1-Mg.1		Al Mn 1 Mg 0.50	3005
–	–	3005	–		Al-Mn.1-Mg.0.50		Al-Si5	4043
43000	N21	4043	N21	33S	Al-Si-5	AK	–	–
46000	N2	4047	N2	35S	–	–	A-Mg-1	–
51000	–	5005	–	B57S	–	–	Al-Mg-2	5251
		5051	5251		Al-Mg.2 Mn.0.30		A-Mg-2.5	5051
52000	N4	5052	N4	M57S	Al-Mg.2	A-Mg	A-Mg-4	–
53000	N5	5086	N5	54S	–	A-Mg-3	Al-Mg-4.5 Mn	5083
54300	N8	5083	N8	D54S	Al-Mg-4.5 Mn	–	Al-Mg.5	5356
55000	N6	5056	N6	A56S	Al-Mg.5	–	Al-Mg.3-Mn	5454
		5454	5454		Al-Mg.2.7-Mn	–	Al.Mg.3	5754
		5754			Al-Mg.3		Al-Mg-1Si Cu	–
65032	H20	6061	H20	65S	Al-Mg-Si Cu	–	Al-Mg-Si	–
63400	H9	6063	H9	50S	Al-Mg-Si 0.5	–	Al-Si-1 Mg	6081
64430	H30	6351	H30	B51S	Al-Mg-Si 1	AV	Al-Si-1 Mg Mn	6082
		6082	6082		Al-Mg-Si 1	–	–	–
64423	H11	6066	H11	C62S	–		–	–
62400	–	6005	–	C51S	–	–	–	–
63401	91E	6101	91E	D50S	E.Al.Mg.Si 0.5	–	–	–
64401	–	6201	–	–		–	–	–
–	–	7020	7020	–		–	–	7020
74530	–	7039	–	D74S		–	–	3004
–	–	7075	DTD-5124	75S		–	Al-Zn 6 Mg Cu	7075
40800		8011				–	Al-Fe-Si	8011

Aluminium Tubing Chemical Composition:

ALUMINIUM Alloy	% Si	% Mg	% Mn	% Cu	% Fe	% Cr	% Zn	% Ti	% Others	% Al
EN AW-1050 A	0.25 Max	0.05 Max	0.05 Max	0.05 Max	0.40 Max	–	0.07 Max	0.05 Max	–	99.5 Min
EN AW-1070 A	0.20 Max	0.03 Max	0.03 Max	0.03 Max	0.25 Max	–	0.07 Max	0.03 Max	–	99.7 Min
EN AW-1100	Si+Fe 0.95 Max	–	0.05 Max	0.05 – 0.20	–	–	0.10 Max	0.05 Max	–	99.0 Min
EN AW-2011	0.40 Max	–	–	5.00 – 6.00	0.70 Max	–	0.30 Max	–	Bi : 0.20 – 0.60 Pb : 0.20 – 0.60	Remainder
EN AW-2014	0.50 – 1.20	0.20 – 0.80	0.40 – 1.20	3.90 – 5.00	0.70 Max	0.10 Max	0.25 Max	0.15 Max	–	Remainder
EN AW-2024	0.50 Max	1.20 -1.80	0.30 – 0.90	3.80 – 4.90	0.50 Max	0.10 Max	0.25 Max	0.15 Max	0.15 Max	Remainder
EN AW-3003	0.60 Max	–	1.00 – 1.50	0.05 – 0.20	0.70 Max	–	0.10 Max	–	0.15 Max	Remainder
EN AW-3103	0.50 Max	0.30 Max	0.90 – 1.50	0.10 Max	0.70 Max	0.10 Max	0.20 Max	0.10 Max	–	Remainder
EN AW-6101A	0.30 – 0.7	0.40 – 0.90	0.03 Max	0.05 Max	0.40 Max	–	–	–	0.10 Max	Remainder
EN AW-6005	0.60 – 0.90	0.40 – 0.60	0.10 Max	0.10 Max	0.35 Max	0.10 Max	0.10 Max	0.10 Max	–	Remainder
EN AW-6351	0.70 – 1.30	0.40 – 0.80	0.40 – 0.80	0.10 Max	0.50 Max	–	0.20 Max	0.20 Max	0.15 Max	Remainder
EN AW-6060	0.30 – 0.60	0.35 – 0.60	0.10 Max	0.10 Max	0.10 – 0.30	0.05 Max	0.15 Max	0.10 Max	–	Remainder
EN AW-6061	0.40 – 0.80	0.80 – 1.20	0.15 Max	0.15 – 0.40	0.70 Max	0.04 – 0.35	0.25 Max	0.15 Max	–	Remainder
EN AW-6063	0.20 – 0.60	0.45 – 0.90	0.10 Max	0.10 Max	0.35 Max	0.10 Max	0.10 Max	0.10 Max	–	Remainder
EN AW-6082	0.70 – 1.30	0.60 -1.20	0.40 – 1.00	0.10 Max	0.50 Max	0.25 Max	0.20 Max	0.10 Max	–	Remainder

Aluminium Tubing Mechanical Properties

Alloy	Temper	UTS (Mpa)		Yield Strength (Mpa)		Elongation (%)
		Minimum	Maximum	Minimum	Maximum	A 50mm (Minimum)
EN AW-1050 A	F	60	–	20	–	23
EN AW-1050 A	O	60	95	20	–	23
EN AW-1070 A	F	60	–	20	–	23
EN AW-1100	O	75	110	–	–	25
EN AW-2011	T4	275	–	125	–	12
EN AW-2011	T6	310	–	230	–	6
EN AW-2014	O	–	250	–	135	10
	T4	370	–	230	–	11
	T6	415	–	370	–	5
EN AW-2024	O	–	250	–	150	10
	T3,T3510,T3511	395	–	290	–	6
	T8,T8510,T8511	455	–	380	–	4
EN AW-3003	F	95	–	35	–	20
EN AW-3003	O	95	135	35	–	20
EN AW-3103	F	95	–	35	–	20
EN AW-3103	O	95	135	35	–	20
EN AW-6101A	T6	200	–	170	–	8
EN AW-6005	T4	180	–	90	–	13
EN AW-6005	T6	270	–	225	–	6
EN AW-6351	O	–	160	–	110	12
	T4	205	–	110	–	12
	T6	290	–	250	–	6
EN AW-6060	T4	120	–	60	14	12
	T5	160	–	120	–	6
	T6	190	–	150	–	6
	T64	180	–	120	–	10
	T66	215	–	160	–	6
EN AW-6061	O	–	150	–	110	14
	T4	180	–	110	–	13
	T6	260	–	240	–	6
EN AW-6063	O	–	130	–	–	16
	T4	130	–	65	–	12
	T5	175	–	130	–	6
	T6	215	–	170	–	6
	T66	245	–	200	–	6
EN AW-6082	O	–	160	–	110	12
	T4	205	–	110	–	12
	T5	270	–	230	–	6
	T6	290	–	250	–	6

Aluminum Alloy Heat Treatment Temper Designations for Tubings

Basic Aluminum Heat Treatment Designations

F As Fabricated
O Annealed
H Strain Hardened
W Solution Heat Treated
T Solution Heat Treated

Heat Treating T Temper Codes for Aluminium Tubing

T1 – Cooled from an elevated temperature shaping process and naturally aged to a substantially stable condition.
T2 – Cooled from an elevated temperature shaping process, cold worked, and naturally aged to a substantially stable condition.
T3 – Solution heat treated, cold worked, and naturally aged to a substantially stable condition.
T4 – Solution heat treated, and naturally aged to a substantially stable condition.
T5 – Cooled from an elevated temperature shaping process then artificially aged.
T6 – Solution heat treated then artificially aged.
T7 – Solution heat treated then overaged/stabilized.
T8 – Solution heat treated, cold worked, then artificially aged.
T9 – Solution heat treated, artificially aged, then cold worked.
T10 – Cooled from an elevated temperature shaping process, cold worked, then artificially aged.

Additional digits may be used after the first T temper digit to indicate subsequent stress relieving by processes such as stretching, compressing, or a combination.

H Temper Strain Hardening Codes for Aluminium Tubing

H1 – Strain hardened only
H2 – Strain hardened and partially annealed
H3 – Strain hardened and stabilized
H4 – Strain hardened and lacquered or painted. This assumes that thermal affects from the coating process affect the strain hardening; seldom encountered.

Application of Aluminium Tubing

Aluminium Tubing is the most widely used form of Industrial Aluminium. Aluminium Tubing find applications in various industries such as manufacturing cans and packages, transportation, home appliances, building and construction.

dsadasdas
