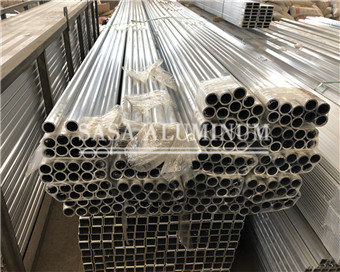

Aluminium Pipe

Short Description:


  • Specifications: ASTM B210
  • Temper: O, H12, H14, H16, H18
  • Surface: Polished, hair line, brush
  • Form: extruded, seamless, drawn
  • Product Detail

    FAQ

    Product Tags

    Aluminium Pipe can be produced in two types drawn and extruded aluminum pipe. Extruded aluminum pipe is stocked in both seamless and structural (port-hole die). Aluminium pipe is used in pressure or structural application. These Aluminium Pipe are light weight, excellent corrosion resistance, and the ability to transmit heat rapidly are only a few of the benefits of aluminum pipes.

    Sasa Aluminium Incorporation is the leading manufacturer and exporter of Aluminium Pipe, Oval Aluminium Pipe, and Aluminium Square Extruded Pipe that are utilized in divers industries such as aerospace, medical, electronics, firearms and industrial. Supplier of ASTM B210 Drawn Seamless Aluminum Alloy Pipe in Tempers manufactured in accordance with international standards ASTM B210, ASME SB210, ASTM B221/ B235 /B241 B313 /B317 /B345 B404 /B429 /B483 /B491 /B547, check Aluminium Drawn Seamless Pipe. Wholesale Trader of Extruded Aluminum Pipe offered by Sasa Aluminium, China.

    Specifications of Aluminium Pipe:
    Aluminium Alloy ASTM B210, ASTM B234, ASTM B241, ASTM B483; GB/T 6893-2000, GB/T 4437-2000: JIS H4080-2006
    Aluminium Pipe American Specifications: ASTM B210 drawn, ASTM B241 extruded, AMS 4173, AMS 4080, AMS 4082, AMS4083, WW-T-700/6
    Aluminium Pipe British Specifications H20, HE 20
    Material 1060, 1200, 1100, 2024, 2124, 3003, 3004, 5050, 5083, 5154, 5454, 5652, 5086, 5056, 5754, 6061, 6062, 6063, 7075, etc.
    Aluminium Pipe Standard  ASTM, ASME, AMS, ASTM B210M, GB/T 3191, JIS H4040, ASTM B210, AMS QQ-A-200/9
    Aluminium Pipe Temper O, H12, H14, H16, H18, H22, H24, H26, H32, H112
    Aluminium Pipe Form Aluminium extruded, seamless, drawn and coiled Pipe in Black & Bright Finish
    Aluminium Pipe Sizes 1/8″ – 16″ (3mm – 2500mm) OD
    .020″ – 2″ (.2mm – 150mm) wall
    (1m-12m) Length
    Machinability Fair
    Weldability Good
    Corrosion Resistance Good
    Aluminium Pipe Bright, Polish & Black
    Aluminium Pipe Surface Anodized, Oxidation, electrophoresis coating, fluorine carbon spraying, powder coating, wood grain transfer printing, mechanical drawing, mechanical polishing, sand blasting, Polished, hair line, brush,
    Mill finished, Bright finish, paper interleaved
    Surface treatment Nature, Black painting, Transparent oil, rust-proof black oil or hot-dip galvanized
    Aluminium Pipe Delivery Time 10-30 days after receiving the prepayment
    Aluminium Pipe Packaging Details Export standard package: bundled wooden box, suit for all kinds of transport or be required.
    ASTM B210 Alloy Pipe Outer packing Export standard, wooden pallet
    Here are 6 different types of finishes for extruded aluminum Pipe:
    1. Anodizing
    2. Powder Coating
    3. Liquid Coatings
    4. Chemical Finishes
    5. Mechanical Finishes
    6. Pretreatment
    Applications Bicycle Parts, aircraft ducting, wheelchair frames, telescopes, machined bushes, air cylinders
    We Export Aluminium Pipe to Singapore, Indonesia, Ukraine, Korea, Thailand, Vietnam, Saudi Arabia, Brazil, Spain, Canada, USA, Egypt, Iran, China, Kuwait, Dubai, Oman, Kuwait, Peru, Mexico, Iraq, Russia, Malaysia, etc.



    Aluminum Pipe Features:
    1.Materials 7001-T6/T9, 7075-T9 alloy
    2.High strengh 660Mpa
    3.Light weight Aluminum alloy is lighter weight
    4.Tightness tolerance a) Inner diameter:±0.02mm b) Outer diameter:±0.02mm
    5.Weight ±0.5%
    6.Straightened to 0.12mm



    Aluminum Alloy Pipe ASTM Specification
    • ASTM B210 Drawn Seamless Aluminum Alloy Pipe
    • ASTM B221 Extruded Aluminum Alloy Pipe
    • ASTM B234 Drawn Seamless Aluminum Alloy Pipe for Condensers & Heat Exchangers
    • ASTM B234 Heat Exchanger Pipe
    • ASTM B234 Condenser Pipe
    • ASTM B235 Aluminum Alloy Extruded Pipe
    • ASTM B241 Seamless Extruded Aluminum Alloy Pipe
    • ASTM B313 Aluminum Alloy Round Welded Pipe
    • ASTM B317 Extruded Aluminum Alloy Pipe
    • ASTM B345 Seamless Extruded Aluminum Alloy Pipe
    • ASTM B404 Seamless Aluminum Alloy Condenser & Heat Exchanger Pipe with Integral Fins
    • ASTM B404 Seamless Condenser Pipe
    • ASTM B404 Seamless Heat Exchanger Pipe
    • ASTM B429 Extruded Aluminum Alloy Structural Pipe
    • ASTM B483 Drawn Aluminum Alloy Pipe
    • ASTM B491 Extruded Round Coiled Aluminum Alloy Pipe
    • ASTM B547 Aluminum Alloy Formed and Arc Welded Round Pipe

    Types of Aluminium Pipe:

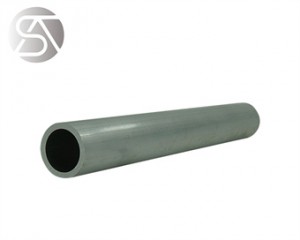

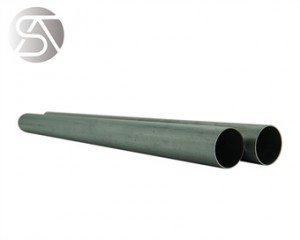

    Aluminium Pipe (3) Aluminium Pipe (2)

    Aluminium Thin wall Pipe stockholder in China, Aluminium Thick Wall Pipe wholesaler in China, Large Diameter Aluminium Pipe importers in China, Hot rolled Aluminium Pipe Cut To Size At Best Price

    Aluminium Pipe Inventory

    • Aluminium Seamless Pipe
    • Aluminium Oval Pipe
    • Aluminium Welded Pipe
    • Aluminium Drawn Pipe
    • ASTM B210 Pipe
    • Aluminium Pipe Manufacturer
    • Aluminium round Pipe Manufacturers
    • Cold Drawn Seamless Pipe Manufacturers China
    • Drawn Aluminium Pipe
    • Aluminium Pipe Malaysia
    • Seamless Aluminium Pipe
    • Aluminium Alloy Pipe
    • Aluminium Alloy Pipe Manufacturers
    • Aluminium Square Pipe
    • ISO 6430 Standard Square Type Aluminum Alloy Cylinder Barrel /Pipe
    • Aluminum Alloy Cylinder Pipe
    • Aluminum Alloy Barrel Pipe
    • Aluminium Scaffold Pipe
    • OEM ODM Custom seamless aluminum Pipe
    • Aluminum Pipe for Water heating system
    • Aluminum Pipe marine grade for shipbuilding
    • Aluminum Pipe for Fridge
    • Anodized Aluminum Round Pipes for Pneumatic Cylinders
    • Hot Sale Thick Wall Aluminium Pipe
    • Aluminum Pipe for aircraft seat material
    • Aluminum Pipe O H14/24 H18 H12/22 H26
    • Aluminum Alloy HE30 Pipe
    • FRP Aluminum Pipe
    • Aluminum Alloy Pipe
    • Aluminum Rectangular Pipe
    • ASTM/ ASME SB 210 Pipe
    • Aluminum Round Pipes
    • Thin wall 12mm pure aluminum Pipe
    • Thick Wall Large Diameter Aluminium Pipe
    • aluminium Pipes 80mm long
    • 1″ 12″ 16″ Diameter Aluminium Pipe
    • Grey color aluminum Pipe for roller blind
    • Hot rolled Aluminium Pipe
    • Cold rolled aluminium Pipe
    • Cold drawn aluminium Pipe
    • Elliptical Aluminium Pipe
    • Flat oval aluminium Pipe
    • Flat sided oval aluminium Pipe
    • Vector oval aluminium Pipe
    • Bending aluminium Pipe
    • 25mm aluminium Pipe
    • 300mm diameter aluminium Pipe
    • Refrigerator Aluminium Coil Pipe
    • Aluminium Coil Pipe
    • Precision aluminium Pipe
    • Small diameter extruded aluminum Pipe
    • SCH40 B241 T6
    • SCH80 B241 T6
    • Schedule 40 anodized aluminum Pipe
    • Schedule 80 anodized aluminum Pipe
    • Schedule 40 aluminum Pipe
    • Schedule 80 aluminum Pipe
    • Aluminum Pipe for Refrigeration
    • Aluminum Pipe For Compressed Air
    • Aluminum Marine Grade Pipes
    • Aluminum Pipe 20 MM OD
    • Aluminized Steel Pipe
    • Compressor Aluminum Pipe
    • S Bend Aluminum Pipe



    Standard Dimensions of Aluminium Pipe

    Standard dimensions

    • 6 mm Aluminum Pipe
    • 8 mm Aluminum Pipe
    • 9 mm Aluminum Pipe
    • 10 mm Aluminum Pipe
    • 12 mm Aluminum Pipe
    • 12.7 mm Aluminum Pipe
    • 14 mm Aluminum Pipe
    • 16 mm Aluminum Pipe
    • 18 mm Aluminum Pipe
    • 19.05 mm Aluminum Pipe
    • 20 mm Aluminum Pipe
    • 22 mm Aluminum Pipe
    • 24 mm Aluminum Pipe
    • 25.4 mm Aluminum Pipe
    • 27 mm Aluminum Pipe
    • 30 mm Aluminum Pipe
    • 31.75 mm Aluminum Pipe
    • 33 mm Aluminum Pipe
    • 36 mm Aluminum Pipe
    • 38.1 mm Aluminum Pipe
    • 39 mm Aluminum Pipe
    • 42 mm Aluminum Pipe
    • 45 mm Aluminum Pipe
    • 50 mm Aluminum Pipe
    • 55 mm Aluminum Pipe
    • 60 mm Aluminum Pipe
    • 65 mm Aluminum Pipe
    • 70 mm Aluminum Pipe
    • 75 mm Aluminum Pipe
    • 80 mm Aluminum Pipe
    • 90 mm Aluminum Pipe
    • 100 mm Aluminum Pipe
    • 110 mm Aluminum Pipe
    • 120 mm Aluminum Pipe
    • 130 mm Aluminum Pipe
    • 140 mm Aluminum Pipe
    • 150 mm Aluminum Pipe
    • 160 mm Aluminum Pipe
    • 165 mm Aluminum Pipe
    • 180 mm Aluminum Pipe
    • 190.5 mm Aluminum Pipe
    • 210 mm Aluminum Pipe
    • 228 mm Aluminum Pipe
    • 250 mm Aluminum Pipe
    • 305 mm Aluminum Pipe



    Aluminium Round Pipe Weight Chart:

    dsadasdas

    Product Diameter   Thickness Weight
    Aluminium Round Pipe   10 mm x 0,7 mm 0,055 Kg/m
    Aluminium Round Pipe   6 mm x 0,8 mm 0,035 Kg/m
    Aluminium Round Pipe   8 mm x 0,8 mm 0,049 Kg/m
    Aluminium Round Pipe   10 mm x 0,8 mm 0,062 Kg/m
    Aluminium Round Pipe  1/2″ 12,7 mm x 0,8 mm 0,081 Kg/m
    Aluminium Round Pipe   19 mm x 0,9 mm 0,138 Kg/m
    Aluminium Round Pipe   6 mm x 1 mm 0,042 Kg/m
    Aluminium Round Pipe   8 mm x 1 mm 0,059 Kg/m
    Aluminium Round Pipe 3/8″ 9,5 mm x 1 mm 0,072 Kg/m
    Aluminium Round Pipe   11 mm x 1 mm 0,085 Kg/m
    Aluminium Round Pipe   12 mm x 1 mm 0,093 Kg/m
    Aluminium Round Pipe  1/2″ 12,7 mm x 1 mm 0,099 Kg/m
    Aluminium Round Pipe   14 mm x 1 mm 0,110 Kg/m
    Aluminium Round Pipe   16 mm x 1 mm 0,127 Kg/m
    Aluminium Round Pipe   19 mm x 1 mm 0,153 Kg/m
    Aluminium Round Pipe   22 mm x 1 mm 0,178 Kg/m
    Aluminium Round Pipe   25 mm x 1 mm 0,204 Kg/m
    Aluminium Round Pipe   28 mm x 1 mm 0,229 Kg/m
    Aluminium Round Pipe   32 mm x 1 mm 0,263 Kg/m
    Aluminium Round Pipe   10 mm x 1,1 mm 0,083 Kg/m
    Aluminium Round Pipe   19 mm x 1,1 mm 0,167 Kg/m
    Aluminium Round Pipe   17 mm x 1,2 mm 0,161 Kg/m
    Aluminium Round Pipe   19 mm x 1,2 mm 0,181 Kg/m
    Aluminium Round Pipe   22 mm x 1,2 mm 0,212 Kg/m
    Aluminium Round Pipe 3/8″ 9,5 mm x 1,3 mm 0,090 Kg/m
    Aluminium Round Pipe   11 mm x 1,3 mm 0,107 Kg/m
    Aluminium Round Pipe   16 mm x 1,5 mm 0,184 Kg/m
    Aluminium Round Pipe   19 mm x 1,5 mm 0,223 Kg/m
    Aluminium Round Pipe   25 mm x 1,5 mm 0,299 Kg/m
    Aluminium Round Pipe   28 mm x 1,5 mm 0,337 Kg/m
    Aluminium Round Pipe   32 mm x 1,5 mm 0,388 Kg/m
    Aluminium Round Pipe   35 mm x 1,5 mm 0,426 Kg/m
    Aluminium Round Pipe   38 mm x 1,5 mm 0,464 Kg/m
    Aluminium Round Pipe   45 mm x 1,5 mm 0,553 Kg/m
    Aluminium Round Pipe   50 mm x 1,5 mm 0,617 Kg/m
    Aluminium Round Pipe   60 mm x 1,5 mm 0,744 Kg/m
    Aluminium Round Pipe   40 mm x 1,7 mm 0,552 Kg/m
    Aluminium Round Pipe   20 mm x 2 mm 0,305 Kg/m
    Aluminium Round Pipe   25 mm x 2 mm 0,390 Kg/m
    Aluminium Round Pipe   30 mm x 2 mm 0,475 Kg/m
    Aluminium Round Pipe   40 mm x 2 mm 0,645 Kg/m
    Aluminium Round Pipe   50 mm x 2 mm 0,814 Kg/m
    Aluminium Round Pipe   50 mm x 2 mm 0,814 Kg/m
    Aluminium Round Pipe   70 mm x 2 mm 1,154 Kg/m
    Aluminium Round Pipe   90 mm x 2 mm 1,493 Kg/m
    Aluminium Round Pipe   114 mm x 2 mm 1,900 Kg/m
    Aluminium Round Pipe 4″1⁄2 114,3 mm x 2 mm 1,905 Kg/m
    Aluminium Round Pipe   30 mm x 2,5 mm 0,583 Kg/m
    Aluminium Round Pipe   60 mm x 2,5 mm 1,219 Kg/m
    Aluminium Round Pipe   45 mm x 3 mm 1,069 Kg/m
    Aluminium Round Pipe   60 mm x 3 mm 1,450 Kg/m
    Aluminium Round Pipe   70 mm x 3 mm 1,705 Kg/m
    Aluminium Round Pipe   35 mm x 4 mm 1,052 Kg/m
    Aluminium Round Pipe   90 mm x 5 mm 3,605 Kg/m
    Aluminium Square Pipe Weight Chart:

    dsadasdas

    Product Side   Thickness Weight
    Aluminium Square Pipe 16 mm x 0,7 mm 0,116 Kg/m
    Aluminium Square Pipe 16 mm x 0,9 mm 0,147 Kg/m
    Aluminium Square Pipe 19 mm x 0,9 mm 0,176 Kg/m
    Aluminium Square Pipe 12,5 mm x 1 mm 0,124 Kg/m
    Aluminium Square Pipe 16 mm x 1 mm 0,162 Kg/m
    Aluminium Square Pipe 19 mm x 1 mm 0,194 Kg/m
    Aluminium Square Pipe 20 mm x 1 mm 0,205 Kg/m
    Aluminium Square Pipe 25 mm x 1 mm 0,259 Kg/m
    Aluminium Square Pipe 12 mm x 1,5 mm 0,170 Kg/m
    Aluminium Square Pipe 20 mm x 1,5 mm 0,300 Kg/m
    Aluminium Square Pipe 30 mm x 1,5 mm 0,462 Kg/m
    Aluminium Square Pipe 40 mm x 1,5 mm 0,624 Kg/m
    Aluminium Square Pipe 50 mm x 1,5 mm 0,786 Kg/m
    Aluminium Square Pipe 20 mm x 2 mm 0,389 Kg/m
    Aluminium Square Pipe 40 mm x 2 mm 0,821 Kg/m
    Aluminium Square Pipe 60 mm x 2 mm 1,253 Kg/m
    Aluminium Square Pipe 65 mm x 2 mm 1,361 Kg/m
    Aluminium Square Pipe 100 mm x 2 mm 2,117 Kg/m

    Theorical Weights Table
    The values presented on this table are theorical and they should be confirmed if you make an order.
    We, may alter this table without notice.
    All orders based on this table will be pending until confirmation by our commercial services.

    Aluminium Rectangular Pipe Weight Chart:

    dsadasdas

    Product A   B   Thickness Weight
    Aluminium Rectangular Pipe 30 mm x 15 mm x 1,5 mm 0,340 Kg/m
    Aluminium Rectangular Pipe 40 mm x 20 mm x 1,5 mm 0,462 Kg/m
    Aluminium Rectangular Pipe 50 mm x 25 mm x 1,5 mm 0,583 Kg/m
    Aluminium Rectangular Pipe 60 mm x 40 mm x 2 mm 1,037 Kg/m
    Aluminium Rectangular Pipe 65 mm x 30 mm x 1,5 mm 0,745 Kg/m
    Aluminium Rectangular Pipe 80 mm x 30 mm x 1,5 mm 0,867 Kg/m
    Aluminium Rectangular Pipe 80 mm x 20 mm x 2 mm 1,037 Kg/m
    Aluminium Rectangular Pipe 85 mm x 30 mm x 1,8 mm 1,083 Kg/m
    Aluminium Rectangular Pipe 100 mm x 50 mm x 4 mm 3,067 Kg/m



    Standard Specification of Aluminium Pipe:
    Specification Alloy Temper Company
    Europe
    EN 2089/2395 2014A T6(T62)/T4(T42)
    EN 2087/2088 2014A clad T6(T62)/T4(T42)
    EN 4101 2024 T4
    EN 2090/2091/2703/4001 2024 clad cmq T3/T4/T4(T42)/T351
    EN 3474/3997/3998/3999 2024 cmq T81/T3/T4(T42)/T351
    EN 2694/EN 3341 6061 T6(T62)/T4(T42)
    EN 4449/4450 7050 T76/F(T762)
    EN 2696 7075 T6(T62)
    EN 2092 7075 clad T6(T62)
    EN 2802/3333 7475 T761/F(T762)
    EN 2803/3332 7475 clad T761/F(T762)
    France
    AIR 9048.010/.030/ 2014 F(T42)/F(T62)/T4/
    .020/.040/.050 2014 T6/T451
    AIR 9048.060/.080/.070/.090 2014 clad F(T42)/F(T62)/T4/T6
    AIR 9048.100/.110/.120 2024
    AIR 9048.130/.140 2024 clad F(T42)/T3
    AIR 9048.150 2618A H28(T62)
    AIR 9048.170 2618A clad H28(T62)
    AIR 9048.190/.200 5086 O, H111/H22, H32
    AIR 9048.210/.220/.230/.240 6061 O, H111(T42)/T4/ O, H111(T62)/T6
    AIR 9048.260/.270 7075 T6/T76
    AIR 9048.280 7075 clad T6
    AIR 9048.290 7475 T76 Boeing
    Germany
    W.-Nr. 3.1254 2014A T4, T6
    W.-Nr. 3.1354 2024 O(T42), T3
    W.-Nr. 3.1364 2024 clad O(T42), T3
    W.-Nr. 3.3214 6061 O(T62), T6
    W.-Nr. 3.4364 7075 T6
    W.-Nr. 3.4374 7075 clad O(T62), T6
    W.-Nr. 3.4377 7475 clad T76
    UK
    BS L16/17 1200 H4/O
    BS L156/157/158*/159* 2014A
    158*/159* 2014A clad (T42)(T62) BAE Systems
    BS L163/164/165 2014A clad T3/F(T42), T4/T6
    BS L166*/167* 2014A clad F(T42), T4/T6
    BS L109/110 2024 clad T3/F(T42)
    DTD5070 2618A clad T6
    BS L59/60/61 3103 H6/H2/O
    BS L80/81 5251 O/H6
    BS L113 6082 T4, T6
    BS L88 7075 clad T6
    USA
    AMS QQ-A-250/3 2014 clad O, T4, T6
    AMS QQ-A-250/4 2024 O, T3
    AMS 4037 2024 T3
    AMS QQ-A-250/5 2024 clad O, T3
    AMS 4041 2024 clad T3
    AMS QQ-A-250/30 2219 O(T62), T31(T81), T37(T87)
    AMS QQ-A-250/2 3003 O, H14
    AMS 4347 6013 T4
    AMS 4216 6013 T6
    AMS 4025/4026/4027 6061 O, F, T4, T42, T45, T6, T62, T651
    AMS QQ-A-250/12 7075 O, T6, T73
    AMS QQ-A-250/24 7075 T76
    AMS QQ-A-250/13 7075 clad O, T6, T73
    AMS QQ-A-250/26 7075 clad with 7011 T76
    AMS QQ-A-250/25 7075 clad with 7072 T76



    European Standard BS (OLD) USA (AA) GERMANY (DIN) ISO IS Canadian
    EN AW-1050 A 1E 1050 Al99.5 Al99.5 19500, 19501 1 S
    EN AW-1070 A 1070 Al-99.7 Al-99.7 19700
    EN AW-1100 IC 1100 Al-99.0 Al-99.0 19000 2 S
    EN AW-2011 FC1 2011 AlCuBiPb AlCu6BiPb 28S
    EN AW-2014 HE15 2014 AlCuSiMn AlCu4SiMg 24345 B26S
    EN AW-2024 2024 AlCuMg2 AlCu4Mg1 24 S
    EN AW-3003 N3 3003 AlMnCu AlMn1Cu 31000 3 S
    EN AW-3103 3103 AlMn1
    EN AW-6101A E91E 6101 E AlMgSi 0.5 E AlMgSi(A) 63401 D50S
    EN AW-6005 6005 AlMgSi0.7 AlSiMg 62400 C51S
    EN AW-6351 HE30 6351 AlMgSi1 AlSiMg0.5Mn 64430 B51S
    EN AW-6060 6060 AlMgSi 0.5 AlMgSi
    EN AW-6061 HE20 6061 AlMgSiCu AlMg1SiCu 65032 65S
    EN AW-6063 HE9 6063 AlMgSi0.5 AlMg0.7Si 63400 50S
    EN AW-6082 HE30 6351 AlMgSi1 AlSi1MgMn 64430 B51S



    Aluminium Pipe Equivalent Grades:
    China
    U.S.A.
    BRITAIN
    CANADA GERMANY
    RUSSIA
    I.S.O.
    FRENCH
    New IS Old IS (A.A.)
    (B.S.)
      (DIN)
    19501 1E 1050(E.C.) 1E C 1S E-Al 99.5 Al-99.5 1050A
    19500 1B 1050 1B 1S A-99.5
    19600 1060 Al-99.7
    19700 1070 Al-99.7 Al-99.8
    19800 1A 1080 1A Al-99.0 1200
    19000 1C 1100 1C 2S Al-99.0 AD Al-Cu-6 Bi Pb 2011
    2011 FC1 28S Al-Cu-Bi-Pb
    24345 H15 2014 H15 B26S Al-Cu-Si AK Al-Cu-4Mg Si
    24534 H14 2017 H14 17S/16S D1 Al-Cu-4Mg 1 2024
    2024 24S Al-Cu-Mg.2 AlCu-4PbMg 2030
    2030 Al-Cu-Mg-Pb Al-Cu2-Mg1.5-Ni 2618
    2618 2618 A-Mn 1 3003
    31000 N3 3003 N3 3S Al-Mn A-Mn Al Mn 1 Mg 1 3004
    3004   Al-Mn.1-Mg.1   Al Mn 1 Mg 0.50 3005
    3005   Al-Mn.1-Mg.0.50   Al-Si5 4043
    43000 N21 4043 N21 33S Al-Si-5 AK
    46000 N2 4047 N2 35S A-Mg-1
    51000 5005 B57S Al-Mg-2 5251
        5051 5251   Al-Mg.2 Mn.0.30   A-Mg-2.5 5051
    52000 N4 5052 N4 M57S Al-Mg.2 A-Mg A-Mg-4
    53000 N5 5086 N5 54S A-Mg-3 Al-Mg-4.5 Mn 5083
    54300 N8 5083 N8 D54S Al-Mg-4.5 Mn Al-Mg.5 5356
    55000 N6 5056 N6 A56S Al-Mg.5 Al-Mg.3-Mn 5454
        5454 5454   Al-Mg.2.7-Mn Al.Mg.3 5754
        5754     Al-Mg.3   Al-Mg-1Si Cu
    65032 H20 6061 H20 65S Al-Mg-Si Cu Al-Mg-Si
    63400 H9 6063 H9 50S Al-Mg-Si 0.5 Al-Si-1 Mg 6081
    64430 H30 6351 H30 B51S Al-Mg-Si 1 AV Al-Si-1 Mg Mn 6082
        6082 6082   Al-Mg-Si 1
    64423 H11 6066 H11 C62S
    62400 6005 C51S
    63401 91E 6101 91E D50S E.Al.Mg.Si 0.5
    64401 6201
    7020 7020   7020
    74530 7039 D74S   3004
    7075 DTD-5124 75S   Al-Zn 6 Mg Cu 7075
    40800   8011       Al-Fe-Si 8011



    Aluminium Pipe Chemical Composition:
    ALUMINIUM Alloy %
    Si
    %
    Mg
    %
    Mn
    %
    Cu
    %
    Fe
    %
    Cr
    %
    Zn
    %
    Ti
    %
    Others
    %
    Al
    EN AW-1050 A 0.25
    Max
    0.05
    Max
    0.05
    Max
    0.05
    Max
    0.40
    Max
    0.07
    Max
    0.05
    Max
    99.5 Min
    EN AW-1070 A 0.20
    Max
    0.03
    Max
    0.03
    Max
    0.03
    Max
    0.25
    Max
    0.07
    Max
    0.03
    Max
    99.7 Min
    EN AW-1100 Si+Fe 0.95 Max 0.05 Max 0.05 – 0.20 0.10 Max 0.05 Max 99.0 Min
    EN AW-2011 0.40 Max 5.00 – 6.00 0.70 Max 0.30 Max Bi : 0.20 – 0.60
    Pb : 0.20 – 0.60
    Remainder
    EN AW-2014 0.50 – 1.20 0.20 – 0.80 0.40 – 1.20 3.90 – 5.00 0.70 Max 0.10 Max 0.25 Max 0.15 Max Remainder
    EN AW-2024 0.50 Max 1.20 -1.80 0.30 – 0.90 3.80 – 4.90 0.50 Max 0.10 Max 0.25 Max 0.15 Max 0.15 Max Remainder
    EN AW-3003 0.60 Max 1.00 – 1.50 0.05 – 0.20 0.70 Max 0.10 Max 0.15 Max Remainder
    EN AW-3103 0.50 Max 0.30 Max 0.90 – 1.50 0.10 Max 0.70 Max 0.10 Max 0.20 Max 0.10 Max Remainder
    EN AW-6101A 0.30 – 0.7 0.40 – 0.90 0.03 Max 0.05 Max 0.40 Max 0.10 Max Remainder
    EN AW-6005 0.60 – 0.90 0.40 – 0.60 0.10 Max 0.10 Max 0.35 Max 0.10 Max 0.10 Max 0.10 Max Remainder
    EN AW-6351 0.70 – 1.30 0.40 – 0.80 0.40 – 0.80 0.10 Max 0.50 Max 0.20 Max 0.20 Max 0.15 Max Remainder
    EN AW-6060 0.30 – 0.60 0.35 – 0.60 0.10 Max 0.10 Max 0.10 – 0.30 0.05 Max 0.15 Max 0.10 Max Remainder
    EN AW-6061 0.40 – 0.80 0.80 – 1.20 0.15 Max 0.15 – 0.40 0.70 Max 0.04 – 0.35 0.25 Max 0.15 Max Remainder
    EN AW-6063 0.20 – 0.60 0.45 – 0.90 0.10 Max 0.10 Max 0.35 Max 0.10 Max 0.10 Max 0.10 Max Remainder
    EN AW-6082 0.70 – 1.30 0.60 -1.20 0.40 – 1.00 0.10 Max 0.50 Max 0.25 Max 0.20 Max 0.10 Max Remainder



    Aluminium Pipe Mechanical Properties:
    Alloy Temper UTS (Mpa) Yield Strength (Mpa) Elongation (%)
      Minimum Maximum Minimum Maximum A 50mm (Minimum)
    EN AW-1050 A F 60 20 23
    O 60 95 20 23
    EN AW-1070 A F 60 20 23
    EN AW-1100 O 75 110 25
    EN AW-2011 T4 275 125 12
    T6 310 230 6
    EN AW-2014 O 250 135 10
    T4 370 230 11
    T6 415 370 5
    EN AW-2024 O 250 150 10
    T3,T3510,T3511 395 290 6
    T8,T8510,T8511 455 380 4
    EN AW-3003 F 95 35 20
    O 95 135 35 20
    EN AW-3103 F 95 35 20
    O 95 135 35 20
    EN AW-6101A T6 200 170 8
    EN AW-6005 T4 180 90 13
    T6 270 225 6
    EN AW-6351 O 160 110 12
    T4 205 110 12
    T6 290 250 6
    EN AW-6060 T4 120 60 14 12
    T5 160 120 6
    T6 190 150 6
    T64 180 120 10
    T66 215 160 6
    EN AW-6061 O 150 110 14
    T4 180 110 13
    T6 260 240 6
    EN AW-6063 O 130 16
    T4 130 65 12
    T5 175 130 6
    T6 215 170 6
    T66 245 200 6
    EN AW-6082 O 160 110 12
    T4 205 110 12
    T5 270 230 6
    T6 290 250 6

    Aluminum Alloy Heat Treatment Temper Designations for Pipes

    Basic Aluminum Heat Treatment Designations

    • F As Fabricated
    • O Annealed
    • H Strain Hardened
    • W Solution Heat Treated
    • T Solution Heat Treated

    Heat Treating T Temper Codes for Aluminium Pipe

    • T1 – Cooled from an elevated temperature shaping process and naturally aged to a substantially stable condition.
    • T2 – Cooled from an elevated temperature shaping process, cold worked, and naturally aged to a substantially stable condition.
    • T3 – Solution heat treated, cold worked, and naturally aged to a substantially stable condition.
    • T4 – Solution heat treated, and naturally aged to a substantially stable condition.
    • T5 – Cooled from an elevated temperature shaping process then artificially aged.
    • T6 – Solution heat treated then artificially aged.
    • T7 – Solution heat treated then overaged/stabilized.
    • T8 – Solution heat treated, cold worked, then artificially aged.
    • T9 – Solution heat treated, artificially aged, then cold worked.
    • T10 – Cooled from an elevated temperature shaping process, cold worked, then artificially aged.

    Additional digits may be used after the first T temper digit to indicate subsequent stress relieving by processes such as stretching, compressing, or a combination.

    H Temper Strain Hardening Codes for Aluminium Pipe

    • H1 – Strain hardened only
    • H2 – Strain hardened and partially annealed
    • H3 – Strain hardened and stabilized
    • H4 – Strain hardened and lacquered or painted. This assumes that thermal affects from the coating process affect the strain hardening; seldom encountered.

    Application of Aluminium Pipe

    Aluminium Pipe is the most widely used form of Industrial Aluminium. Aluminium Pipe find applications in various industries such as manufacturing cans and packages, transportation, home appliances, building and construction.

    dsadasdas

    Aluminium Pipe Marking & Packaging

    Packing Details: Standard export seaworthy package.
    Delivery Details: About 7~10 days after receive the advance payment.


  • Previous:
  • Next:

  • Related Products
