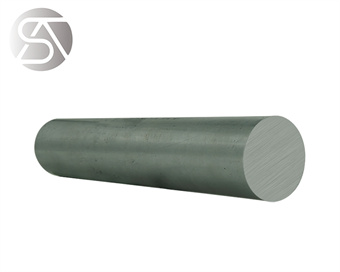

1050 Aluminium Round Bar

Short Description:


  • Standard: ASTM B221
  • Temper: O, H12, H14, H16, H18
  • Diameter: 0.1-600mm
  • Surface: Bright, Polish & Black
  • Product Detail

    FAQ

    Product Tags

    1050A Aluminium alloy Rod is one of the most popular grades of Aluminium used today. 1050A Aluminium Round Bar has excellent corrosion resistance, high ductility, a moderate strength and a highly reflective finish. Aluminium 1050 Bar is most suitable of use as food industrial containers, architectural flashings, cable sheathings, lamp reflectors and chemical process plant equipment.

    1050 Aluminium Round Bar ASTM B221, EN573, and EN485 international standards.
    EN AW1050A BS1470: 1050 AA1050A A91050 UNS A91050 BS -1B / 5L36 A1050 DIN 3.0255 – Al99.5 UNI 900 Rod



    Specifications of 1050 Aluminium Round Bar:
    Aluminium Alloy ASTM B221 1050
    Standard  ASTM, ASME, AMS, ASTM B221M, GB/T 3191, JIS H4040, ASTM B221, AMS QQ-A-200/9
    Aluminium 1050 Round Bar Temper O, H12, H14, H16, H18, H22, H24, H26, H32, H112
    Aluminium 1050 Bar Form 1050 Aluminium Square, Round, Hex, Flat, Half Round, Oval, Angle, Rectangular, Wire in Black & Bright Finish
    Aluminium 1050 Round Bar Diameter:0.1-600mm,etc
    Aluminium 1050 Hexagonal Bar Diameter:0.1-600mm,etc
    Aluminium 1050 Angle Bar Size:0.5mm*40mm*40mm-20mm*400mm*400mm
    Aluminium 1050 Flat Bar Thickness:0.1-600mm,etc
    Width:1-2500mm,etc
    Aluminium 1050 Square Bar Size:1mm*1mm-800mm*800mm, etc
    Aluminium 1050 Round Bar Length 1-12m, Random, Fix & Cut Length or as per clients’ requirement
    Aluminium 1050 Bar Bright, Polish & Black
    Aluminium 1050 Bars Surface Anodized, Polished, hair line, brush,
    Mill finished, Bright finish, paper interleaved
    Aluminium 1050 Solid Round Bar Delivery Time 10-30 days after receiving the prepayment
    Aluminium 1050 Round Bar Packaging Details Export standard package: bundled wooden box, suit for all kinds of transport or be required.
    ASTM B221 Alloy 1050 Round Bar Outer packing Export standard, wooden pallet
    We Export Aluminium 1050 Round Bar to Singapore, Indonesia, Ukraine, Korea, Thailand, Vietnam, Saudi Arabia, Brazil, Spain, Canada, USA, Egypt, Iran, China, Kuwait, Dubai, Oman, Kuwait, Peru, Mexico, Iraq, Russia, Malaysia, etc.



    Types of 1050 Aluminium Round Bar Manufacturer in China:

    6mm 1050 Aluminum Round Bar     1050 Aluminium Round Bar

    1050 Aluminium Threaded Rods stockholder in China, 1050 Aluminium Forged Round Bars wholesaler in China, Aluminium EN AW 1050 Cold Finish Round Bar importers in China, 1050 Aluminium Hexagonal Rods Cut To Size At Best Price



    Standard Dimensions of 1050 Aluminium Round Bar:
    • 6 mm 1050 Aluminum Round Bar
    • 8 mm 1050 Aluminum Round Bar
    • 9 mm 1050 Aluminum Round Bar
    • 10 mm 1050 Aluminum Round Bar
    • 12 mm 1050 Aluminum Round Bar
    • 12.7 mm 1050 Aluminum Round Bar
    • 14 mm 1050 Aluminum Round Bar
    • 16 mm 1050 Aluminum Round Bar
    • 18 mm 1050 Aluminum Round Bar
    • 19.05 mm 1050 Aluminum Round Bar
    • 20 mm 1050 Aluminum Round Bar
    • 22 mm 1050 Aluminum Round Bar
    • 24 mm 1050 Aluminum Round Bar
    • 25.4 mm 1050 Aluminum Round Bar
    • 27 mm 1050 Aluminum Round Bar
    • 30 mm 1050 Aluminum Round Bar
    • 31.75 mm 1050 Aluminum Round Bar
    • 33 mm 1050 Aluminum Round Bar
    • 36 mm 1050 Aluminum Round Bar
    • 38.1 mm 1050 Aluminum Round Bar
    • 39 mm 1050 Aluminum Round Bar
    • 42 mm 1050 Aluminum Round Bar
    • 45 mm 1050 Aluminum Round Bar
    • 50 mm 1050 Aluminum Round Bar
    • 55 mm 1050 Aluminum Round Bar
    • 60 mm 1050 Aluminum Round Bar
    • 65 mm 1050 Aluminum Round Bar
    • 70 mm 1050 Aluminum Round Bar
    • 75 mm 1050 Aluminum Round Bar
    • 80 mm 1050 Aluminum Round Bar
    • 90 mm 1050 Aluminum Round Bar
    • 100 mm 1050 Aluminum Round Bar
    • 110 mm 1050 Aluminum Round Bar
    • 120 mm 1050 Aluminum Round Bar
    • 130 mm 1050 Aluminum Round Bar
    • 140 mm 1050 Aluminum Round Bar
    • 150 mm 1050 Aluminum Round Bar
    • 160 mm 1050 Aluminum Round Bar
    • 165 mm 1050 Aluminum Round Bar
    • 180 mm 1050 Aluminum Round Bar
    • 190.5 mm 1050 Aluminum Round Bar
    • 210 mm 1050 Aluminum Round Bar
    • 228 mm 1050 Aluminum Round Bar
    • 250 mm 1050 Aluminum Round Bar
    • 305 mm 1050 Aluminum Round Bar

    Aluminium 1050 Round Bar Manufacturers, Cold Drawn 1050 Aluminium Bar, Cold Forming 1050 Aluminium Material Rod, Cold Rolled 1050 Aluminium Round Rod, 1050 Aluminum Alloy Hollow Bar, UNS A96082 Round Bar Manufacturer in China, EN 485-2 1050 Aluminium Bars & Rods stockist, 1050 Aluminium Round Bar Price in China



    Standard Specification of 1050 Aluminium Round Bar

    Standards and specifications by country:
    China
    U.S.A.
    BRITAIN
    CANADA GERMANY
    RUSSIA
    I.S.O.
    FRENCH
    New IS Old IS (A.A.)
    (B.S.)
      (DIN)
    19501 1E 1050(E.C.) 1E C 1S E-Al 99.5 Al-99.5 1050A
    19500 1B 1050 1B 1S A-99.5



    1050 Aluminium Round Bar Equivalent Grades:
    European Standard BS (OLD) USA (AA) GERMANY (DIN) ISO IS Canadian
    EN AW-1050 A 1E 1050 Al99.5 Al99.5 19500, 19501 1 S



    Relevant Grades of 1050 Aluminium Bars

    Common Aluminium 1050 Round Bar Grades

    • Aluminium Round Bar
    • Aluminium Cast Round Bar
    • Aluminium Retangular Bar
    • Aluminium Square Bar
    • Aluminium Hex Bar
    • Aluminium Rod
    • Aluminum Billets
    • Aluminum Half Oval Bars
    • Aluminium Round Bar Grade 24345
    • Aluminium Round Bar Grade 24534
    • Aluminium Round Bar Grade 65032
    • Aluminium Round Bar Grade 63400
    • Aluminium Round Bar Grade 64430
    • Aluminium Flat Bar Grade 63401
    • Aluminium Round Bar Grade 74530
    • 1100 Aluminum Round Bar
    • 1050 Aluminum Round Bar
    • Aluminium 2014 T6 Round Bar
    • 2017-T4 Aluminum Round Bar
    • 2024-T351 Aluminum Round Bar
    • 5083 Aluminum Round Bar
    • Aluminium 6061 T6 Round Bar
    • Aluminium 6082 T6 Round Bar
    • Aluminium 6351 T6 Round Bar
    • 6063 Aluminium Round Bar
    • 6101 Aluminum Round Bar
    • Aluminium Alloy 6066 Round Bar
    • 6005 Aluminum Round Bar
    • Aluminium 7075 T6 Round Bar
    • 7050 Aluminum Round Bar
    • 1070 Aluminium Round Bar
    • 1370 Aluminium Round Bar
    • 1060 Aluminium Round Bar
    • 1050 Aluminium Round Bar
    • 1350 Aluminium Round Bar
    • 1145 Aluminium Round Bar
    • 1035 Aluminium Round Bar
    • 1A30 Aluminium Round Bar
    • 1100 Aluminium Round Bar
    • 1200 Aluminium Round Bar
    • 1235 Aluminium Round Bar
    • 1230 Aluminium Round Bar
    • 1435 Aluminium Round Bar
    • 1040 Aluminium Round Bar
    • 1045 Aluminium Round Bar
    • 1345 Aluminium Round Bar
    • 1260 Aluminium Round Bar
    • 1065 Aluminium Round Bar
    • 1080 Aluminium Round Bar
    • 1085 Aluminium Round Bar
    • 1185 Aluminium Round Bar
    • 1285 Aluminium Round Bar
    • 1188 Aluminium Round Bar
    • 1090 Aluminium Round Bar
    • 1193 Aluminium Round Bar
    • 1199 Aluminium Round Bar
    • 2004 Aluminium Round Bar
    • 2011 Aluminium Round Bar
    • 2014 Aluminium Round Bar
    • 2214 Aluminium Round Bar



    1050 Aluminium Round Bar Weight Chart:

    dsadasdas

    Product Diameter Weight
    1050 Aluminium Round Bar 6 mm 0,076 Kg/m
    1050 Aluminium Round Bar 7 mm 0,104 Kg/m
    1050 Aluminium Round Bar 8 mm 0,136 Kg/m
    1050 Aluminium Round Bar 9 mm 0,172 Kg/m
    1050 Aluminium Round Bar 9,5 mm 0,191 Kg/m
    1050 Aluminium Round Bar 10 mm 0,212 Kg/m
    1050 Aluminium Round Bar 11 mm 0,257 Kg/m
    1050 Aluminium Round Bar 12 mm 0,305 Kg/m
    1050 Aluminium Round Bar 12,5 mm 0,331 Kg/m
    1050 Aluminium Round Bar 13 mm 0,358 Kg/m
    1050 Aluminium Round Bar 14 mm 0,416 Kg/m
    1050 Aluminium Round Bar 16 mm 0,543 Kg/m
    1050 Aluminium Round Bar 16,5 mm 0,577 Kg/m
    1050 Aluminium Round Bar 18 mm 0,687 Kg/m
    1050 Aluminium Round Bar 19 mm 0,766 Kg/m
    1050 Aluminium Round Bar 20 mm 0,848 Kg/m
    1050 Aluminium Round Bar 22 mm 1,026 Kg/m
    1050 Aluminium Round Bar 25 mm 1,325 Kg/m
    1050 Aluminium Round Bar 28 mm 1,663 Kg/m
    1050 Aluminium Round Bar 30 mm 1,909 Kg/m
    1050 Aluminium Round Bar 31 mm 2,038 Kg/m
    1050 Aluminium Round Bar 32 mm 2,171 Kg/m
    1050 Aluminium Round Bar 35 mm 2,598 Kg/m
    1050 Aluminium Round Bar 38 mm 3,062 Kg/m
    1050 Aluminium Round Bar 40 mm 3,393 Kg/m
    1050 Aluminium Round Bar 45 mm 4,294 Kg/m
    1050 Aluminium Round Bar 50 mm 5,301 Kg/m
    1050 Aluminium Round Bar 55 mm 6,415 Kg/m
    1050 Aluminium Round Bar 60 mm 7,634 Kg/m
    1050 Aluminium Round Bar 65 mm 8,959 Kg/m
    1050 Aluminium Round Bar 70 mm 10,391 Kg/m
    1050 Aluminium Round Bar 75 mm 11,928 Kg/m
    1050 Aluminium Round Bar 80 mm 13,572 Kg/m
    1050 Aluminium Round Bar 90 mm 17,177 Kg/m
    1050 Aluminium Round Bar 100 mm 21,206 Kg/m
    1050 Aluminium Round Bar 105 mm 23,379 Kg/m
    1050 Aluminium Round Bar 110 mm 25,659 Kg/m
    1050 Aluminium Round Bar 120 mm 30,536 Kg/m
    1050 Aluminium Round Bar 127 mm 34,203 Kg/m
    1050 Aluminium Round Bar 130 mm 35,838 Kg/m
    1050 Aluminium Round Bar 140 mm 41,563 Kg/m
    1050 Aluminium Round Bar 150 mm 47,713 Kg/m
    1050 Aluminium Round Bar 180 mm 68,707 Kg/m
    1050 Aluminium Round Bar 200 mm 84,823 Kg/m

    Theorical Weights Table
    The values presented on this table are theorical and they should be confirmed if you make an order.

    1050 Aluminium Square Bar Weight Chart:

    dsadasdas

    Product Side Weight
    Aluminium Square Bar 10 mm 0,270 Kg/m
    Aluminium Square Bar 15 mm 0,608 Kg/m
    Aluminium Square Bar 16 mm 0,691 Kg/m
    Aluminium Square Bar 20 mm 1,080 Kg/m
    Aluminium Square Bar 25 mm 1,688 Kg/m
    Aluminium Square Bar 35 mm 3,308 Kg/m
    Aluminium Square Bar 45 mm 5,468 Kg/m
    Aluminium Square Bar 60 mm 9,720 Kg/m
    Aluminium Square Bar 100 mm 27,000 Kg/m



    1050 Aluminium Rectangular Bar Weight Chart:

    dsadasdas

    Product Width   Thickness Weight
    1050 Aluminium Rectangular Bar 20 mm x 2 mm 0,108 Kg/m
    1050 Aluminium Rectangular Bar 15 mm x 3 mm 0,122 Kg/m
    1050 Aluminium Rectangular Bar 20 mm x 3 mm 0,162 Kg/m
    1050 Aluminium Rectangular Bar 25 mm x 3 mm 0,203 Kg/m
    1050 Aluminium Rectangular Bar 30 mm x 3 mm 0,243 Kg/m
    1050 Aluminium Rectangular Bar 40 mm x 3 mm 0,324 Kg/m
    1050 Aluminium Rectangular Bar 15 mm x 4 mm 0,162 Kg/m
    1050 Aluminium Rectangular Bar 20 mm x 4 mm 0,216 Kg/m
    1050 Aluminium Rectangular Bar 25 mm x 4 mm 0,270 Kg/m
    1050 Aluminium Rectangular Bar 30 mm x 4 mm 0,324 Kg/m
    1050 Aluminium Rectangular Bar 15 mm x 5 mm 0,203 Kg/m
    1050 Aluminium Rectangular Bar 20 mm x 5 mm 0,270 Kg/m
    1050 Aluminium Rectangular Bar 25 mm x 5 mm 0,338 Kg/m
    1050 Aluminium Rectangular Bar 30 mm x 5 mm 0,405 Kg/m
    1050 Aluminium Rectangular Bar 40 mm x 5 mm 0,540 Kg/m
    1050 Aluminium Rectangular Bar 50 mm x 5 mm 0,675 Kg/m
    1050 Aluminium Rectangular Bar 30 mm x 6 mm 0,486 Kg/m
    1050 Aluminium Rectangular Bar 40 mm x 6 mm 0,648 Kg/m
    1050 Aluminium Rectangular Bar 60 mm x 6 mm 0,972 Kg/m
    1050 Aluminium Rectangular Bar 20 mm x 8 mm 0,432 Kg/m
    1050 Aluminium Rectangular Bar 25 mm x 8 mm 0,540 Kg/m
    1050 Aluminium Rectangular Bar 30 mm x 8 mm 0,648 Kg/m
    1050 Aluminium Rectangular Bar 40 mm x 8 mm 0,864 Kg/m
    1050 Aluminium Rectangular Bar 50 mm x 8 mm 1,080 Kg/m
    1050 Aluminium Rectangular Bar 55 mm x 8 mm 1,188 Kg/m
    1050 Aluminium Rectangular Bar 60 mm x 8 mm 1,296 Kg/m
    1050 Aluminium Rectangular Bar 80 mm x 8 mm 1,728 Kg/m
    1050 Aluminium Rectangular Bar 100 mm x 8 mm 2,160 Kg/m
    1050 Aluminium Rectangular Bar 20 mm x 10 mm 0,540 Kg/m
    1050 Aluminium Rectangular Bar 25 mm x 10 mm 0,675 Kg/m
    1050 Aluminium Rectangular Bar 30 mm x 10 mm 0,810 Kg/m
    1050 Aluminium Rectangular Bar 40 mm x 10 mm 1,080 Kg/m
    1050 Aluminium Rectangular Bar 50 mm x 10 mm 1,350 Kg/m
    1050 Aluminium Rectangular Bar 60 mm x 10 mm 1,620 Kg/m
    1050 Aluminium Rectangular Bar 80 mm x 10 mm 2,160 Kg/m
    1050 Aluminium Rectangular Bar 100 mm x 10 mm 2,700 Kg/m
    1050 Aluminium Rectangular Bar 200 mm x 20 mm 10,800 Kg/m



    1050 Aluminium Round Bar Chemical Composition:
    Alloy (ISS) Equivalent alloy (A.A) Copper Magnesium Silicon Iron Managanese Others* (Total) Remarks
    Old New U.S.A Min. Max. Min. Max. Min. Max. Min. Max. Max Max. Aluminum 99.0% Min.
    1 B 19500 1050 0.05 0.30 0.4 0.05 0.1 Aluminum 99.5% Min.

    Aluminium 1050 Round Bar Mechanical Properties:
    Alloy Temper UTS (Mpa) Yield Strength (Mpa) Elongation (%)
      Minimum Maximum Minimum Maximum A 50mm (Minimum)
    EN AW-1050 A F 60 20 23
    O 60 95 20 23



    Alloy Designation UK
    Specifications
    US
    Specifications
    US Federal
    Specifications
    European
    Specifications
    Other
    1050A
    A91050
    BS 1B 1050A
    BS 5 L36
        WS 3.0255
    EN AW- Al99.5
    A5 – 1050A

    Aluminum Alloy Heat Treatment Temper Designations for Round Bars

    Basic Aluminum Heat Treatment Designations

    • F As Fabricated
    • O Annealed
    • H Strain Hardened
    • W Solution Heat Treated
    • T Solution Heat Treated

    Heat Treating T Temper Codes for Aluminium 1050 Round Rods

    • T1 – Cooled from an elevated temperature shaping process and naturally aged to a substantially stable condition.
    • T2 – Cooled from an elevated temperature shaping process, cold worked, and naturally aged to a substantially stable condition.
    • T3 – Solution heat treated, cold worked, and naturally aged to a substantially stable condition.
    • T4 – Solution heat treated, and naturally aged to a substantially stable condition.
    • T5 – Cooled from an elevated temperature shaping process then artificially aged.
    • T6 – Solution heat treated then artificially aged.
    • T7 – Solution heat treated then overaged/stabilized.
    • T8 – Solution heat treated, cold worked, then artificially aged.
    • T9 – Solution heat treated, artificially aged, then cold worked.
    • T10 – Cooled from an elevated temperature shaping process, cold worked, then artificially aged.

    Additional digits may be used after the first T temper digit to indicate subsequent stress relieving by processes such as stretching, compressing, or a combination.

    H Temper Strain Hardening Codes for Aluminium 1050 Bars

    • H1 – Strain hardened only
    • H2 – Strain hardened and partially annealed
    • H3 – Strain hardened and stabilized
    • H4 – Strain hardened and lacquered or painted. This assumes that thermal affects from the coating process affect the strain hardening; seldom encountered.

    Application of 1050 Aluminium Rod/ Round Bar

    1050 Aluminium Round Bar is the most widely used form of Industrial Aluminium. 1050 Aluminium Rods find applications in various industries such as manufacturing cans and packages, transportation, home appliances, building and construction.

    dsadasdas


  • Previous:
  • Next:

  • Related Products
